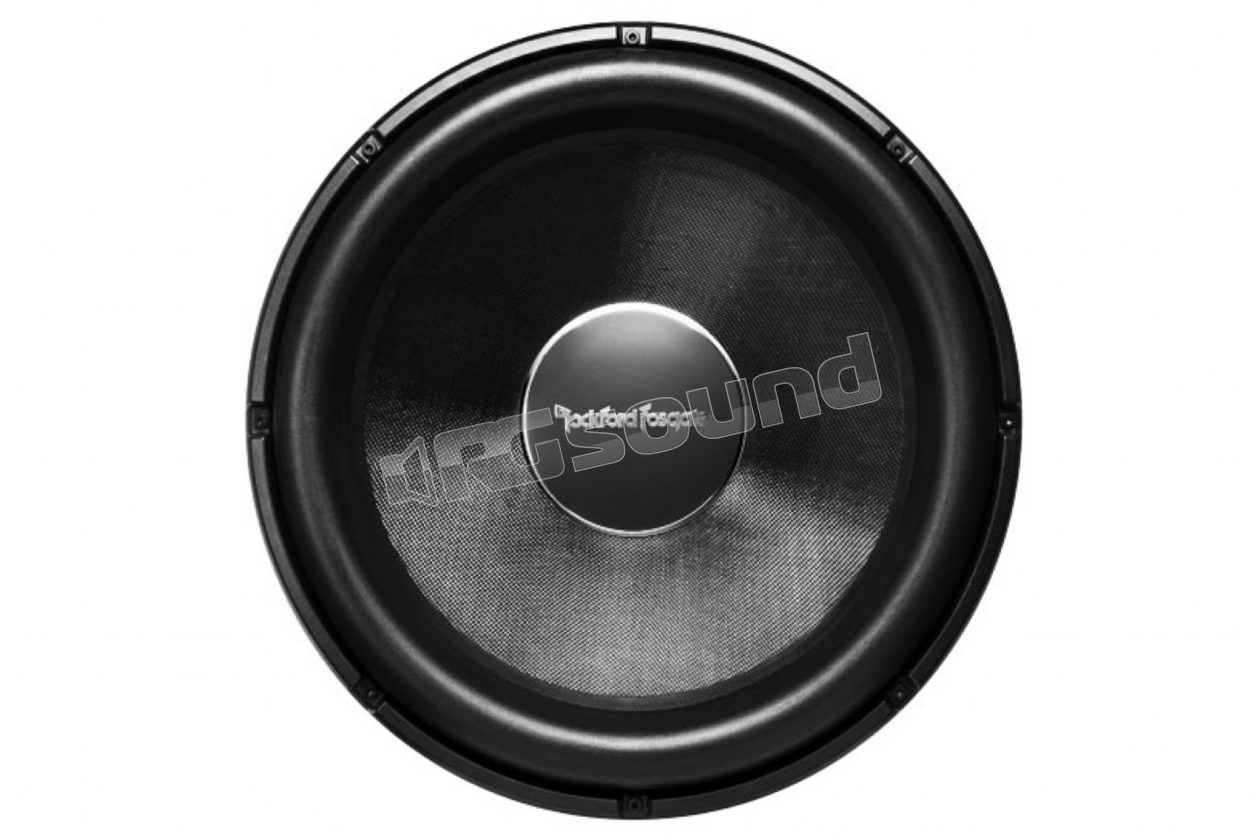

T3S2-19 48 cm competition subwoofer

Rockford Fosgate
Your price:
€ 2349,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Subwoofer
Speaker Size
Other sizes
MAX Power
6000 Watt
RMS Power
3000 Watt
Sensitivity
90 dB
Impedance
2 Ohm
Weight
48,2 Kg
Installation Depth
396 mm
Woofer Material
Cono in fibra di vetro

Rockford Fosgate T3S2-19 subwoofer 48cm (19"), RMS power 3.000W, impedance 2 Ohm. This is the largest and most powerful sub that Rockford Fosgate has ever built!

Thanks to its size the T3S2-19 can rightfully be classified as a "superwoofer" given its enormous cone area. This is also why it is a true novelty for car audio competition enthusiasts who want to amaze everyone with the bass power of the T3S2-19.

The Power 19 "incorporates exclusive technologies, such as the injection-molded Foam Surround, to make the foam strong and resistant like a rubber material. Rockgord also designed a very efficient "/ Pull push" voice coil design with a huge neodymium magnet for a very efficient motor group.

Strengths of the Rockford Fosgate T3S2-19:

Three layer glass fiber/Aramid honeycomb/Glass fiber cone

Aluminum dustcap

Injection molded foam surround with VAST™

Proprietary surround mechanical clamping ring

Dual Nomex progressive spiders with integrated lead wires

Aluminum diecast frame with integrated heat sink fins and venting

Custom push spring insulated 4 AWG terminals

Single layer edge wound aluminum 5" voice coil

Since voice coil design with dual (push/pull) windings

Integrated die cast aluminum trim ring

Dual gap multi-pole Neodymium push/pull motor structure

Features Rockford Fosgate T3S2-19

Size: 48 cm (19")

Nominal Impedance: 2-Ohm

Power Handling (Watts RMS): 3000 Watts RMS

Power Handling 6000 Watts Max

Voice Coil Diameter: 5.0" (127 mm)

Magnet Weight (oz): 115 oz. (3.26 Kg)

Speaker Connector: 4 AWG Compression Terminal

Fs (Hz): 27

Re (Ohms): 1.7

Le (mH): 0.96

Qms: 1.92

Qes: 0.37

Qts: 0.31

Vas (Liters): 103.4

Sd (cm2): 1472

SPL (dB @ 1w/1m): 90

Xmax (mm): 34

Woofer Displacement (in): 0.339 cu. ft. (9.6 Liters)

Cutout Diameter (in): 17.54 in. (445 mm)

Mounting Depth (in): 15.62 in. (396 mm)

Shipping Weight: 106.30 Lbs. (48.2 Kg.)

Manuale utente

n-20160915154453-1230-59701-03-t3-subwoofers-man.pdf

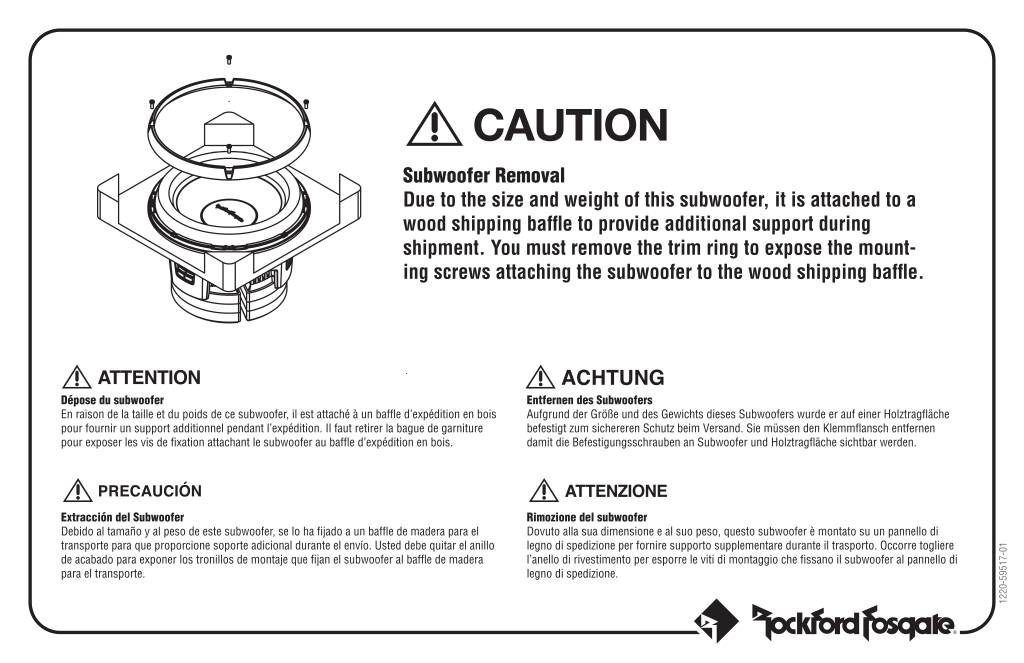

Modo d'uso

n-20160915154453-1220-59517-01-t213-t216-subremoval-adv.pdf
