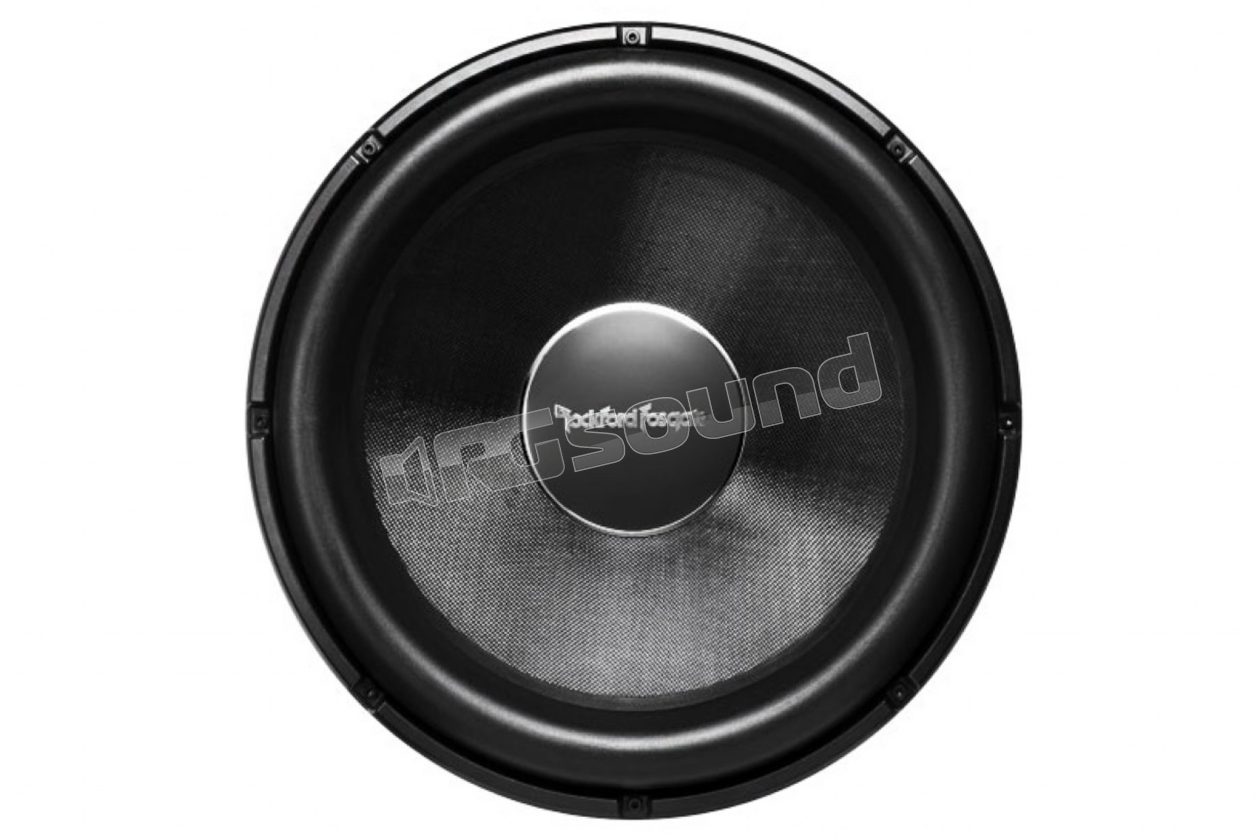

T3S1-19 1 Ohm 48cm competition sub

Rockford Fosgate
Your price:
€ 2255,04
instead of:€ 2349,00
You save € 93,96
Offer valid until 29/11/2026
Price per single item (VAT included)
Black Friday: offers valid until 29 November
Calculating shipping costs to
Type
Subwoofer
Speaker Size
Other sizes
MAX Power
6000 Watt
RMS Power
3000 Watt
Sensitivity
90 dB
Impedance
1 Ohm
Weight
48,2 Kg
Installation Depth
393 mm
Woofer Material
Cono in fibra di vetro

Rockford Fosgate T3S1-19 subwoofer 48cm (19"), RMS power 3,000W, 1 Ohm impedance. This is the largest and most powerful sub that Rockford Fosgate has ever built!

Thanks to its size, the T3S1-19 can rightfully be classified as a "superwoofer" given its enormous cone area. This is also why it's a true first for car audio competition enthusiasts who want to amaze everyone with the bass power of the T3S1-19.

The Power 19" incorporates exclusive technologies, such as the injection molded Foam Surround, to make the foam as strong and resistant as a rubber material. Rockford has also designed a very efficient "push/pull" voice coil design with a huge neodymium magnet for a very efficient motor assembly.

Strengths of the Rockford Fosgate T3S1-19:

Three layer glass fiber/Aramid honeycomb/Glass fiber cone

Aluminum dustcap

Injection molded foam surround with VAST™

Proprietary surround mechanical clamping ring

Dual Nomex progressive spiders with integrated lead wires

Aluminum diecast frame with integrated heat sink fins and venting

Custom push spring insulated 4 AWG terminals

Single layer edge wound aluminum 5" voice coil

Since voice coil design with dual (push/pull) windings

Integrated die cast aluminum trim ring

Dual gap multi-pole Neodymium push/pull motor structure

Rockford Fosgate T3S1-19 Features

Size: 48 cm (19")

Nominal Impedance: 1 Ohm

Power Handling (Watts RMS): 3000 Watts RMS

Power Handling 6000 Watts Max

Voice Coil Diameter: 5.0" (127 mm)

Magnet Weight (oz): 115 oz. (3.26 Kg)

Speaker Connector: 4 AWG Compression Terminal

Fs (Hz): 27

Re (Ohms): 0.8

Le (mH): 0.45

Qms: 1.93

Qes: 0.38

Qts: 0.32

Vas (Liters): 104.9

Sd (cm2): 1472

SPL (dB @ 1w/1m): 90

Xmax (mm): 34

Woofer Displacement (in): 0.339 cu. ft. (9.6 Liters)

Cutout Diameter (in): 17.54 in. (445 mm)

Mounting Depth (in): 15.62 in. (396 mm)

Shipping Weight: 106.30 Lbs. (48.2 Kg.)

Manuale utente

n-20160915154904-1230-59701-03-t3-subwoofers-man.pdf

Modo d'uso

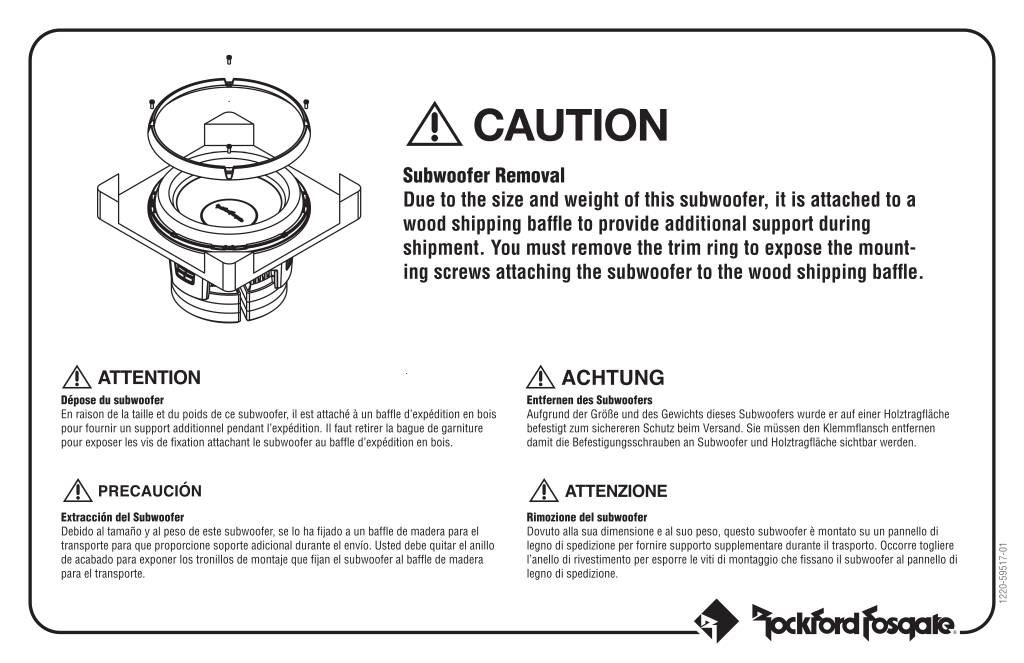

n-20160915154904-1220-59517-01-t213-t216-subremoval-adv.pdf
