T0D215

Rockford Fosgate
Your price:
€ 664,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Subwoofer
Speaker Size
380 mm
MAX Power
1600 Watt
RMS Power
800 Watt
Sensitivity
87 dB
Impedance
4 Ohm
Weight
31,5 Kg
Installation Depth
213 mm
Woofer Material
Cellulosa con rinforzo Nomex

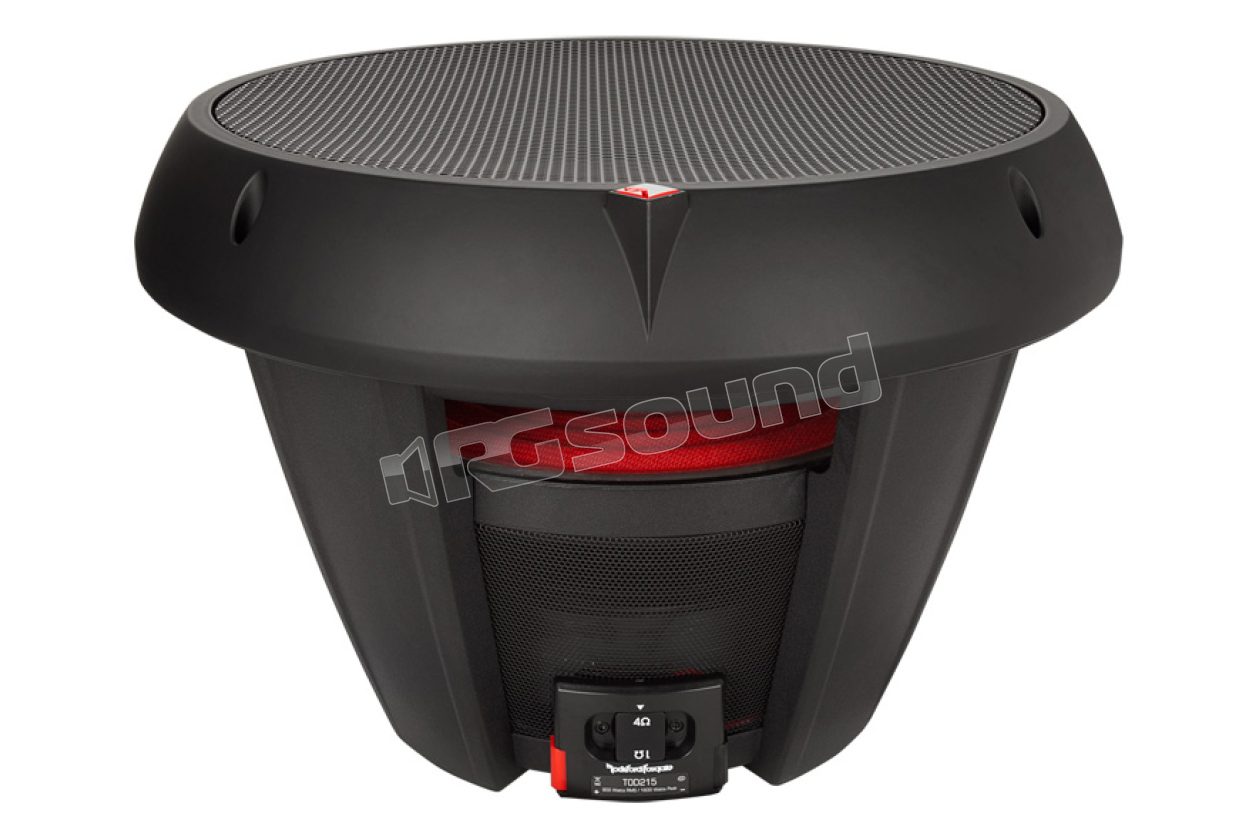

Rockford Fosgate T0D215 38 cm Subwoofer T0 Power Series

The T0D215 Power series subwoofer is equipped with dual 2-Ohm voice coil and grille with integral closure ring included in the package.

T0D215 Sub Features

Impedance: 4 Ohm
Power: 800 Watt RMS / 1600 Watt Max
Sensitivity: 87 dB
Mounting hole: 353 mm
Mounting depth: 213 mm
Anodized aluminum dust cap
Anodized aluminum voice coil former
Nomex voice coil resistant to high temperatures
Cone in paper reinforced with Kevlar fiber
Rigid aluminum die-cast basket

Rockford Fosgate subwoofers have the anodized aluminum cone that provides heat dissipation keeping the device at low temperatures during SPL sessions.

VAST technology increases the external surface by 25% ensuring performance similar to larger woofers.

T0D215 Specifications

Size: 15"
Nominal Impedance: Dual 2-Ohm
Power Handling (Watts RMS): 800 Watts RMS
1600 Watts MAX
Voice Coil Diameter: 3" (75.5 mm)
Magnet Weight (oz):
Speaker Connector: Compression Terminal
Fs (Hz): 25.5
Re (Ohms):
Le (mH):
Qms:
Qes:
Qts: 0.44
Vas (Liters): 94.4
Sd (cm2):
SPL (dB @ 1w/1m): 87
Xmax (mm): 14
Woofer Displacement (in): 0.547 cu. ft.
(15.5 Liters)
Cutout Diameter (in): 13.9375 in.
(353 mm)
Mounting Depth (in): 8.39 in.
(213 mm)
Shipping Weight: 31.5 Lbs.
(14.28 kg)

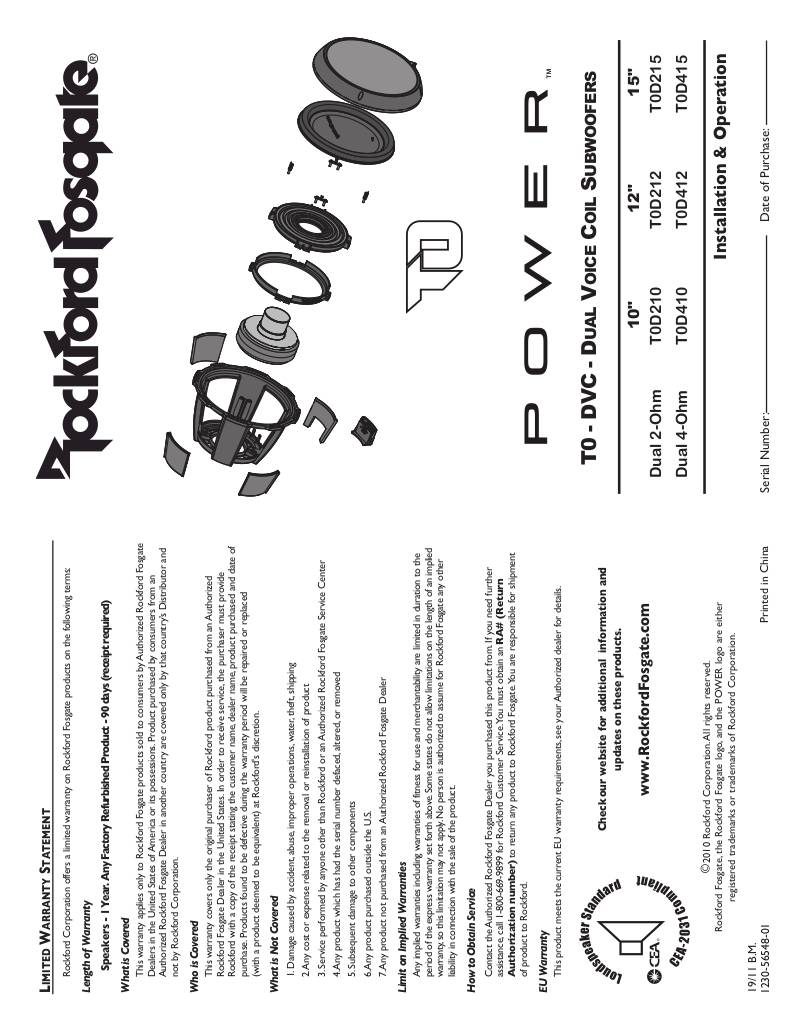

Scheda tecnica

20130408120026-4002120-0-t0subs-man-rev2.pdf
€ 664,00 Price incl. VAT
