T0D212

Rockford Fosgate

Discontinued

Your price:
€ 499,00
Price per single item (VAT included)
Type
Subwoofer
Speaker Size
300 mm
MAX Power
1400 Watt
RMS Power
700 Watt
Sensitivity
84 dB
Impedance
4 Ohm
Weight
14 Kg
Installation Depth
175 mm
Woofer Material
Cellulosa con rinforzo Nomex

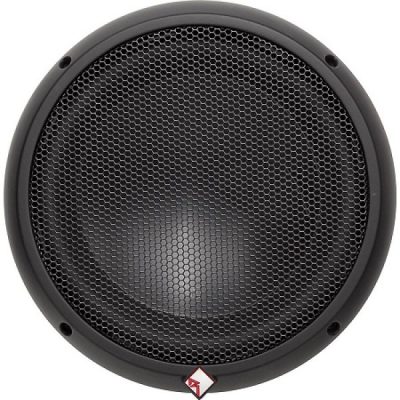

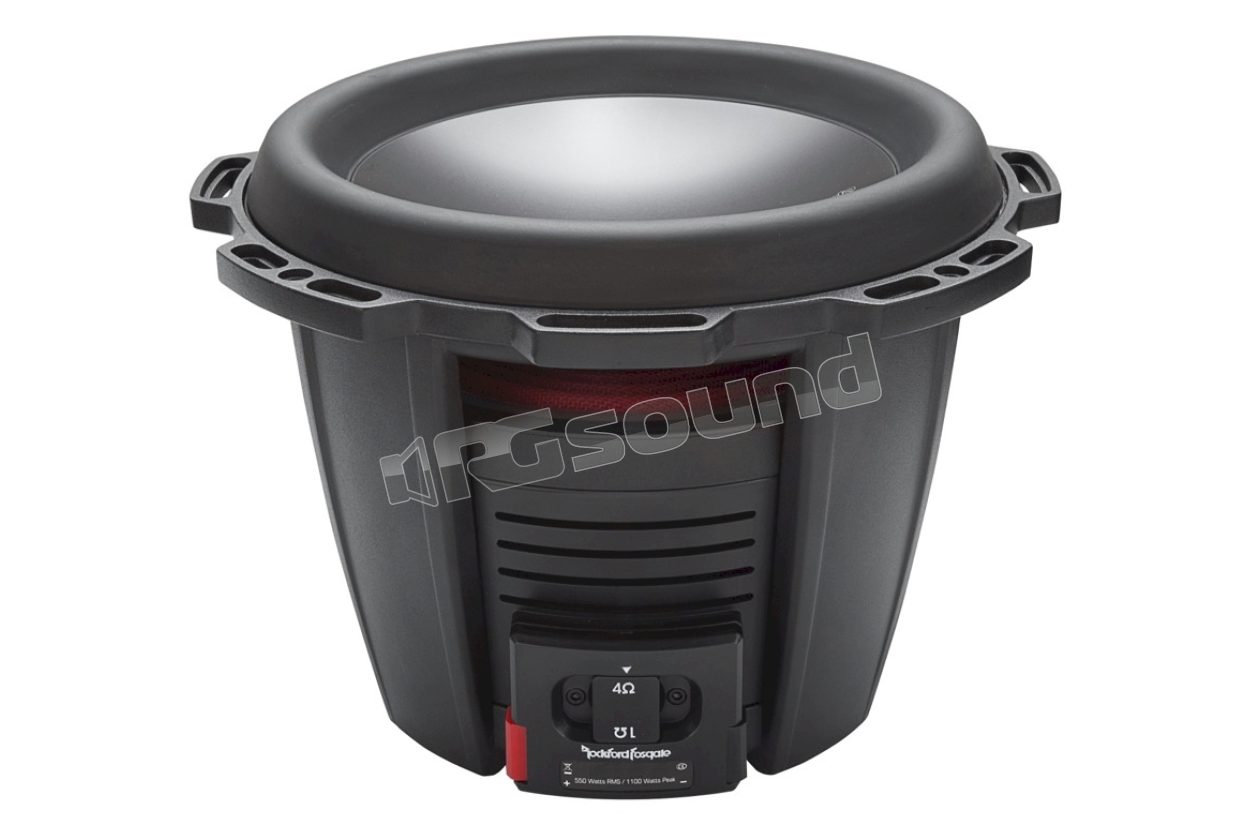

Rockford Fosgate T0D212 Subwoofer 30 cm T0 Power Series

Impedance: 4 Ohm
Power: 700 Watts RMS / 1400 Watts Max
Sensitivity: 84 dB
Mounting Hole: 285 mm
Mounting Depth: 175 mm

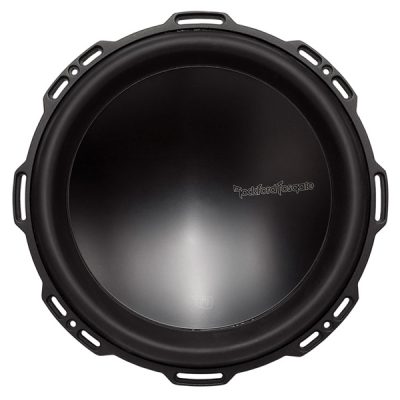

Rockford Fosgate subwoofers have the cone in anodized aluminum that provides heat dissipation keeping the device at low temperatures during SPL sessions.

The VAST technology increases the external surface by 25% guaranteeing performance similar to larger woofers.

T0D212 Specifications

Size: 12"
Nominal Impedance: Dual 2-Ohm
Power Handling (Watts RMS): 700 Watts RMS
1400 Watts MAX
Voice Coil Diameter: 3" (75.5 mm)
Magnet Weight (oz):
Speaker Connector: Compression Terminal
Fs (Hz): 25.3
Re (Ohms):
Le (mH):
Qms:
Qes:
Qts: 0.47
Vas (Liters): 55
Sd (cm2):
SPL (dB @ 1w/1m): 84.3
Xmax (mm): 14
Woofer Displacement (in): 0.308 cu. ft.
(8.73 Liters)
Cutout Diameter (in): 11.25 in.
(285 mm)
Mounting Depth (in): 6.875 in.
(174.6 mm)
Shipping Weight: 31.16 Lbs.
(14.13 kg)

Scheda tecnica

20130408120026-4002120-0-t0subs-man-rev2.pdf
