T-25S Dome Tweeter

Beyma
Your price:
€ 127,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Tweeter
Dome Size
25 mm
MAX Power
180 Watt
RMS Power
30 Watt
Sensitivity
92 dB
Impedance
4 Ohm
Outer Diameter
110 mm
Installation Depth
44,8 mm

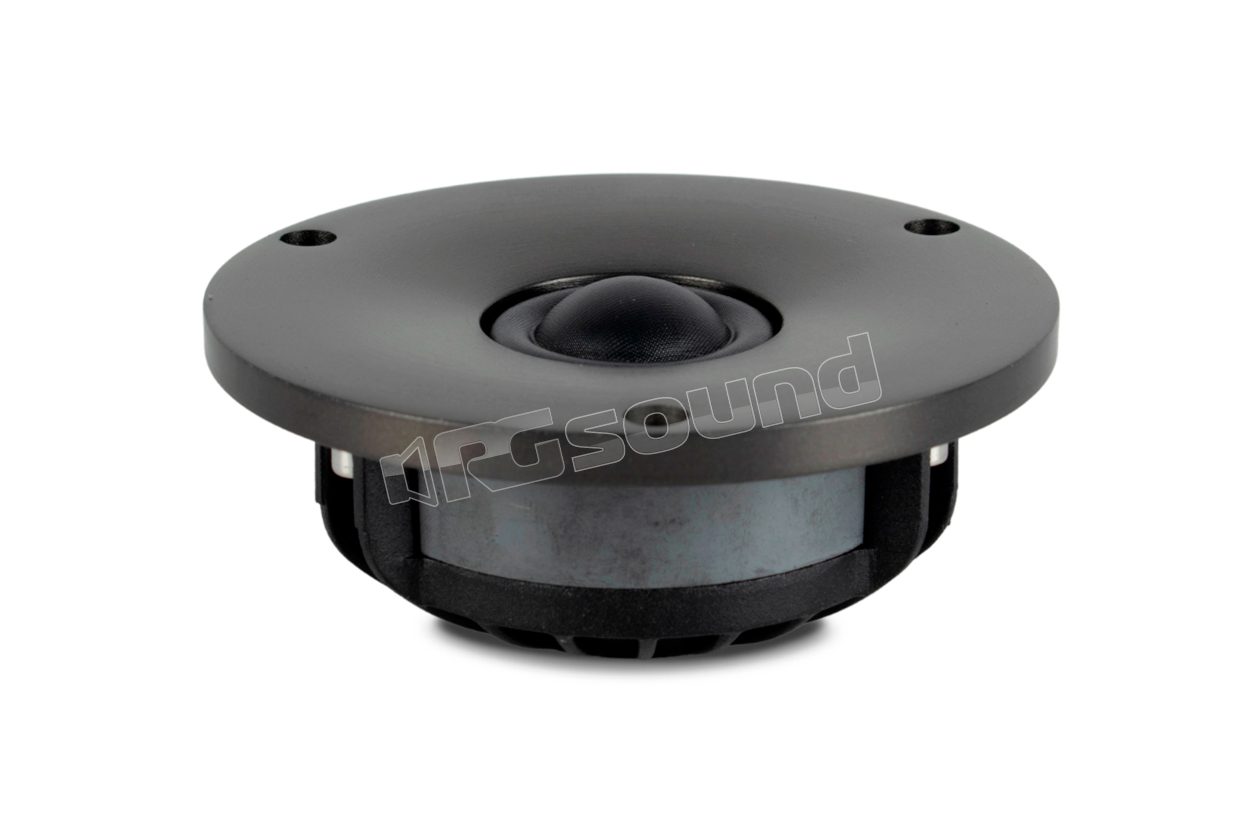

Beyma T-25S Dome Tweeter

The T25S is a lightweight silk diaphragm pre-coated that translates into a high sensitivity tweeter with excellent linearity in frequency response. Together with the mobile coil in copper-coated aluminum wire, the very lightweight mobile mass tweeter that reaches almost 92 dB along the working frequency range.

Beyma tweeter with excellent performance, developed to meet the needs of the professional sector. The revolutionary design allows you to mechanically couple the tweeter to the cabinet. The rigid rear chamber in die-cast aluminum is fixed directly to the front plate in cast aluminum, which holds the entire group together in a stable manner.

Scheda prodotto

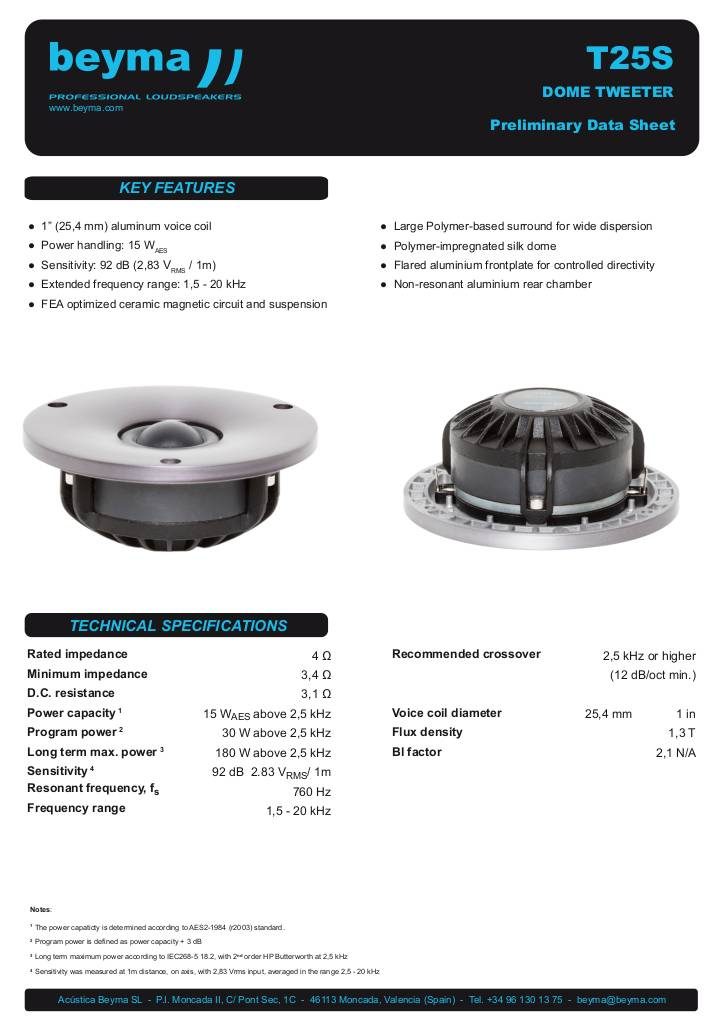

n-20230721105329-beyma-speakers-data-sheet-direct-radiation-tweeter-t25s.pdf

Beyma T-25S Technical Specifications

  • Nominal impedance 4 Ω
  • Minimum impedance 3.4 Ω
  • D.C. resistance 3.1 Ω
  • Power 15W above 2.5kHz
  • Program power 30W above 2.5kHz
  • Maximum long-term power 180W above 2.5kHz
  • Sensitivity 92 dB 2.83 VRMS/ 1m
  • Resonance frequency, fs 760 Hz
  • Frequency range 1.5 - 20 kHz
€ 127,00 Price incl. VAT
