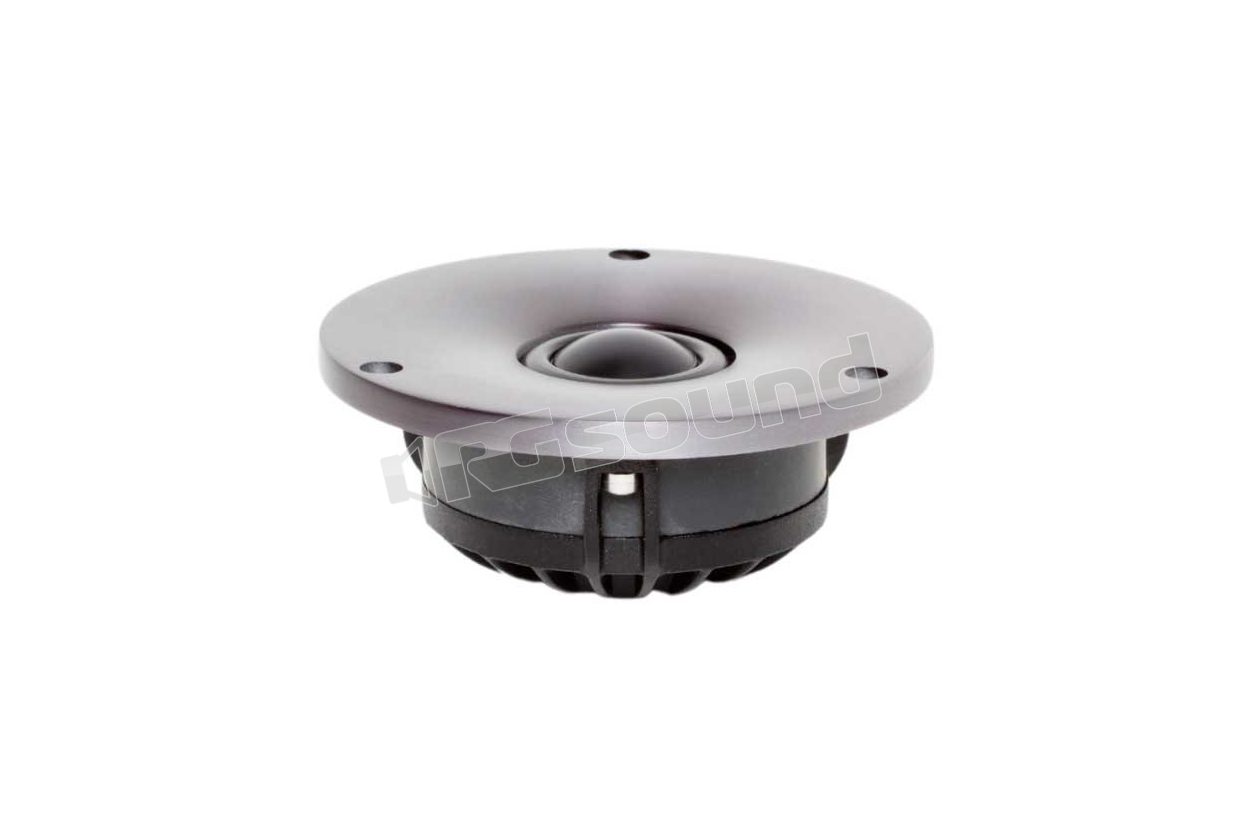

T-25M 25mm Dome Tweeter

Beyma
Your price:
€ 153,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Tweeter
Dome Size
25 mm
MAX Power
200 Watt
RMS Power
40 Watt
Sensitivity
88 dB
Impedance
4 Ohm
Outer Diameter
110 mm
Installation Depth
44,8 mm
Tweeter Material
Alluminio e magnesio

Beyma T-25M Dome Tweeter

The T25M is a dome reinforced with an aluminum and magnesium alloy carefully designed to improve the linearity of the frequency response. The membrane moves as a piston well above the audible range, pushing the break-up near 38 kHz, reducing listening fatigue and ensuring crystal clear sound and brilliant performance in the traditional working range.

The wide surround allows for greater excursion and is made with a polymeric film of specific formulation. The shape has been optimized with finite element analysis software to ensure a compliance symmetry that exceeds the working range of a normal tweeter, while providing exceptional figures both on-axis and off-axis.

Schda prodotto

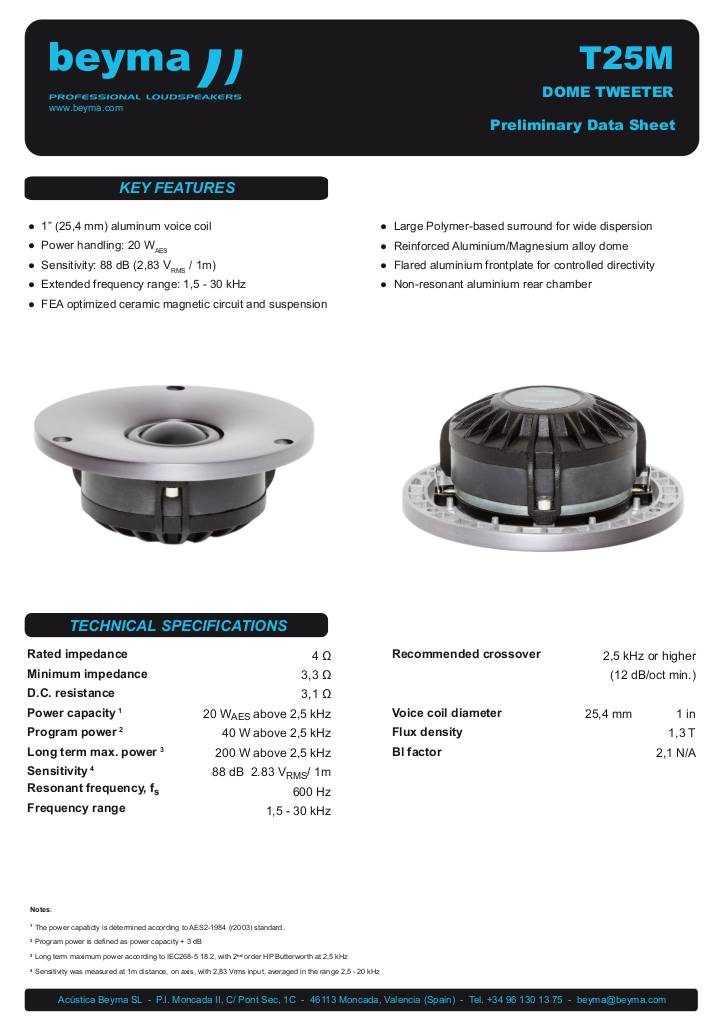

n-20230721115002-beyma-speakers-data-sheet-direct-radiation-tweeter-t25m.pdf

Beyma T-25M Technical Specifications

  • Nominal impedance 4 Ω
  • Minimum impedance 3.3 Ω
  • D.C. resistance 3.1 Ω
  • Power 20 W above 2.5 kHz
  • Program power 40 W above 2.5 kHz
  • Maximum long-term power 200 W above 2.5 kHz
  • Sensitivity 88 dB 2.83 VRMS/ 1 m
  • Resonance frequency, fs 600 Hz
  • Frequency range 1.5 - 30 kHz
  • Recommended crossover 2.5 kHz or higher (12 dB/oct min.)
  • Voice coil diameter 25.4 mm 1"
  • Flux density 1.3 T
  • Bl factor 2.1 N/A
