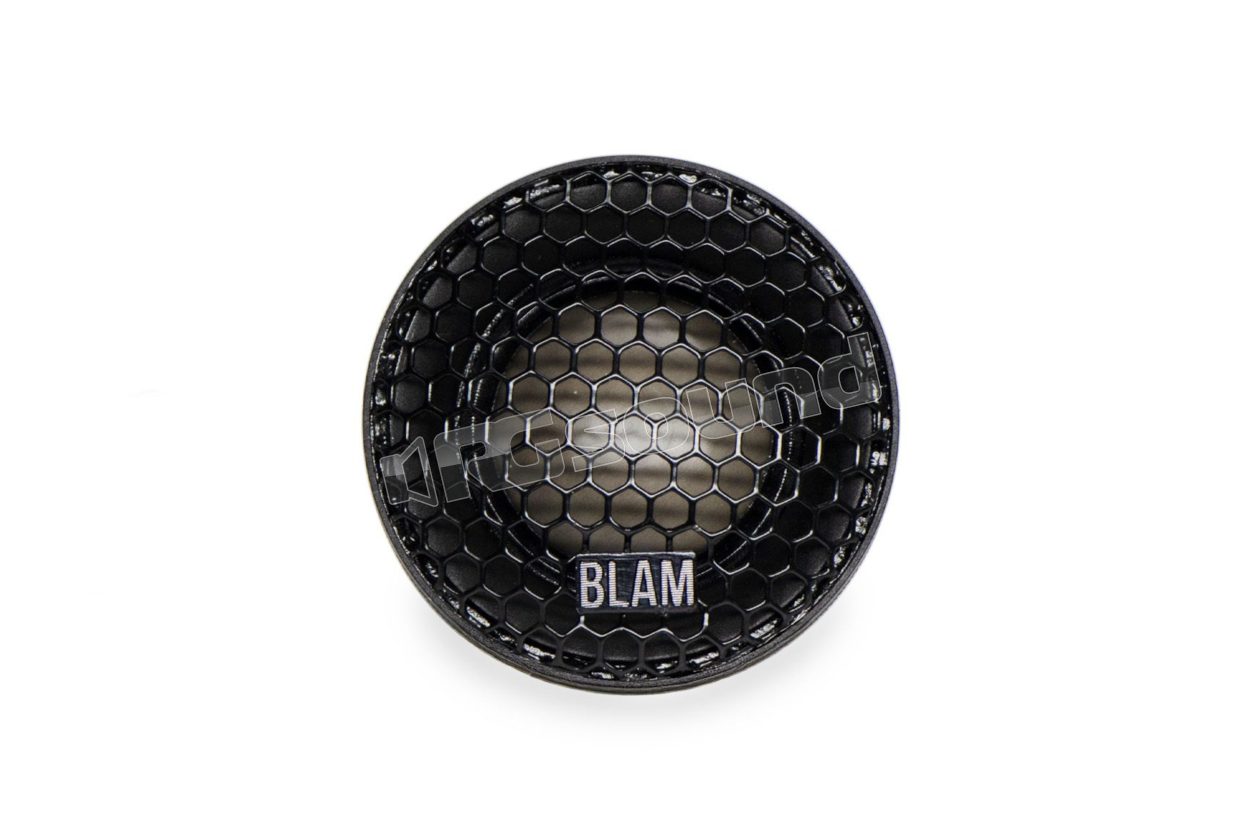

T 20MG 20 mm magnesium dome tweeter -88dB – 4 Ohm

BLAM
Your price:
€ 219,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Tweeter
Dome Size
20 mm
MAX Power
100 Watt
RMS Power
15 Watt
Frequency Response
1,5 KHz - 45 KHz Hertz
Sensitivity
88 dB
Impedance
4 Ohm

BLAM T 20MG Tweeter magnesium dome 20 mm - 88dB - 4Ω

Designed for ultraprecise sound reproduction, the 20 mm (3/4") T20 MG pure magnesium dome tweeter offers excellent clarity and finesse at high frequencies. With a rated power of 15 W and a peak of 100 W, it guarantees detailed and natural reproduction.

Its wide frequency response from 1.5 kHz to 45 kHz ensures exceptional high frequency reproduction, capturing every nuance with precision. The 4 Ω impedance makes it easily integrable into many hi-fi audio systems. Ideal for an engaging and balanced sound experience.

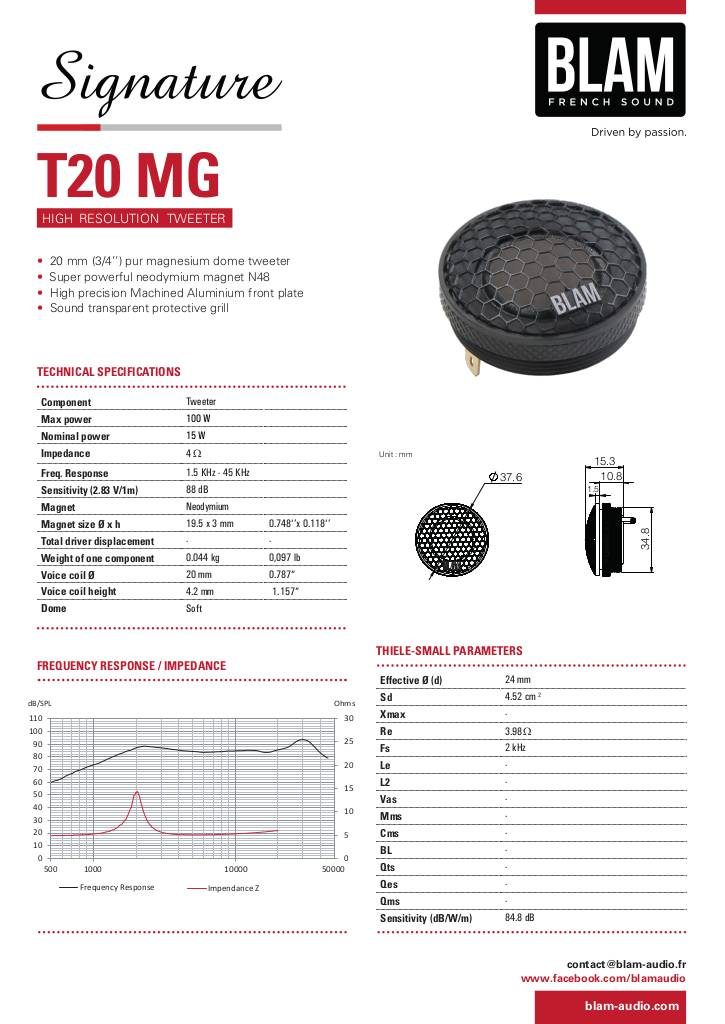

Scheda tecnica

n-20250408101007-t-20mg.pdf

BLAM T 20MG Technical specifications

  • Component tweeter
  • Maximum power 100 W
  • Rated power 15 W
  • Impedance 4 Ω
  • Frequency response Response 1.5 KHz - 45 KHz
  • Sensitivity (2.83 V/1m) 88 dB
  • Magnet Neodymium
  • Magnet size Ø x h 19.5 x 3 mm 0.748''x 0.118''
  • Total driver displacement - -
  • Weight of one component 0.044 kg 0.097 lb
  • Voice coil Ø 20 mm 0.787
  • Voice coil height 4.2 mm 1.157"
  • Soft dome
€ 219,00 Price incl. VAT
