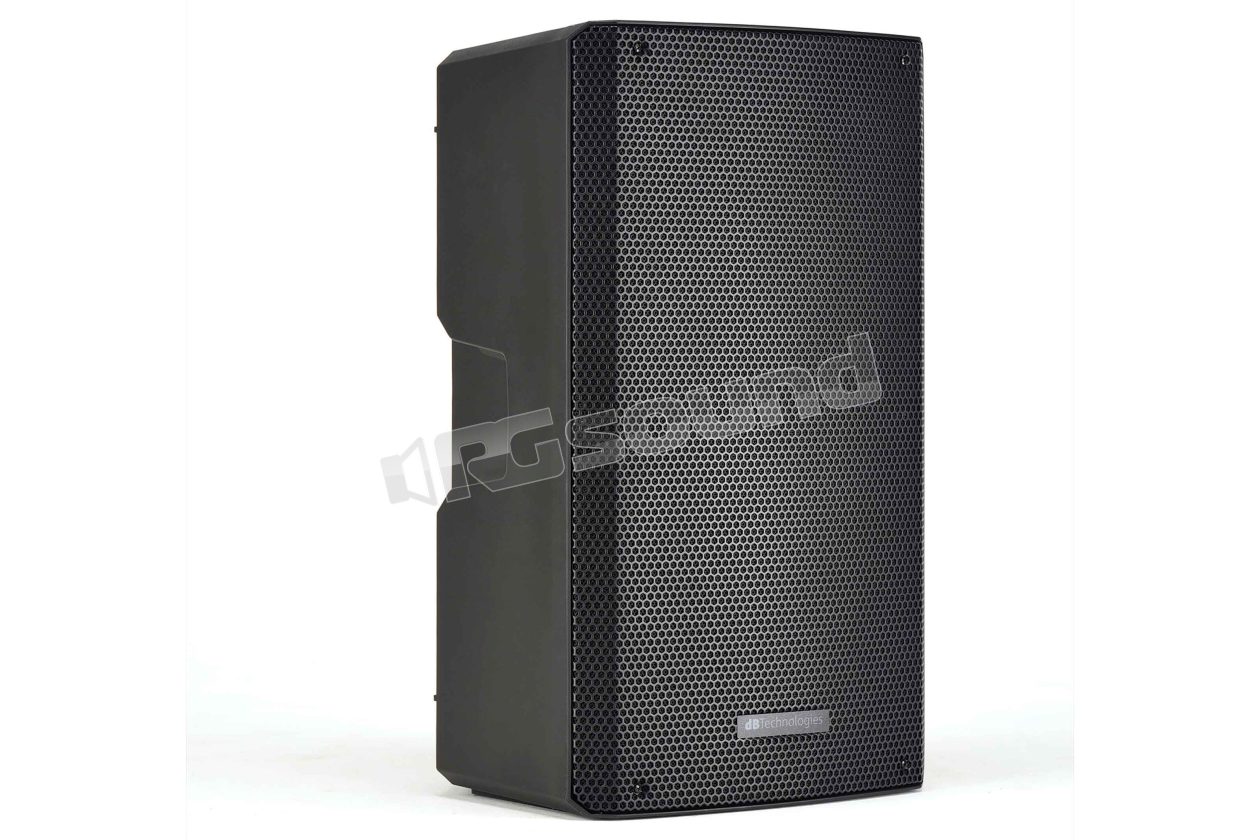

SYA 15 2-way active speaker with 15'' woofer and Bluetooth connection

dB Technologies

Discontinued

Your price:
€ 329,90
Price per single item (VAT included)

dBTechnologies SYA 15 2-way active speaker with 15" woofer and Bluetooth connection, 3 input channels, significant sound pressure levels and a latest generation DSP. Supplied with soft cover.

SYA 15 2-way active speaker consisting of 15" woofer and 1" driver (1.35" coil), the system is powered by 800 W amplifier module and advanced sound processing where linear phase FIR filters allow the systems to deliver coherent, uniform and crystal-clear audio performance from every listening position. Furthermore the on-board presets allow each user to adapt the equalization to the application in use.

All SYA systems are equipped with 3 INPUT channels with independent level management:

CH 1 is a balanced combo XLR/6.3 mm Jack line/mic INPUT with switch for source selection.
CH 2 is a balanced XLR and TRS jack IN.
CH 3 allows you to connect any device via Bluetooth® connection.

A balanced XLR-M output allows connection to another speaker or a mixer. A slide switch allows you to select which signal is sent to the main output: LINK (the signal is taken before any level control) MIX (the signal is determined by the level control of each channel and Main). The cabinets, solid and versatile, are characterized by sober and contemporary design, enhancing both portability thanks to the 3 integrated handles (1 per side and 1 on top) and multifunctionality: each cabinet can be used horizontally as a stage monitor (on both sides) and has a pole cup with 2 tilt options (0° and 7.5°) to use SYA on tripods or on top of dBTechnologies subs.

SYA is supplied with soft cover equipped with a pocket specially designed for cable housing.

Scheda tecnica

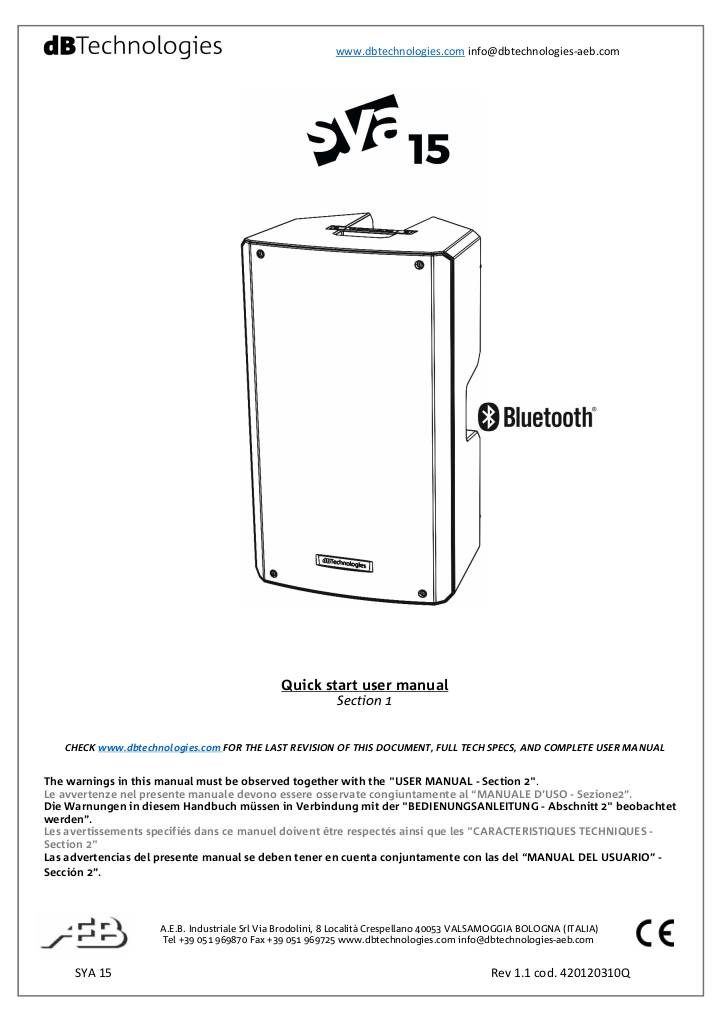

n-20200228123035-sya-15-quick-rev-1-1.pdf

dBTechnologies SYA 15 technical specifications

2-way active speaker
Frequency response [-10dB] 48 - 18,000 Hz
Max SPL 128 dB
HF 1" CD, 1.35" v.c
LF 15", 2.5" v.c.
Dispersion 90° x 60°
Crossover frequency 1800 Hz (24 dB/oct.)
Amplification technology Class D (LF) + Class AB (HF)
Power peak (LF + HF) 800 W.
Processor controls 1xVolume, 1xslide switch mic/line
LED indicators power/signal/limiter
DSP control 20/56 bit
AD/DA converter 24 bit/48 Hz
Playback, Flat, Bass Boost, Wedge
Advanced DSP functions with linear phase FIR filters
Signal input 1x Combo (XLR/Jack)
Mic/Line 1xXLR/TRS
Bluetooth receiver
SIGNAL output 1xXLR male (LINK/MIX)
Polypropylene housing
handles 3 (2 on the side 1 on top)
Monitor top corners 45°
Pole mount 36 mm, double positioning
Width 430 mm (16.92 inches)
Height 722 mm (28.44 inches)
Depth 402 mm (15.82 inches)
Weight 19.3 kg (42.54 lbs)

Discontinued
