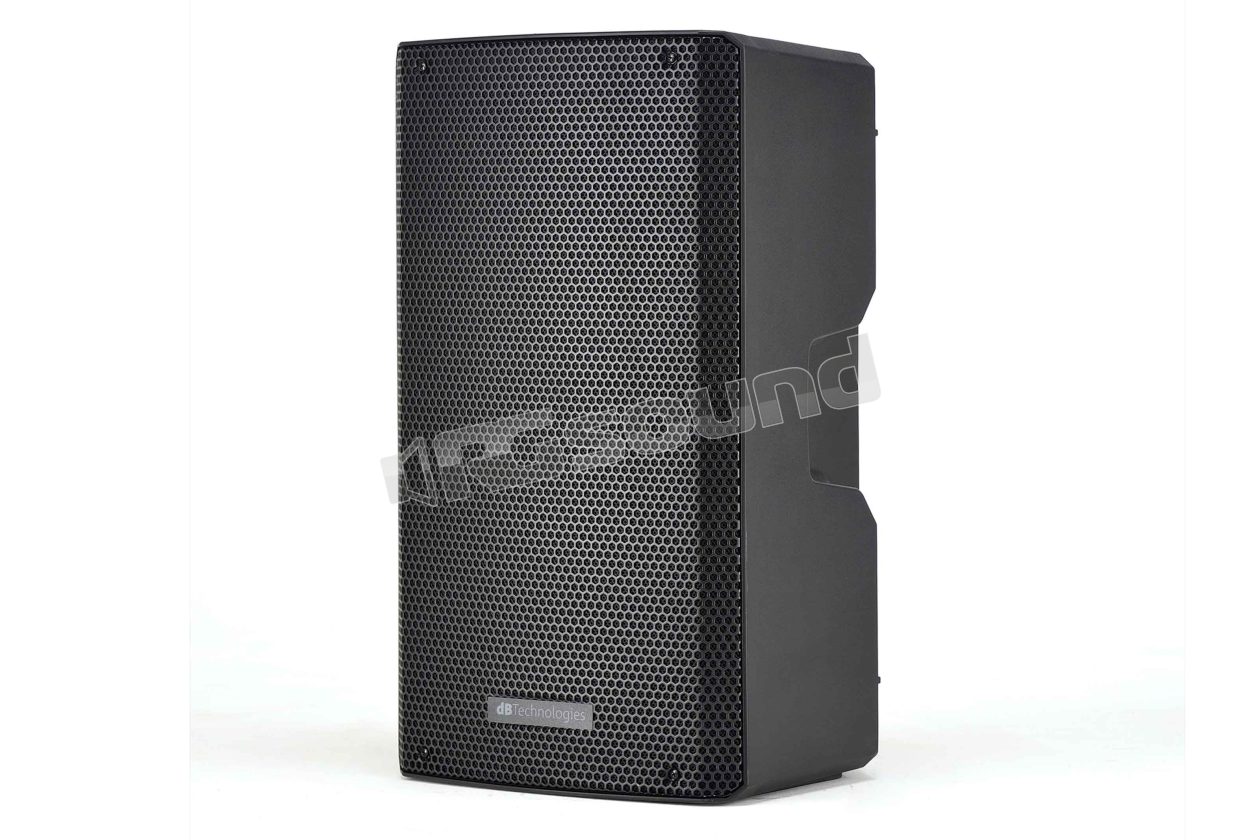

SYA 12 2-way active speaker with 12'' woofer and Bluetooth connection

dB Technologies

Discontinued

Your price:
€ 299,90
Price per single item (VAT included)

dBTechnologies SYA 12 2-way active speaker with 12" woofer and Bluetooth connection, 3 input channels, high sound pressure levels and state-of-the-art DSP. Supplied with soft cover.

SYA 12 active 2-way speaker consisting of a 12" woofer and 1" driver (1.35" coil), the system is powered by an 800 W amplifier module and advanced sound processing where linear phase FIR filters allow the systems to deliver coherent, uniform and crystal-clear audio performance from every listening position. Furthermore, on-board presets allow each user to adapt the equalization to the application in use.

All SYA systems are equipped with 3 INPUT channels with independent level management:

CH 1 is a balanced XLR/6.3 mm Jack combo line/mic INPUT with source selection switch.
CH 2 is a balanced XLR and TRS jack IN.
CH 3 allows you to connect any device via Bluetooth® connection.

A balanced XLR-M output allows connection to another speaker or mixer. A slide switch allows you to select which signal is sent to the main output: LINK (the signal is taken before any level control) MIX (the signal is determined by the level control of each channel and Main). The cabinets, solid and versatile, are characterized by sober and contemporary design, enhancing both portability thanks to the 3 integrated handles (1 per side and 1 on the top) and multifunctionality: each cabinet can be used horizontally as a stage monitor (on both sides) and features a pole cup with 2 tilt options (0° and 7.5°) for using SYA on tripods or on top of dBTechnologies subs.

SYA is supplied with soft cover featuring a pocket specifically designed for cable storage.

Scheda tecnica

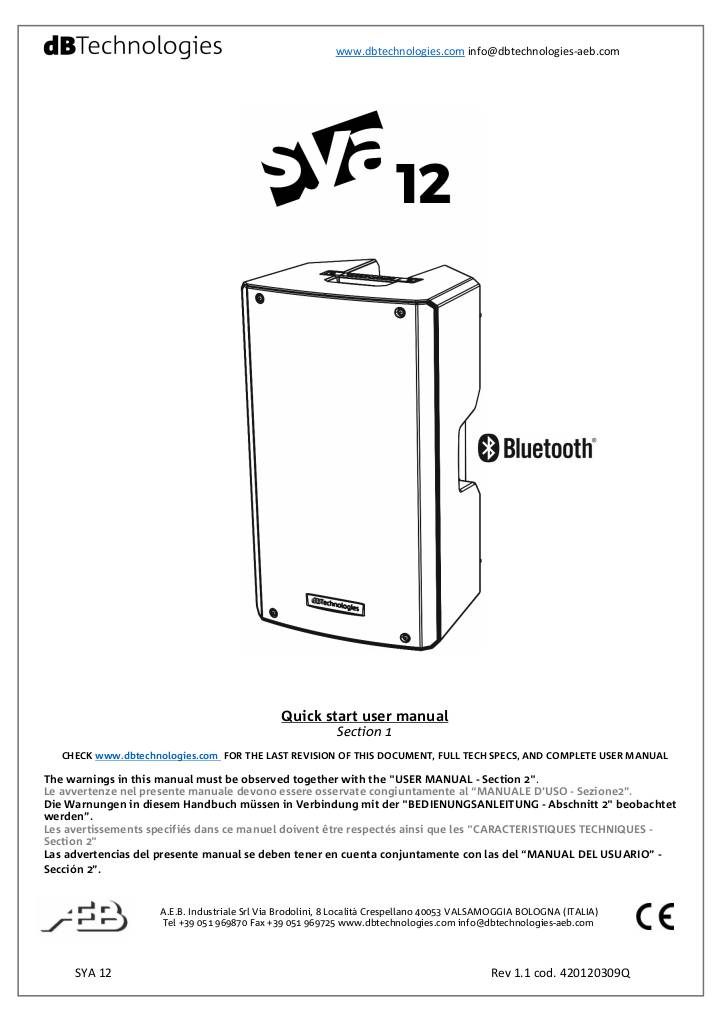

n-20200228123311-sya-12-quick-rev-1-1.pdf

dBTechnologies SYA 12 technical specifications

2-way active speaker
Frequency response [-10dB] 52 - 18,000 Hz
Max SPL 127 dB
HF 1" CD, 1.35" v.c
LF 12", 2.5" v.c.
Dispersion1 90° x60°
Crossover frequency 1800 Hz (24 dB/oct.)
Amplification technology Class D (LF) + Class AB (HF)
Power peak (LF + HF) 800 W.
Processor controls 1xVolume, 1xslide switch mic/line
LED indicators power/signal/limiter
DSP control 20/56 bit
AD/DA converter 24 bit/48 Hz
Playback, Flat, Bass Boost, Wedge
Advanced DSP functions with linear phase FIR filters
Signal input 1x Combo (XLR/Jack)
Mic/Line 1xXLR/TRS
Bluetooth receiver
SIGNAL output 1xXLR male (LINK/MIX)
Polypropylene housing
handles 3 (2 on the side 1 on top)
Monitor top corners 45°
Pole Mount 36 mm, double positioning
Width 365 mm (16.92 inches)
Height 622 mm (28.44 inches)
Depth 342 mm (15.82 inches)
Weight 16.5 kg (42.54 lbs)

Discontinued
