SXE8D2 20 cm (8") subwoofer with protective grille

ESX
Your price:
€ 124,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Subwoofer
Speaker Size
200 mm
MAX Power
500 Watt
RMS Power
250 Watt
Impedance
2+2 Ohm

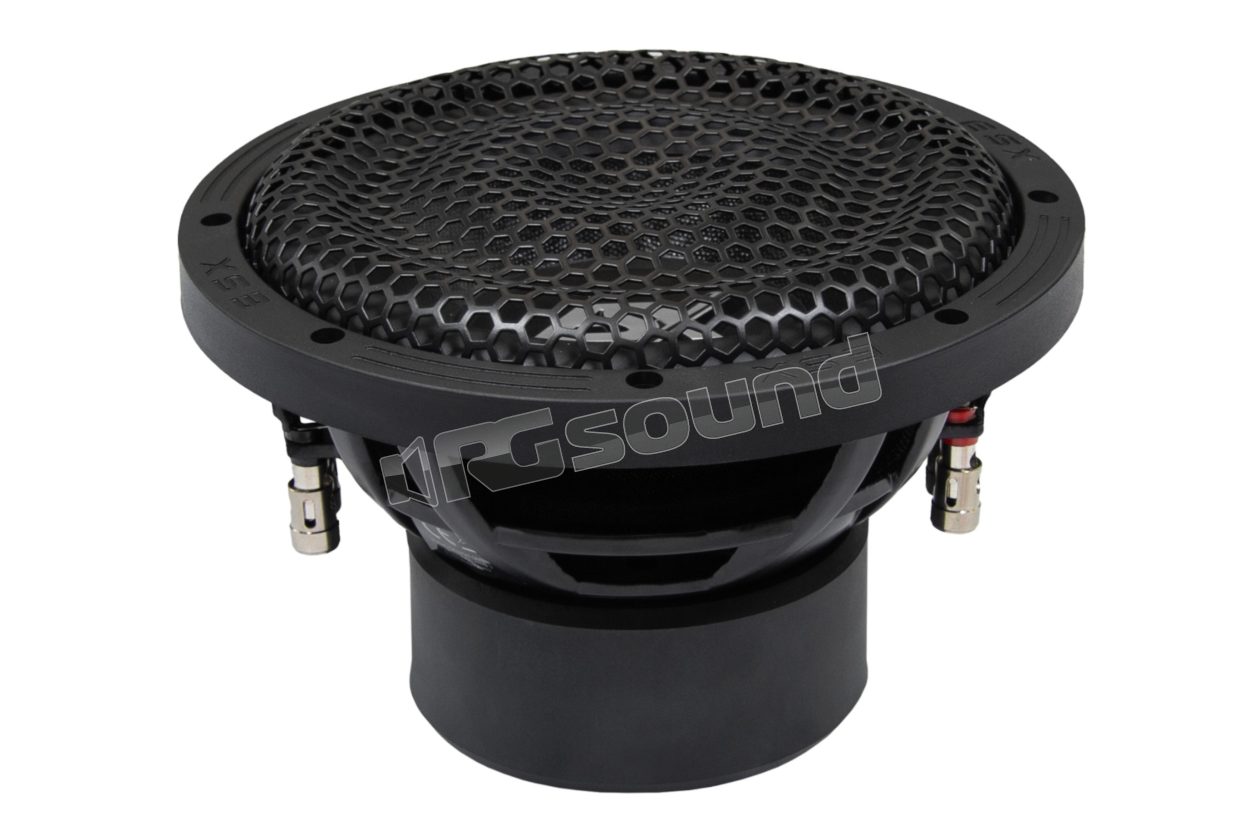

ESX SXE8D2 20 cm (8") Subwoofer with Protective Grille

The SIGNUM subwoofers from the ESX range have become a recommendation among professionals thanks to their qualities: They offer excellent sound, are of the highest quality and well equipped. This also applies to the new SXE subwoofers, which develop all their performance especially in bass reflex enclosures. A particular strength is the protective grille included as standard, pre-assembled and extremely stable. It not only protects the membrane from potential damage, but also impresses visually with its hexagonal honeycomb pattern and curved structure. Fortunately, there is no need to spend money on additional protective grilles, which makes the SXE woofers particularly attractive in terms of price.

The successful appearance of the SIGNUM SXE subwoofers is not only due to the pre-assembled protective grilles: the high-quality die-cast aluminum baskets also make an excellent impression. But they are not only nice to look at, they also significantly improve construction stability. There is practically no vibration in the material.

An important aspect of subwoofers is the drive, which in the SXE models is very generous: All three sizes use dual heavy magnets, which in turn drive dual long-wound voice coils with an impedance of 2+2 ohm. The dual voice coils used make the subwoofers very versatile: whether on a stable 1 ohm monoblock or on conventional 2 or 4 channel power amplifiers, the woofers adapt very well to almost all amplifiers on the market thanks to their variable impedance.

SXE8D2 Features

  • High stability cast aluminum basket
  • 50 mm voice coil with 20 mm winding height
  • Dual magnet with 2 x 24 ounces (1.3 kg)
  • Vented pole piece
  • Single Nomex spider
  • Sanded paper cone
  • Stable metal protective grille

Scheda tecnica

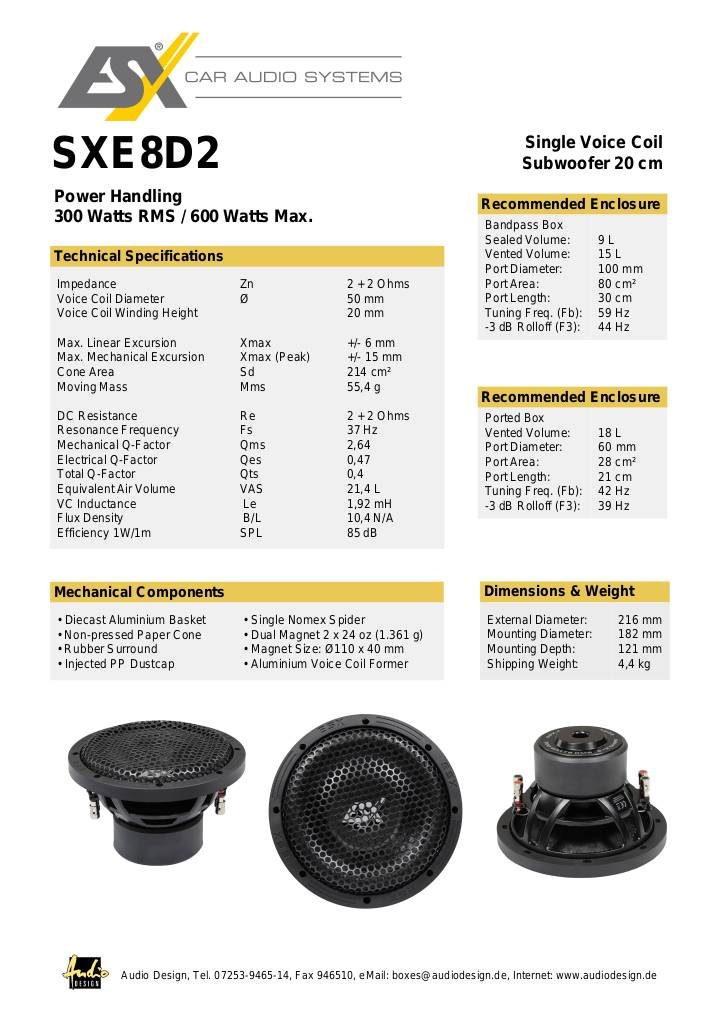

n-20250423164156-sxde8d2.pdf

ESX SXE8D2 Technical Specifications

  • 20 cm (8") subwoofer
  • Nominal power 250/500 Watt RMS/Max.
  • Impedance 2+2 Ω
  • Fs 37 Hz, Qts 0.4, VAS 21.4 L, 88 dB/2.83V/1m
  • Installation depth 121 mm
  • Installation diameter 182 mm
€ 124,00 Price incl. VAT
