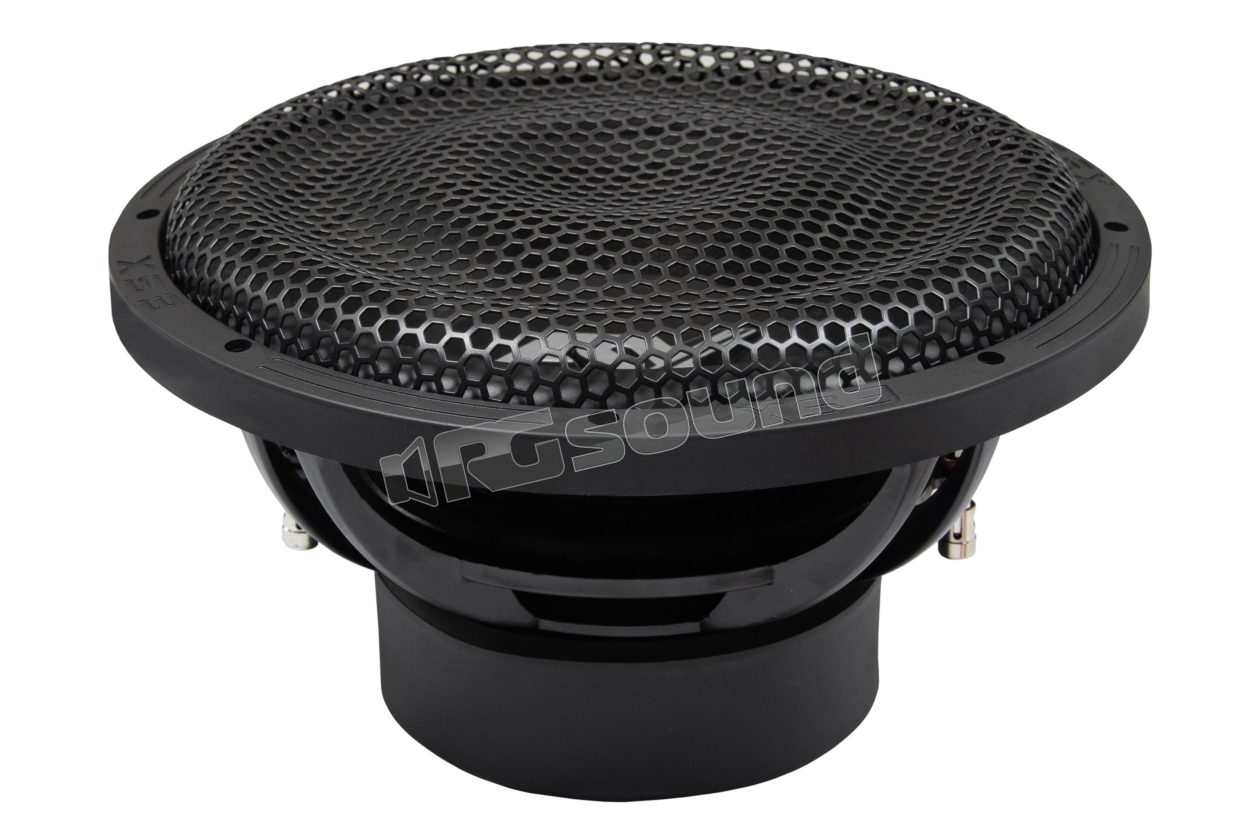

SXE12D2 30 cm (12") subwoofer with protective grille

ESX
Your price:
€ 181,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Subwoofer
Speaker Size
300 mm
MAX Power
1000 Watt
RMS Power
500 Watt
Impedance
2+2 Ohm

ESX SXE12D2 Subwoofer 30 cm (12") with protective grille

The SIGNUM subwoofers from the ESX range have become a recommendation from experts thanks to their qualities: They offer excellent sound, are of the highest quality and well equipped. This also applies to the new SXE subwoofers, which develop all their performance especially in bass reflex boxes. A particular strength is the protective grille supplied, pre-assembled and extremely stable. It not only protects the membrane from possible damage, but also makes a visual impact with its hexagonal honeycomb pattern and curved structure. Fortunately, you don't need to spend money on additional protective grilles, which makes the SXE woofers particularly attractive in terms of price.

The successful appearance of the SIGNUM SXE subwoofers is not only due to the pre-assembled protective grilles: the high-quality die-cast aluminum baskets also make an excellent impression. But they are not only beautiful to look at, they also significantly improve construction stability. There is practically no vibration in the material.

An important aspect of subwoofers is the drive, which in the SXE models is very generous: All three sizes use dual heavy magnets, which in turn drive dual long-wound voice coils with an impedance of 2+2 ohm. The dual voice coils used make the subwoofers very versatile: whether on a stable 1 ohm monolithic amplifier or on conventional 2 or 4 channel power amplifiers, the woofers adapt very well to almost all amplifiers on the market thanks to their variable impedance.

SXE12D2 Features

  • High stability cast aluminum basket
  • 50 mm voice coil with winding height of 30 mm
  • Dual magnet with 2 x 53 ounces (3 kg)
  • Ventilated pole piece
  • Single Nomex spider
  • Sandpaper cone
  • Stable metal protective grille

Scheda tecnica

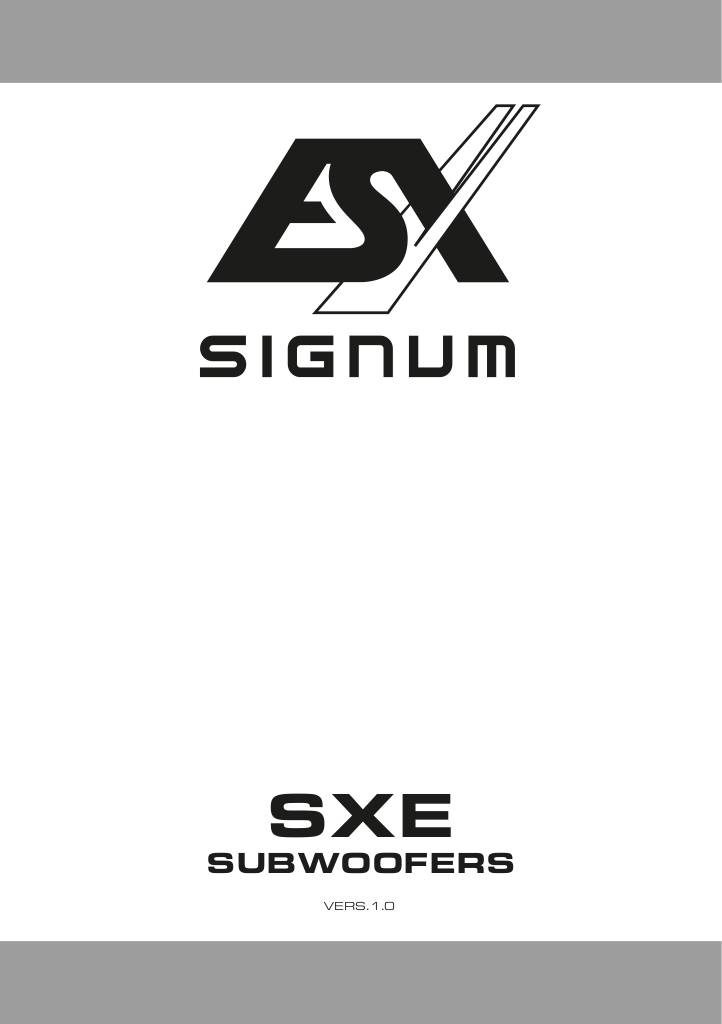

n-20250423170118-sxe12d2.pdf

ESX SXE12D2 Technical Specifications

  • Subwoofer 30 cm (12")
  • Rated Power 500/1000 Watt RMS/Max.
  • Impedance 2+2 Ω
  • Fs 28 Hz, Qts 0.31, VAS 71.5 L, 92 dB/2.83V/1m
  • Installation depth 150 mm
  • Installation diameter 282 mm
€ 181,00 Price incl. VAT
