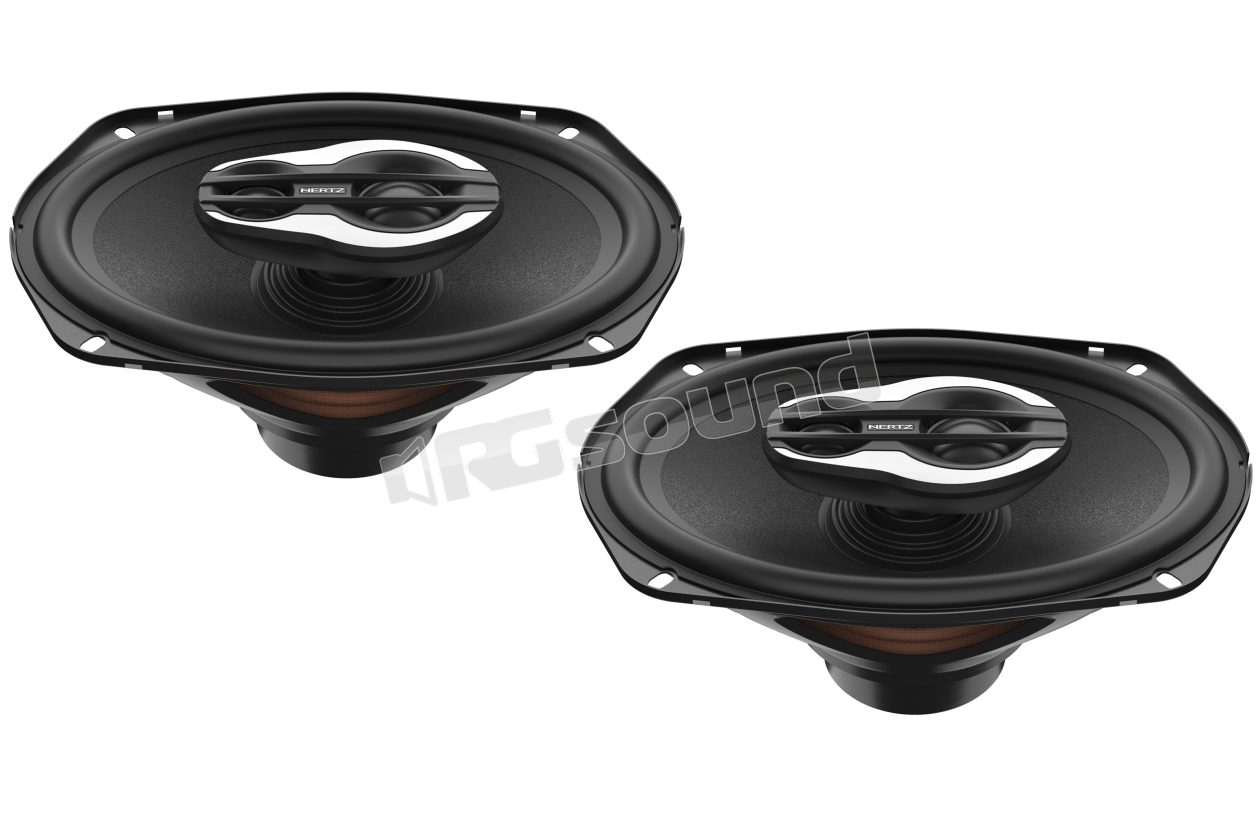

SX 690 Neo High-power 6x9'' 3-way coaxial speaker for car, motorcycle and outdoor

Hertz
Your price:
€ 279,00
Price per pair (VAT included)
Available on backorder
Calculating shipping costs to
Type
Coaxial
Speaker Size
6x9''
Coaxial Type
3-way
Frequency Response
65 - 24.000 Hertz
MAX Power
260 Watt
RMS Power
130 Watt
Sensitivity
94 dB
Impedance
4 Ohm
Woofer Material
Cellulosa pressata
Tweeter Material
Tetolon

Hertz SX 690 Neo 6x9" Elliptical 3-Way Coaxial Speakers for Cars, Motorcycles and Outdoor

The Hertz SX 690 Neo coaxial speakers are a great source of power, equipped with a 1.4" dome tweeter and 1" dome supertweeter with protection circuit. The cones are made of high-rigidity pressed paper, particularly resistant, with innovative water-repellent and anti-UV treatments, so you can install these speakers on your motorcycle too.

The dual-layer copper voice coil, wound on a polyamide former, guarantees unprecedented power handling. The new motor units are made of special Neodymium N38 H to achieve minimum size and greater performance.

Features SX 690 Neo

  1. High-rigidity pressed paper cone, resistant to atmospheric agents, with innovative water-repellent and anti-UV treatments.
  2. Extreme and durable SPL performance in compact size and lightness thanks to N38 H neodymium magnet.
  3. Unmatched power handling provided by the dual-layer copper voice coil, wound on a polyamide former.
  4. Hi-SPL Mid-Hi unit based on 1.4" dome tweeter and 1" dome supertweeter with solid-state resettable tweeter protection circuit.
  5. Dual Faston terminals allow connection of multiple units and provide compatibility with the most common motorcycle connections.

Scheda tecnica

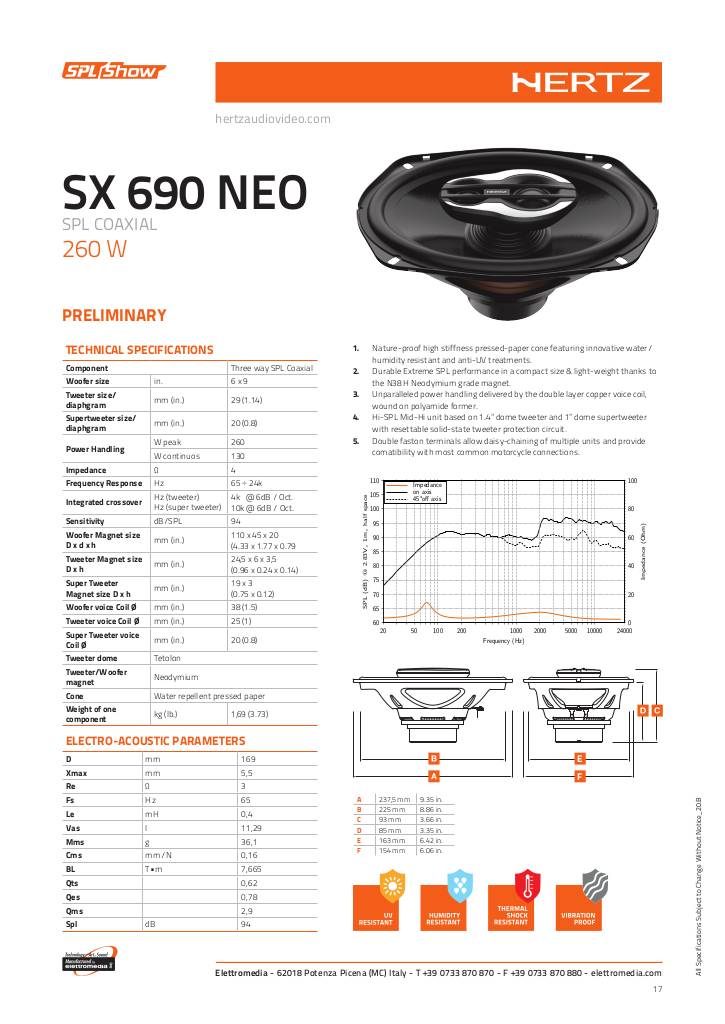

n-20210427104702-hertz-spl-neo-690-tech-sheet.pdf

Hertz SX 690 Neo Technical Specifications

  • Power handling
    • Peak W 260
    • Continuous W 130
  • Impedance Ω 4
  • Frequency response Hz 65 ÷ 24k
  • Sensitivity dB SPL 94
  • Woofer size mm (inches) 6 x 9 inches
  • Tweeter size mm (inches) 29 (1.14)
  • Supertweeter size mm (inches) 20 (0.8)
  • Woofer voice coil Ø mm (inches) 38 (1.5)
  • Tweeter coil Ø mm (inches) 25 (1)
  • Woofer magnet special neodymium N38 H.
  • Tweeter magnet special neodymium N38 H.
  • Woofer cone Pressed paper water-repellent
  • Dome tweeter Tetolon
  • Supertweeter dome Tetolon
€ 279,00 Price incl. VAT
