SX 690 H SPL 6x9" Coaxial Speakers

Hertz
Your price:
€ 279,00
Price per pair (VAT included)
Available on backorder
Calculating shipping costs to
Type
Coaxial
Speaker Size
6x9''
Coaxial Type
3-way
Frequency Response
65 - 24000 Hertz
MAX Power
260 Watt
RMS Power
130 Watt
Sensitivity
94 dB
Impedance
4 Ohm
Woofer Material
Cellulosa pressata
Tweeter Material
Neodimio

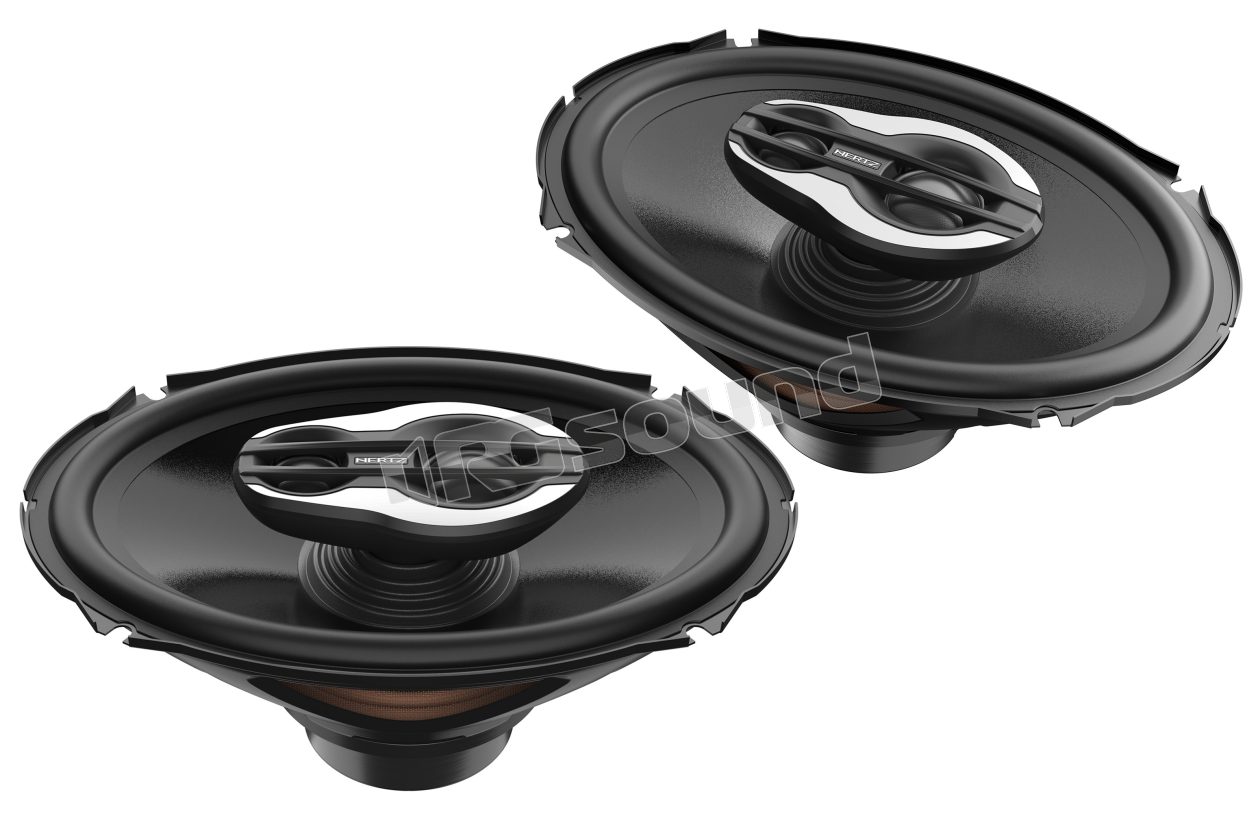

Hertz SX 690 H pair of coaxial tweeters 6x9" SPL three-way, 260 Watt power

The Hertz SX 690 H is a set of three-way coaxial tweeters 6"x9", designed to guarantee excellent audio performance in any type of car audio installation. This model combines advanced technologies and high-quality materials to offer powerful and clear sound reproduction, ideal for those who want an engaging audio experience in the car.

The 1.4" dome tweeter and the 1" supertweeter integrated guarantee precise reproduction of high frequencies, while the 6"x9" pressed cellulose woofer handles low and mid frequencies, ensuring deep and rich bass. The robust structure and innovative design of the cellulose cone, treated to resist humidity and UV rays, guarantee its durability even in the most demanding environmental conditions.

The SX 690 H is designed for a nominal power of 130W RMS, with a peak power of 260W, guaranteeing wide sound dynamics even at high volumes. With a frequency response ranging from 45 Hz to 24 kHz, this set offers a wide spectrum of sounds, maintaining crystal-clear performance for both high and low tones.

Installation is simple and versatile thanks to compact dimensions and compatibility with different types of vehicles. The double Faston terminals make the connection quick and secure, also allowing integration with other existing audio systems. The included grille protects the speaker without compromising sound quality, adding an elegant aesthetic touch. The Hertz SX 690 H is the perfect choice for those looking for an upgrade to their car's audio system, combining high performance, reliability and compact design.

Hertz SX 690 H technical specifications

  • SPL coaxial
  • Size mm (inches) inches 6 x 9
  • Nominal power - continuous W 130
  • Nominal power - peak W 260
  • Impedance Ohm 4
  • Tweeter diaphragm mm (inches) 29 (1.14)
  • Woofer voice coil Ø mm (inches) 38 (1.5)
  • Tweeter voice coil Ø mm (inches) 25 (1)
  • Frequency response Hz 65 ÷ 24k
  • Woofer magnet size D x d x h mm (inches) 110 x 45 x 20 (4.33 x 1.77 x 0.79)
  • Tweeter magnet size D x h mm (inches) 24.5 x 6 x 3.5 (0.96 x 0.24 x 0.14)
  • Weight of one speaker kg (lb.) 1.69 (3.73)
  • Woofer magnet Special Neodymium N38 H
  • Tweeter magnet Special Neodymium N38 H
  • Cone Pressed paper water-repellent
  • Dome Tetolon
€ 279,00 Price incl. VAT
