SX 380 D.1 SPL Subwoofer

Hertz

Discontinued

Your price:
€ 359,00
Price per single item (VAT included)
Type
Subwoofer
Speaker Size
380 mm
MAX Power
4000 Watt
RMS Power
1000 Watt
Frequency Response
25 - 600 Hertz
Sensitivity
92 dB
Impedance
2 + 2 Ohm
Weight
12,2 Kg
Installation Depth
181 mm
Woofer Material
pressed paper

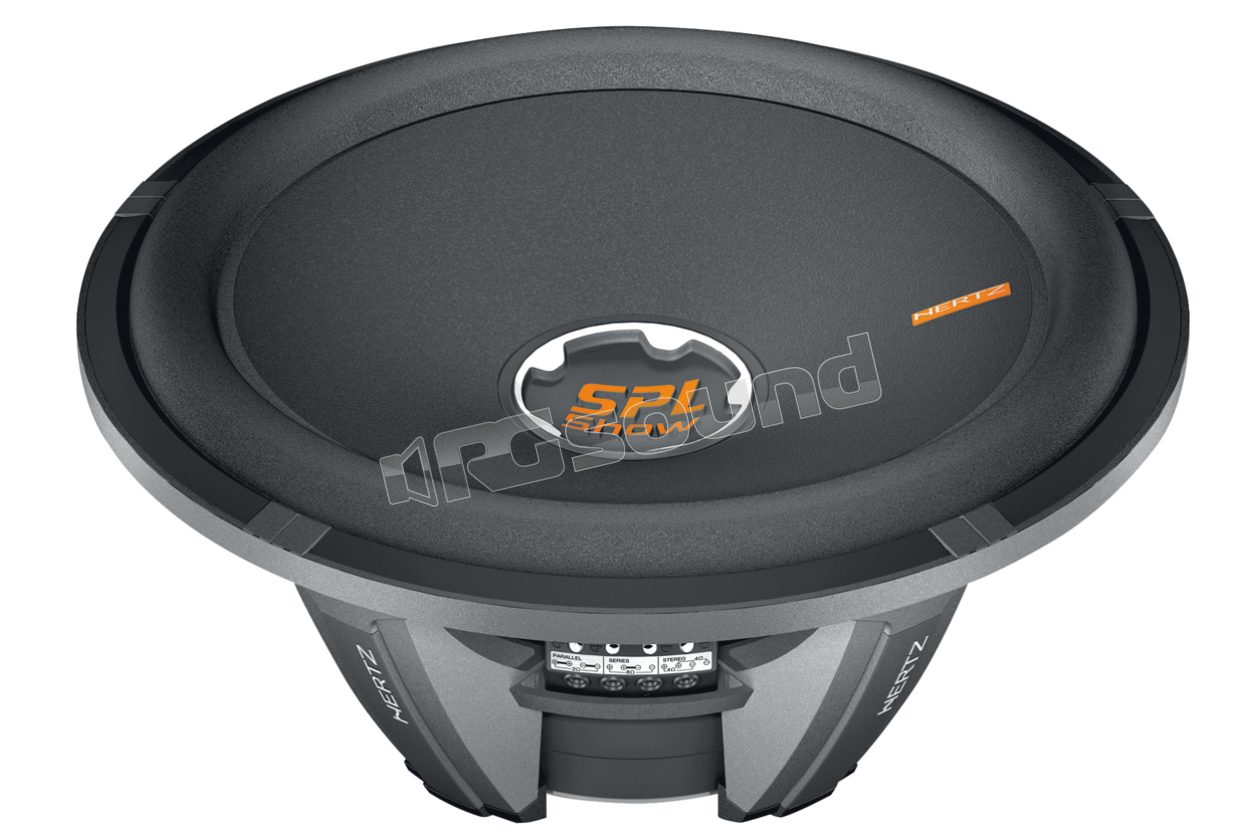

Hertz SX 380 D.1 380mm dual magnet subwoofer, with impedance of 2 + 2 Ohm, RMS power 1,000W and maximum power 4,000W

The moving assembly has been designed to guarantee wide and linear excursions. The SPL Show subs, ideal for creating systems oriented towards low frequencies, are equipped with a dual spider and a voice coil with aluminum wire wound on four layers. The ventilated spider support ensures cooling of the voice coil temperature even during high SPL performance.

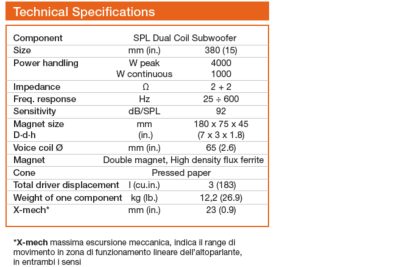

SX 380 D.1 main features

Size 380 mm (15")

Maximum power 4000 W

Rated power 1000 W

Impedance 2 + 2 Ω

Frequency response 25 ÷ 600 Hz

Sensitivity 92 dB SPL

Voice coil Ø 65 mm (2.6")

Dual ferrite magnet with high flux density

Cone in treated and pressed cellulose

Xmax 14 mm

X-mech 23 mm (0.9")

Re 4 Ω

Fs 43 Hz

Vas 45 l

Qts0,67

Qes0,7

Qms9,3

Spl dB92

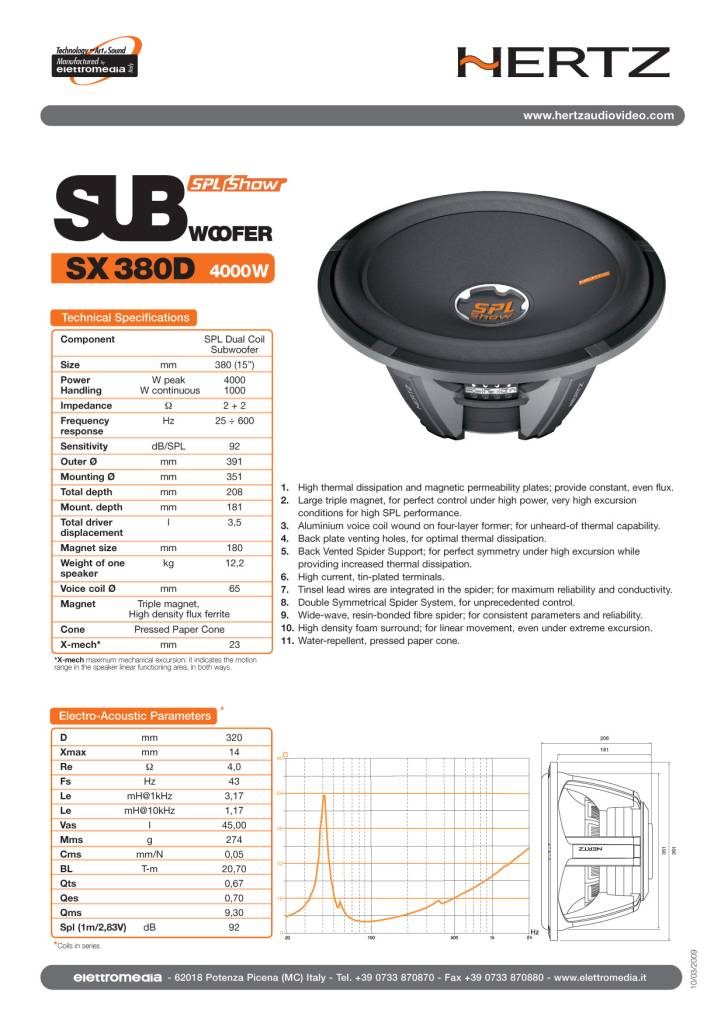

Scheda Tecnica

20090515132106-hertz-sx380d-tech.pdf

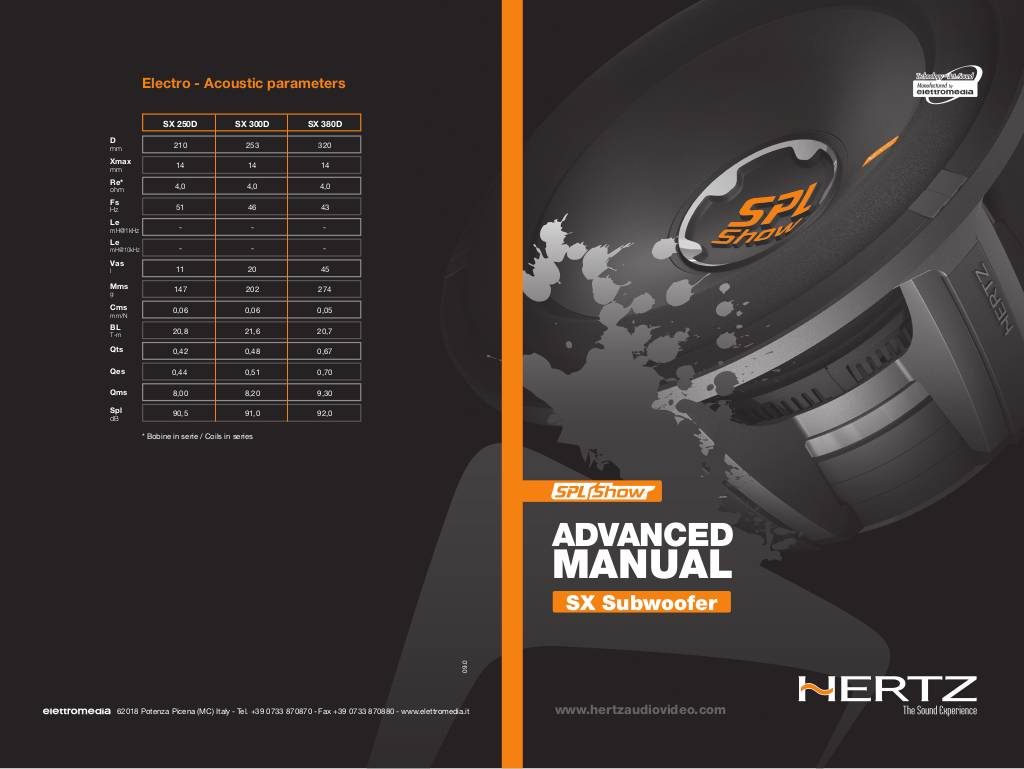

Manuale e progetti box

20141128143747-hertz-sx-2010-advancedmanual.pdf
