SX 300 D.1 SPL SUB

Hertz

Discontinued

Your price:
€ 334,00
Price per single item (VAT included)
Type
Subwoofer
Speaker Size
320 mm
MAX Power
3200 Watt
RMS Power
800 Watt
Frequency Response
28 - 700 Hertz
Sensitivity
91 dB
Impedance
2 + 2 Ohm
Weight
11,8 Kg
Installation Depth
170 mm
Woofer Material
pressed paper

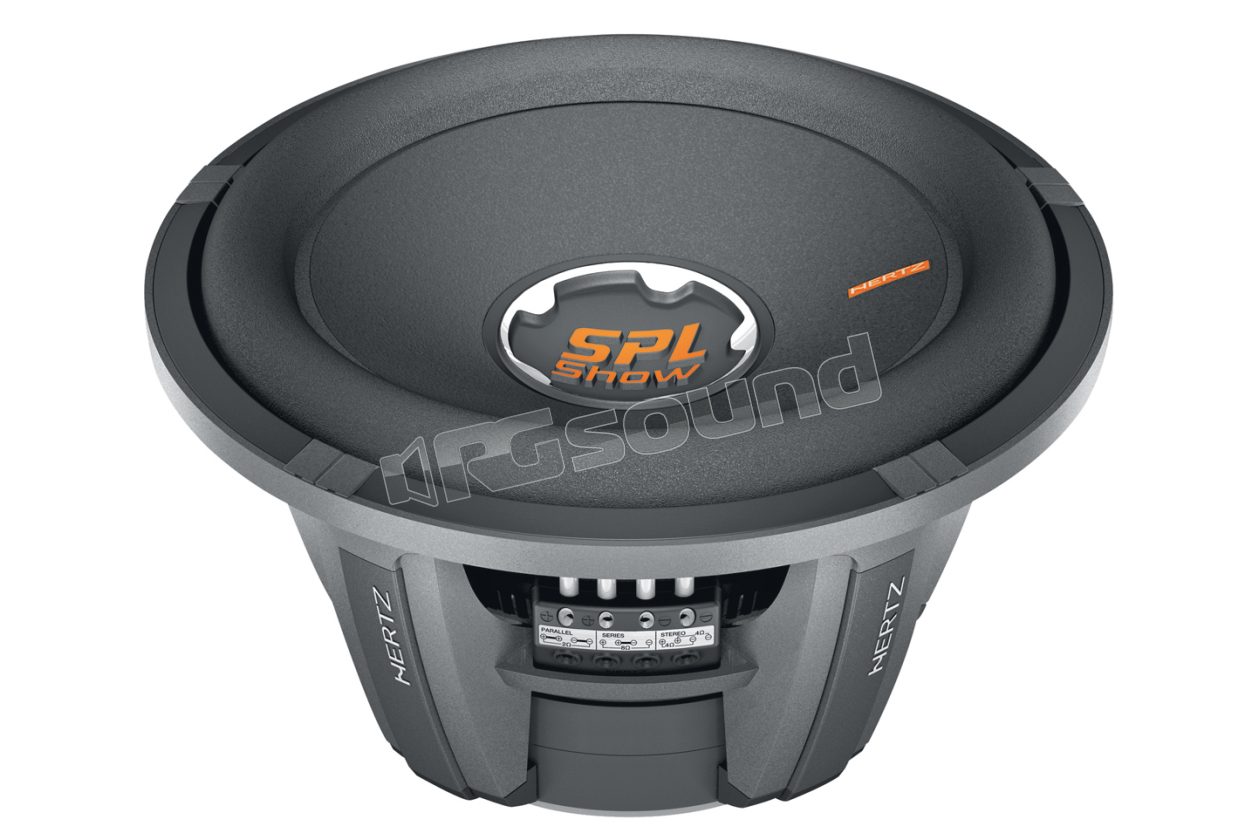

Hertz SX 300 D.1 300mm subwoofer designed for competition and SPL, dual voice coil 2 + 2 ohm high excursion.

Hertz SPL Show subwoofers are the ideal solution for creating systems oriented to bass frequencies.
Triple magnet subwoofers with dual voice coil, all with 2 + 2 ohm impedance, SX 250D, SX 300D, SX 380D differ in cone diameter size: 250 mm, 300 mm, 380 mm.


The moving assembly has been designed to guarantee wide and linear excursions. The SPL Show units are equipped with a dual spider and a voice coil with aluminum wire wound on 4 layers longer than standard.
Back Vented Spider Support ensures cooling of the voice coil temperature even during high SPL performance. And to reach even higher sound pressure levels, it is sufficient to connect the two voice coils in parallel to maximize the amplifier's power.

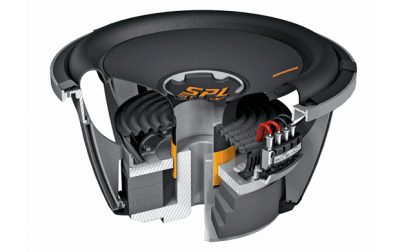

3D Section

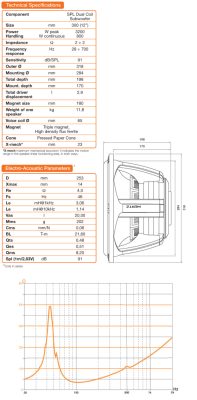

Scheda Tecnica

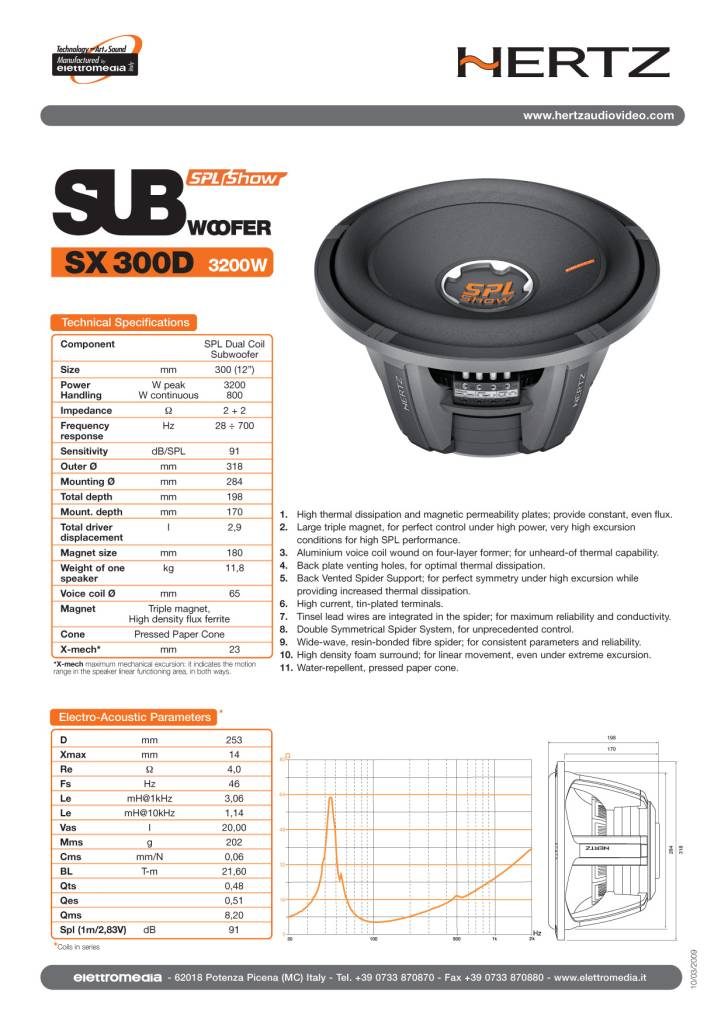

20090515131250-hertz-sx300d-tech.pdf

Manuale e progetti box

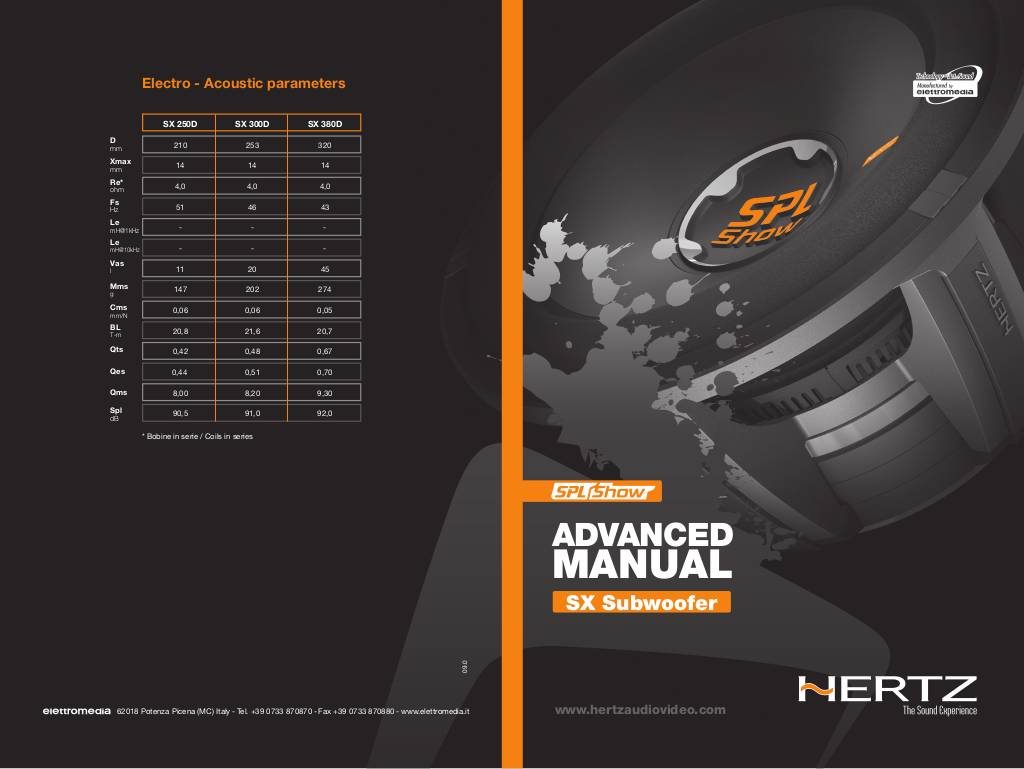

20141203111328-hertz-sx-2010-advancedmanual.pdf
