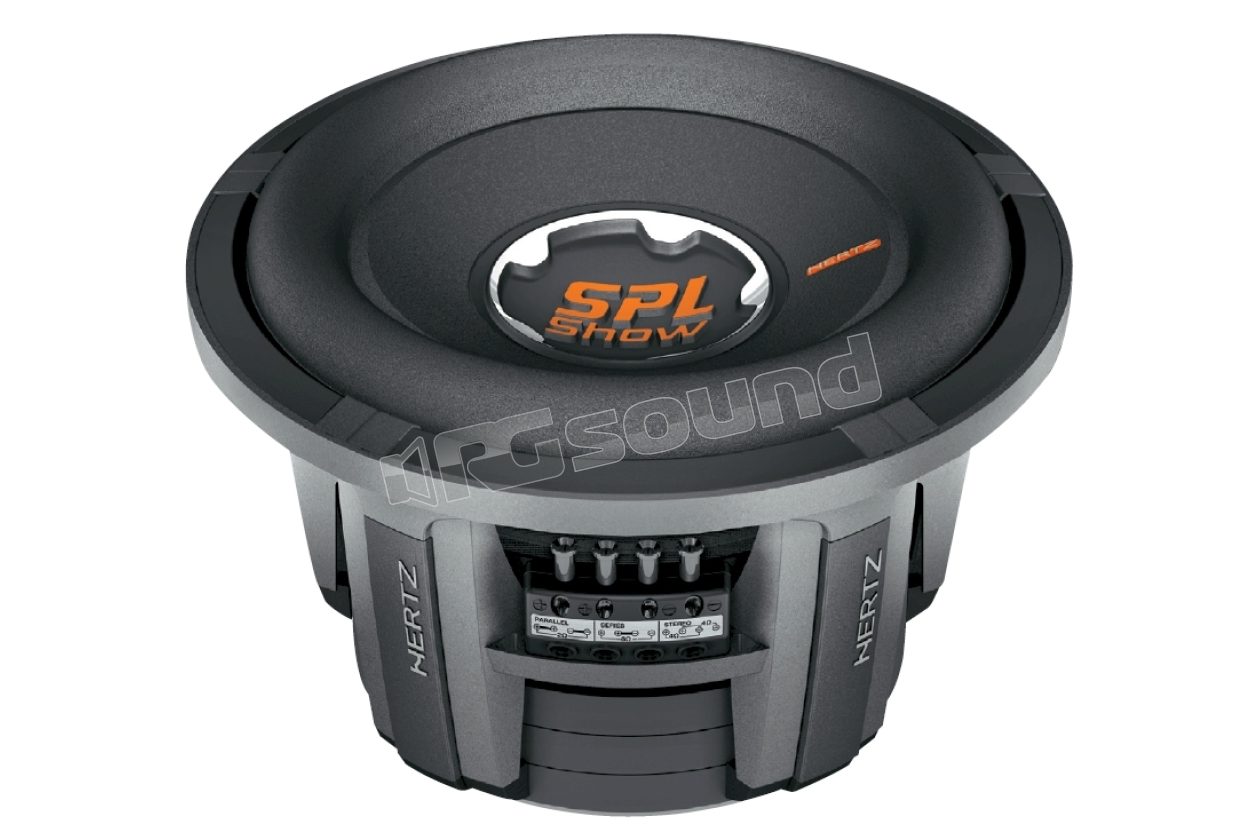

SX 250 D.1 SPL SUB

Hertz

Discontinued

Your price:
€ 269,00
Price per single item (VAT included)

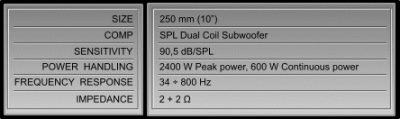

Type
Subwoofer
Speaker Size
250 mm
MAX Power
2400 Watt
RMS Power
600 Watt
Frequency Response
34 - 800 Hertz
Sensitivity
90,5 dB
Impedance
2 + 2 Ohm
Weight
11,6 Kg
Installation Depth
160 mm
Woofer Material
pressed paper

250mm subwoofer specifically designed for competition and SPL, dual coil 2 + 2 ohm high excursion.

The Hertz SPL Show subwoofers are the ideal solution for creating systems oriented towards low frequencies.
Subwoofers with triple magnet and dual coil, all with impedance of 2 + 2 ohm, SX 250D, SX 300D, SX 380D differ in the size of the cone diameter: 250 mm, 300 mm, 380 mm.


The moving assembly has been designed to guarantee wide and linear excursions. The SPL Show models are equipped with a dual spider and a coil with aluminum wire wound on 4 layers longer than standard.
Back Vented Spider Support ensures cooling of the coil temperature even during high SPL performance. And to achieve even higher sound pressure levels, it is sufficient to connect the two coils in parallel to fully exploit the amplifier's power.

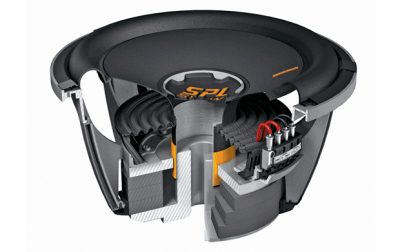

3D Section

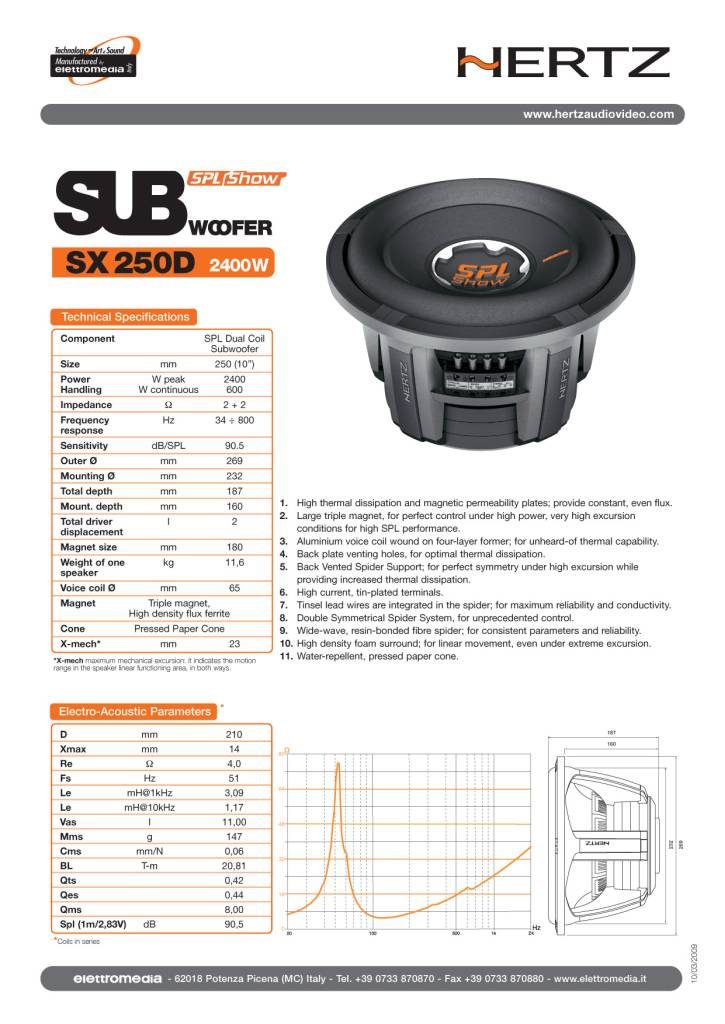

Scheda Tecnica

20090515130952-hertz-sx250d-tech.pdf

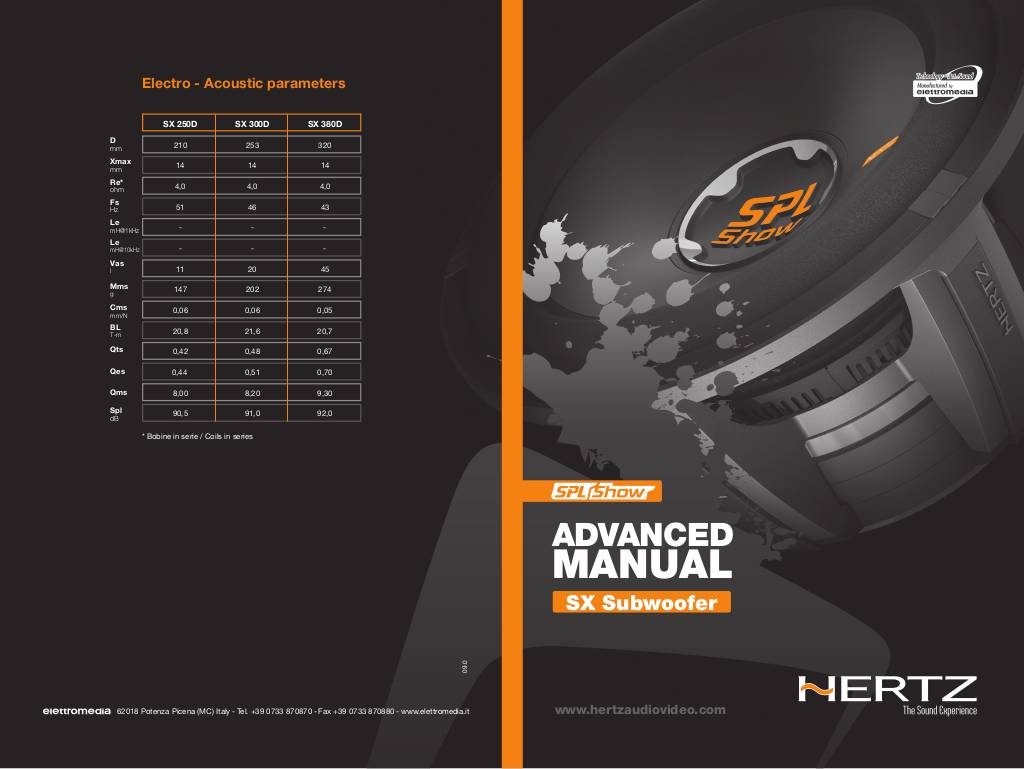

Manuale e progetti box

20141203111346-hertz-sx-2010-advancedmanual.pdf
Discontinued
