SX 200 Neo 200 mm SPL coaxial speaker

Hertz
Your price:
€ 269,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to

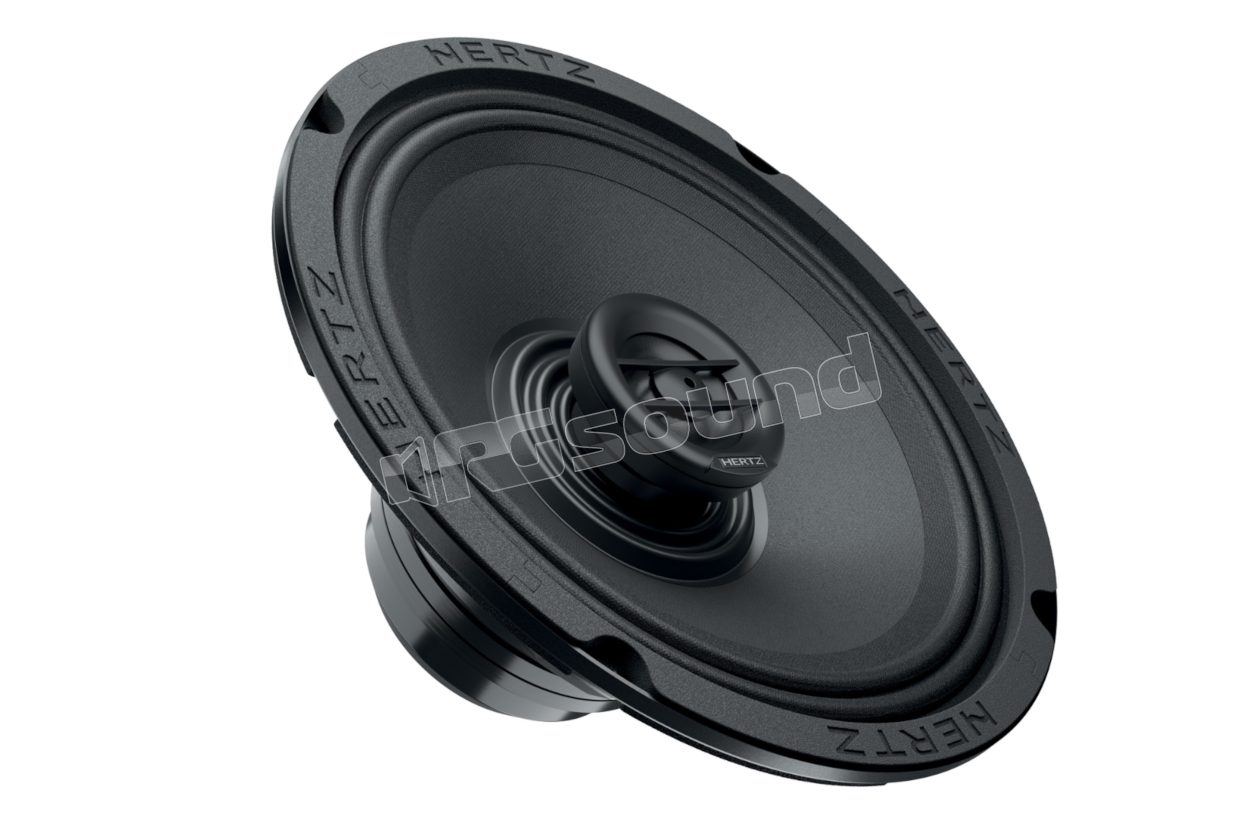

Hertz SX 200 Neo 200 mm Coaxial SPL

The coaxial SX 200 NEO SPL cone is made of high-rigidity pressed paper that is nature-proof, with innovative water/humidity-resistant treatments and UV protection. The double-layer copper voice coil, wound on a polyamide support, guarantees unprecedented power handling. The new motors are made of special Neodymium N38 H to achieve minimal size and higher performance. SX 200 NEO is equipped with a 1.4" Hi-SPL tweeter with PEI dome, solid-state resettable protection circuit and protective rubber seal for high SPL and safe outdoor use.

SX 200 Neo Features

  • High-rigidity pressed paper cone that is nature-proof, with innovative water and humidity-resistant treatments and UV protection.
  • Extreme and durable SPL performance in compact dimensions and reduced weight thanks to the N38 H neodymium magnet.
  • Unprecedented power handling thanks to the double-layer copper voice coil, wound on a polyamide support.
  • 1.4" PEI dome tweeter with neodymium magnet and resettable solid-state tweeter protection circuit.
  • Double spade terminals allow cascading connection of multiple units and compatibility with the most common motorcycle connections.

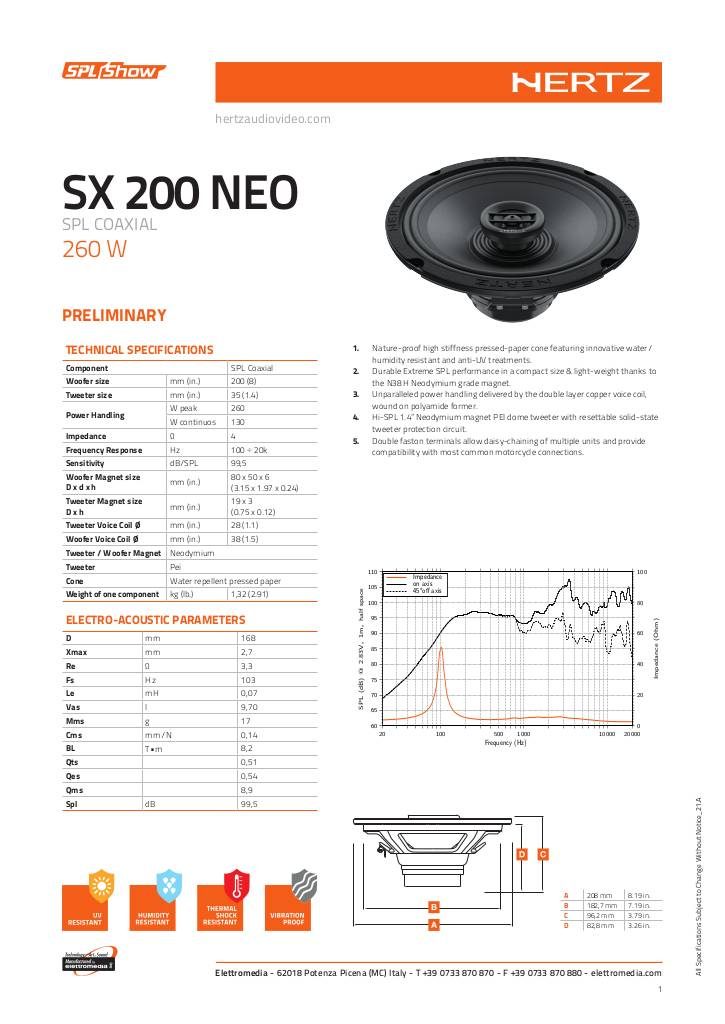

Scheda tecnica

n-20250514100254-sx200neo.pdf

Hertz SX 200 Neo Technical Specifications

  • COAXIAL SPL Component
  • Size mm 200
  • Power handling - continuous W 130
  • Power handling - Peak W 260
  • Impedance Ohm 4
  • Depth mm 82.8
  • Tweeter diaphragm mm (in.) PEI
  • Woofer voice coil Ø mm 38
  • Tweeter voice coil Ø mm 28
  • Frequency response Hz 100 ÷ 20k
  • Woofer magnet dimensions D x d x h mm 80 x 50 x 6
  • Tweeter magnet dimensions D x h mm 19 x 3
  • Weight of one speaker kg 1.32
  • Woofer magnet Special neodymium magnet N38 H
  • Tweeter magnet Special neodymium N38 H
  • Cone Water-repellent pressed paper
€ 269,00 Price incl. VAT
