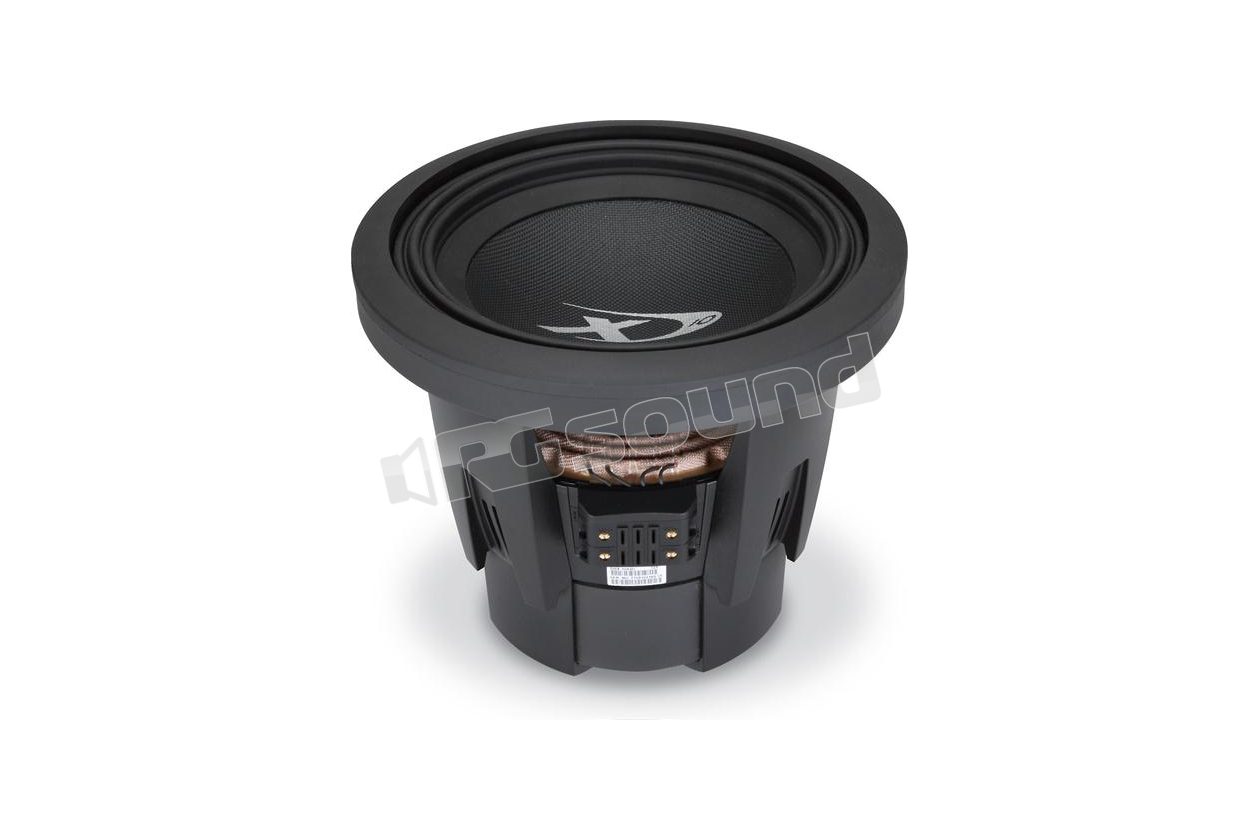

SWX-1043D

Alpine

Discontinued

Your price:
€ 374,90
Price per single item (VAT included)
Type
Subwoofer
Speaker Size
250 mm
MAX Power
3000 Watt
RMS Power
1000 Watt
Frequency Response
22 - 500 Hertz
Sensitivity
83 dB
Impedance
4 + 4 Ohm
Installation Depth
221 mm
Woofer Material
Fibra di Carbonio & Alluminio

10"(25cm) Subwoofer (4Ohm + 4Ohm)

Features

  • Designed and Engineered in USA
  • Mounting Holes Concealed by Gasket
  • Gold Plated Terminals with Jumper to Simplify Connection
  • Terminals on One Side Only
  • Large Strontium Magnet
  • Multi-Roll Suspension with High Excursion in Santopren
  • Optimized Spider in Nomex®
  • T-Drive Motor Structure with Heat Transfer System
  • Multi-Stage Ventilation System
  • Integrated Spider Landing and Heat Transfer Plate
  • Dual Coil Design, 4 Layers, temperature management up to 220°
  • Basket with Aluminum Elements
  • Cone Made of Carbon Fiber & Aluminum

Power Specifications

  • MAX Power of 3000 W
  • RMS Power of 1000 W
  • Impedance : 4 + 4 Ohm
  • Sensitivity 83dB/W (1m)
  • Frequency Response : 22-500Hz
  • Installation Depth : 221 mm
  • Installation Diameter : 231mm

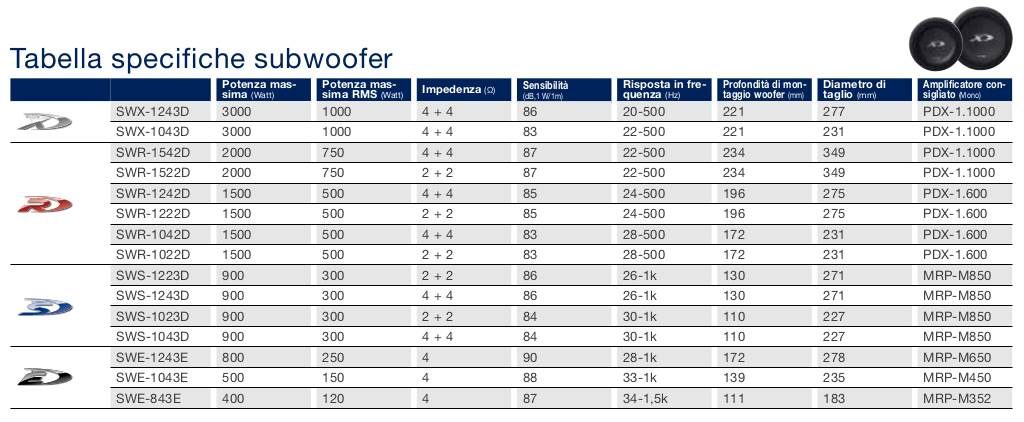

tabella specifiche tecniche

20070809005938-vergleich-subw-it.pdf
