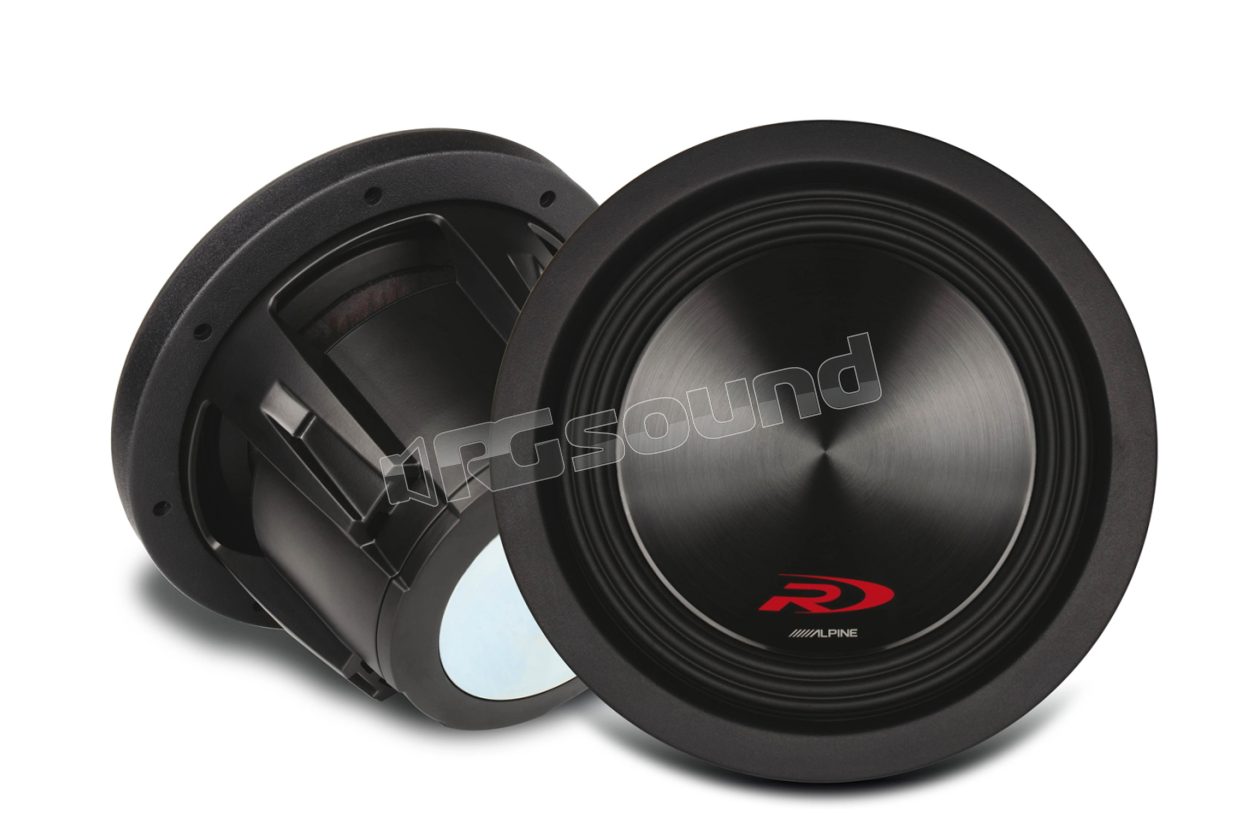

SWR-8D2

Alpine

Discontinued

Your price:
€ 175,10
Price per single item (VAT included)

SWR-8D4 - Type-R Subwoofer 20 cm Dual Coil 2 Ohm + 2 Ohm

The fifth generation of Type-R subwoofers delivers increasingly cleaner, deeper, faster and more accurate bass with even greater power output.

Speaker Rating:

Max RMS Power: 350W
Peak Maximum Power: 1000W


Extreme bass in less space

The Type-R Subwoofers have been completely redesigned to offer more installation flexibility and greater application versatility for building your ideal audio system. At 115 mm of mounting depth for the 8" (20 cm) this new design offers even greater output capability.
More excursion = More power.

The new FEA-Optimized Motor Structure together with the revolutionary High-Amplitude Multi Roll (HAMR) suspension design provides the new Type-R subwoofers with the greatest excursion and SPL in the category. The 12mm X-Max measurement gives the new 8" (20cm) Type-R the power advantage in its category, ultra-low distortion and unmatched sound quality.


Motor with Greater Force = More Control

Starting from the new magnet structure segmented into ten pieces, the new Type-R subwoofers offer more powerful and precise bass with perfect movement control. The new magnet is an integral part of the new generation Alpine's Patented Radial Vented VC cooling system.
Keep it Cool = Keep it Playing

Alpine's Patented Radial Vented VC Heatsink and Airflow Management System (US Patent #7,634,101) helps minimize power compression and ensures reliability over time without loss of power, without overheating the coil. The new one-piece aluminum chassis uses the entire structure as a large heat sink, to ensure always perfect management and uncompromising power delivery, even in the most extreme applications.


FEA optimized = Maximum Linearity

Alpine's Patented Compound Radius Curve technology guarantees an ultra-symmetric magnetic field, optimizing flux density, to reduce distortion, improving power and output retention.
Even greater power

The oversized 38 mm voice coil allows for increased power handling of 350W RMS / 1000W Peak.

To achieve maximum performance, it is recommended to combine a PDX Digital amplifier with the new Type-R.

Alpine's Unique Technology

1. FEA Optimized HAMR Surround

The large amplitude of the Multi Roll suspension allows extreme excursions without sacrificing valuable cone space. FEA optimized guarantees superb linearity and made with an injection mold in Santoprene®, this HAMR surround is a fundamental part of the suspension system, allowing extreme excursions with total control without distortion.

2. FEA optimized Spider with Reinforced Layers

Ensures reliable and consistent control to eliminate any possible mechanical noise or interference typical of many high excursion devices.

3. Vented VC Heat Sinks & Airflow Management

Actively manages coil temperatures by forcing air directly into the heat sink system.

4. FEA optimized Motor Structure

Allows you to create a symmetric magnetic field, optimizing flux density to significantly reduce distortion, further improving power and output retention.

FEATURES

  • Diaphram
  • Material Reinforced Parabolic Cone Structure with Poly-Mica Dust Cap & Pulp-Kevlar Cone Body
  • Design: 2-Piece Structural Parabolic
  • Surround
  • Material: Injected Molded Santoprene®
  • Design: High Amplitude Multi-Roll
  • Spider
  • Material: Nomex®
  • Design: Progressive Conex® Spider with Reinforced Layer Tinsel Leads
  • Voice Coil
  • Material: 38mm Voice Coil with High-Temp
  • Design: 4-Layer DVC Winding on Spiral Cut
  • Motor Structure
  • Pole Geometry: Extended Pole Geometry
  • Configuration: Compound Radius Curve
  • Frame
  • Material: Cast Aluminum
  • Design: Perimeter Vented Heat Transfer
  • Terminals
  • Layout: One Side
  • Design: Heavy Duty 10mm² Push with Housing, Banana Plug Jumper
  • Tinsel Leads
  • Design: Reinforced Layer Spider Integration (Patent #6,810,988)
  • Gasket
  • Design: Concealed Mount Gasket (Integrated Grille System Ready, US Pat #7,760,900)

SPECIFICATIONS

  • Power Handling
  • RMS Power Handling: 350 Watts
  • Peak Power Handling: 1000 Watts
  • Dimensions
  • Mounting Depth: 115 mm
  • Mounting Diameter: 176 mm
  • Displacement: 1.4l
  • Added Volume: 1.0l
  • General
  • Nominal Impedance: 2 Ohm + 2 Ohm
  • Frequency Response: 30-200 Hz


Scheda tecnica

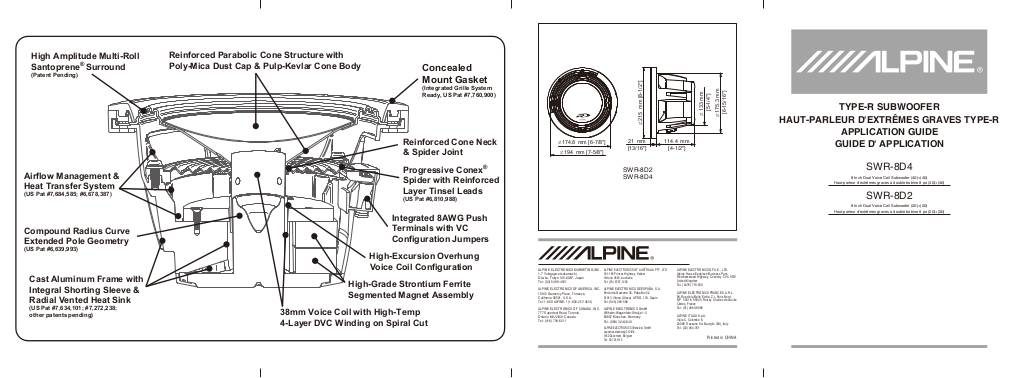

n-20180214115821-om-swr-8d2-en.pdf
Discontinued
