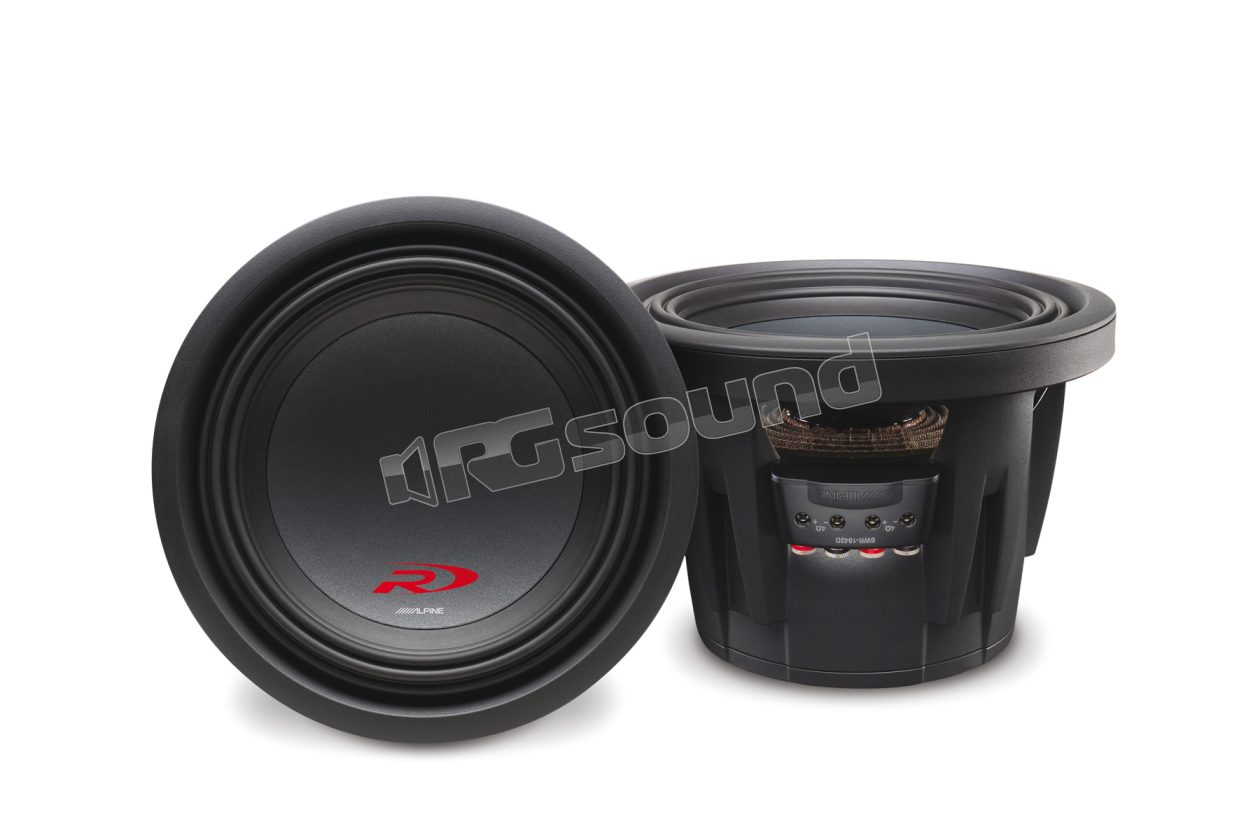

SWR-1023D

Alpine

Discontinued

Your price:
€ 178,50
Price per single item (VAT included)
Type
Subwoofer
Speaker Size
250 mm
MAX Power
1800 Watt
RMS Power
600 Watt
Frequency Response
26-200 Hertz
Impedance
2 Ohm
Installation Depth
149 mm
Woofer Material
Kevlar

SWR-1023D - Type-R 25 cm Subwoofer dual voice coil 2 ohm + 2 ohm
The fourth generation of Type-R subwoofers delivers increasingly clean, deeper, faster and more accurate bass with even greater power output

Extreme bass in less space
Type-R Subwoofers have been completely redesigned to offer more installation flexibility and greater application versatility to build your ideal audio system. With 149 mm for the 25cm. and 161.8 mm for the 30 cm., these new models offer a 20% reduction in mounting depth compared to the previous series, while also offering greater output power.

More excursion = More power

The new FEA-Optimized Motor Structure combined with the revolutionary High-Amplitude Multi Roll (HAMR) suspension design delivers the new Type-R subwoofers with the greatest excursion and SPL in its category.
The 21 mm X-Max measurement gives the new Type-R the power advantage in its category, ultra-low distortion and unparalleled sound quality.

Motor with greater Force = More Control

Starting from the magnet structure segmented into 10 parts, the Type-R subwoofer has motor force increased by 20% compared to the previous generation with even greater control. The new magnet structure is an integral part of the new generation cooling system "Alpine's Patented Radial Vented VC cooling system".

Keep it Cool = Keep it Playing

Alpine's Patented Radial Vented VC Heatsink and Airflow Management System (US Patent #7,634,101) helps minimize power compression and ensures reliable performance over time without power loss, without overheating the voice coil. The new one-piece aluminum chassis uses the entire structure as a large heat sink, to allow always perfect management and power delivery without compromise, even in the most extreme applications.

FEA optimized = Maximum Linearity

Alpine's Patented Compound Radius Curve technology guarantees an ultra-symmetrical magnetic field, optimizing flux density, to reduce distortion, improving power retention and output.

Ever greater power

The oversized 65mm voice coil offers 35% greater surface area, allowing a power handling of 600W RMS / 1800 W peak. For maximum performance, it is recommended to pair a PDX Digital amplifier with the new Type-R.

FEA Optimized HAMR Surround

The large amplitude of the Multi Roll suspension allows extreme excursions, without sacrificing valuable cone space. FEA optimized ensures superb linearity and made with Santoprene® injection molding, this HAMR surround is a fundamental part of the suspension system, allowing extreme excursions with total control without distortion.

FEA optimized Spider with reinforced Layers

Ensures reliable and consistent control to eliminate any possible mechanical noise or interference typical of many high-excursion devices.

Vented VC Heat Sinks & Airflow Management

Actively manages voice coil temperatures by forcing air directly into the heat sink system.

FEA optimized Motor Structure

Allows for the creation of a symmetrical magnetic field, optimizing flux density to significantly reduce distortion, further improving power retention and output.

FEATURES
Diaphragm

Material: Kevlar-Reinforced Pulp Fiber
Design: 2-Piece Structural Parabolic w/ H.A.M.R Surround (Patent Pending)

Surround

Material: Santoprene® injection molded
Design: High Amplitude Multi-Roll

Spider

Material: Nomex®
Design: Progressive

Voice Coil

Material: 180°C High Temp Wire on Spiral Cut Aluminum Former
Design: 65 mm 4-Layer Dual Voice Coil

Motor Structure

Pole Geometry: Compound Radius Curve (US Patent #6,639,993)
Configuration: Radial Vented VC Heat Sink and Airflow Management System (US Patent #7,634,101)

Frame

Material: Cast Aluminum
Design: Perimeter Vented Heat Transfer (Patent Pending), Integrated Shorting Sleeve and Airflow Management System

Terminals

Layout: One Side
Design: Heavy Duty 10 mm2 Push with Housing, Banana Plug Jumper

Tinsel Leads

Design: Reinforced Layer Spider Integration (Patent #6,810,988)

Gasket

Design: Concealed Mount Gasket System

SPECIFICATIONS
Power Handling

RMS Power: 600 Watts
Maximum Output Power: 1800 Watts

Dimensions

Mounting Depth: 149 mm
Mounting Diameter: 231 mm
Volume: 0.080 ft3
Added Volume: 0.055 ft3

General

Nominal Impedance: 2 Ohm + 2 Ohm
Frequency Response: 26-200 Hz

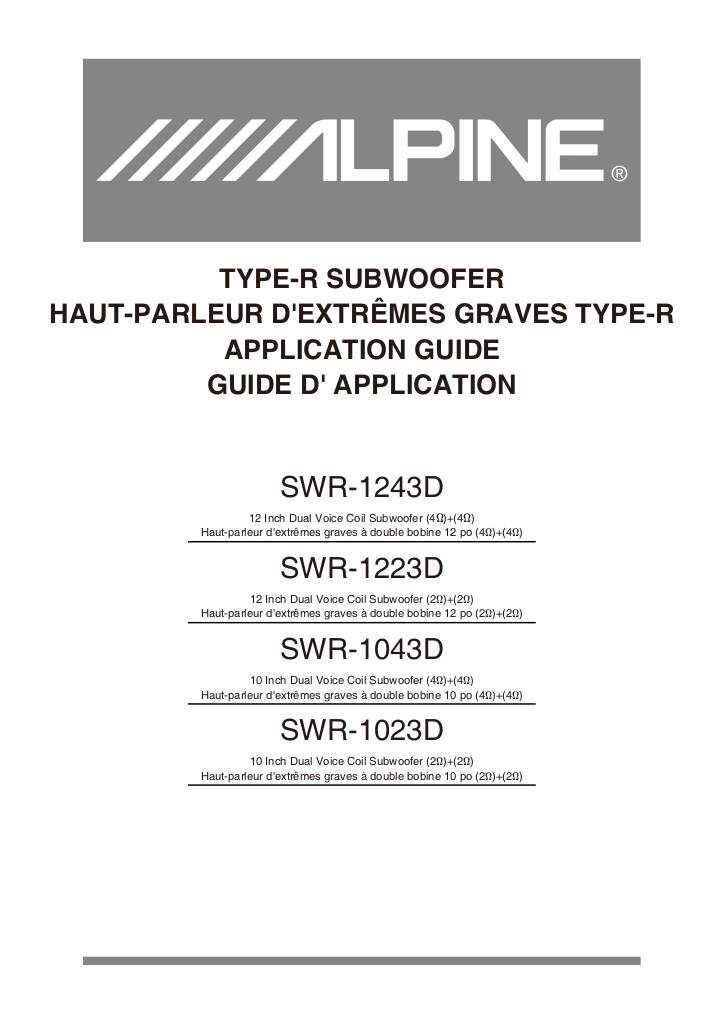

Manuale utente

20110504160750-om-swr-1023d-en.pdf
