SW3012

Clarion

Discontinued

Your price:
€ 89,00
Price per single item (VAT included)
Type
Subwoofer
Speaker Size
320 mm
MAX Power
700 Watt
RMS Power
350 Watt
Frequency Response
30 - 1000 Hertz
Sensitivity
89,61 dB
Impedance
4 Ohm
Weight
4,25 Kg
Woofer Material
fibra di vetro e carta

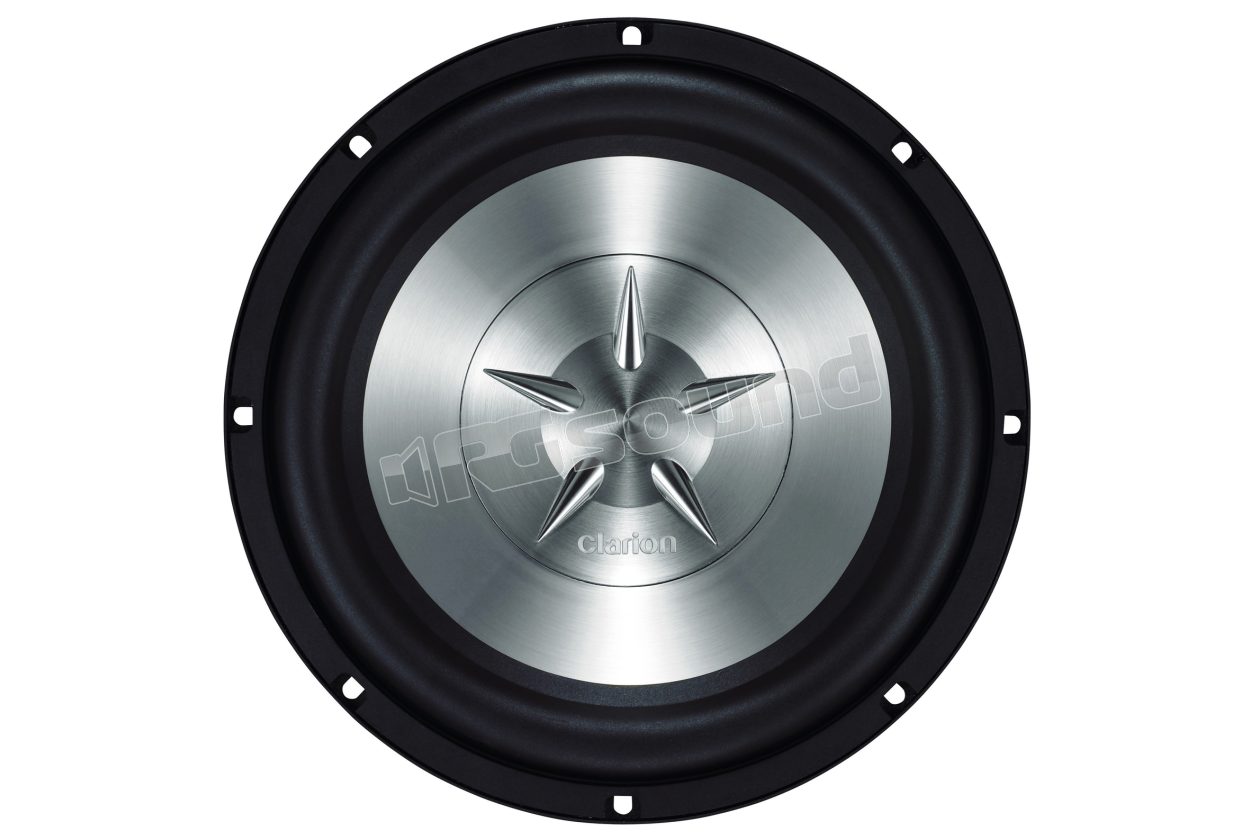

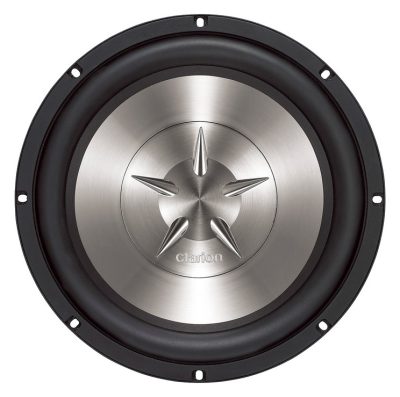

Clarion SW3012 subwoofer 300 mm (12") single coil - SW Series

Maximum music power 700 watts

RMS 350 watts

Heat-resistant single coil

Dust cap in aluminum treated with polypropylene

Cone in fiberglass/paper

Surround in highly flexible nitrile butadiene rubber

Dual strontium ferrite magnets

Polar extension with super extended ventilation

Cooling with S.E.T. (Spider Exhaust Technology)

Dual terminal connectors gold-plated

Spider in cotton with lamé inserts

Custom chassis with stamped steel powder coating

SW3012 features the die-cast aluminum chassis with powerful damping and a motor unit with dual strontium ferrite magnet delivering unprecedented bass presence. The field-tested Spider Exhaust Technology offers advanced thermal cooling for extended woofer service life and helps maintain optimal performance.

SW3012 FEATURES
Reproduction system Subwoofer
Speaker size (mm) 311 mm
4 ohm coil Single
Dust cap in aluminum and electrolyte-treated polypropylene ●
Cone in fiberglass/paper ●
Suspension in nitrile-butadiene rubber resistant to large temperature variations ●
Dual strontium ferrite magnets ●
Polar extension with super extended ventilation ●
Cooling with S.E.T. (Spider Exhaust Technology) ●
Dual gold-plated terminal blocks ●
Spider in cotton with lamé inserts ●
Custom chassis with stamped steel powder coating ●
Impedance: 3.6 Ω ±5 % ●
Peak reproduction power (W) 700
Continuous power (W) 350
Frequency response (Hz) 30 ~ 1 k
Efficiency (dB / W / m) 89.61
Total weight (kg) 4.25

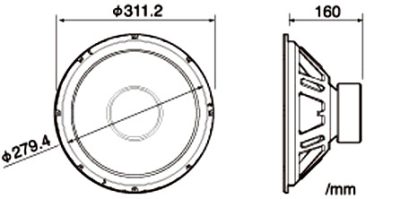

SW3012 DIMENSION DIAGRAM:
