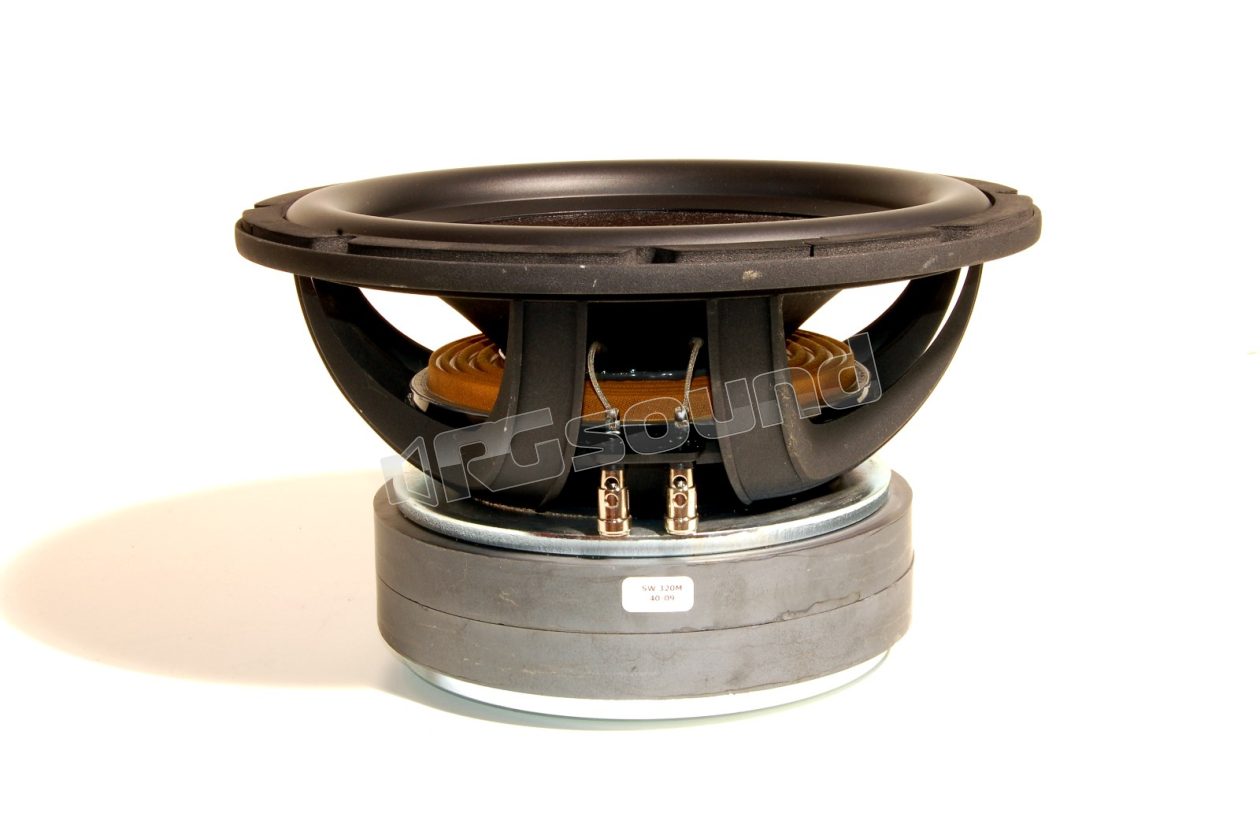

SW 320

Silence Lab

Discontinued

Your price:
€ 417,50
Price per single item (VAT included)
Type
Subwoofer
Speaker Size
320 mm
MAX Power
1500 Watt
RMS Power
750 Watt
Sensitivity
94 dB
Impedance
3,5 Ohm
Weight
15,50 Kg

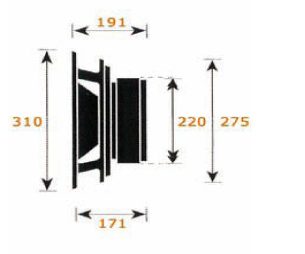

Installation Depth
171 mm
Woofer Material
Cellulosa trattata e sospensione in gomma

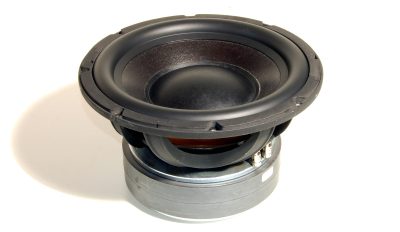

SW 320 is a subwoofer designed to play at rather low volumes.

The cone is cellulose, the suspension is rubber, the generous ferrite magnet consists of a dual ring 220 mm in diameter, the voice coil, wound on a Kapton support, is 100 mm. These construction qualities together with the balance of the parameters, give the SW 320 a deep and articulate response combined with remarkable speed and naturalness.

Parameters Re ohm 3.5
Fs Hz 33
Qm 10.27
Qe 0.27
Qt 0.27
Vas L 33.55
Xmax +/- mm 13
D mm 250
Mms g 227
Cms mm/N 0.10
B*l Wb/m 24.69
Le mH 3.17
Sens dB 94
Pn Watt 750
Bob mm 100
Kg 15.50

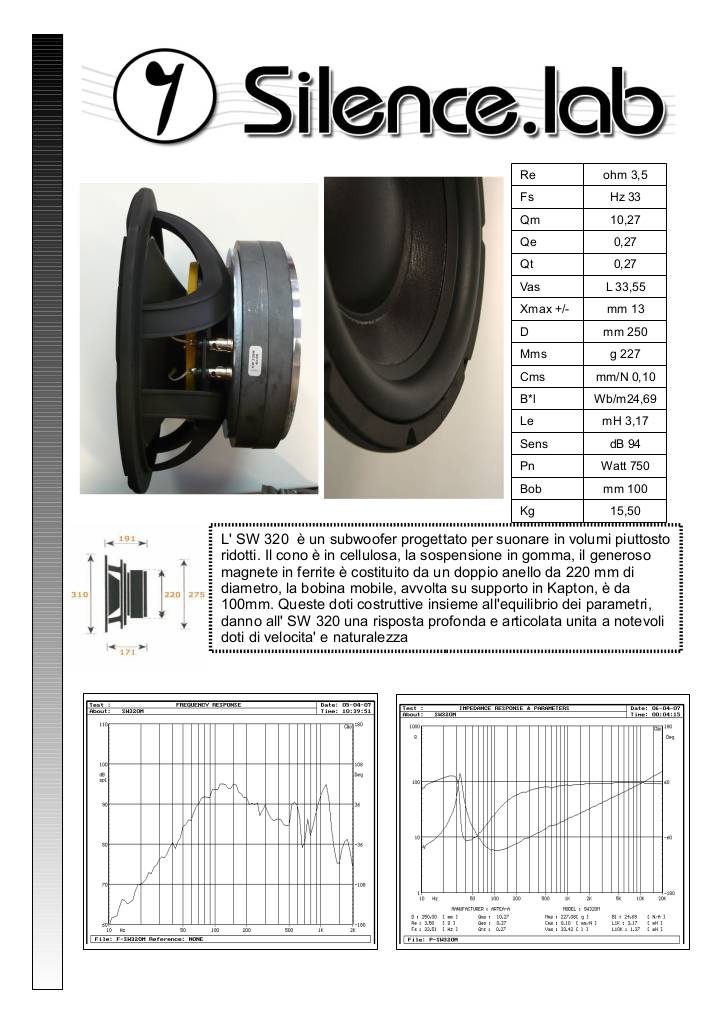

SW 320 scheda tecnica

20120119101756-data-sw320.pdf
Discontinued
