SV 200 Neo 20cm SPL woofers compatible with Harley-Davidson

Hertz
Your price:
€ 259,00
Price per pair (VAT included)
In stock, ready to ship
Calculating shipping costs to
Type
Woofer and midwoofer
Speaker Size
200 mm
MAX Power
500 Watt
RMS Power
200 Watt
Frequency Response
100 - 8.000 Hertz
Sensitivity
100 dB
Impedance
4 Ohm
Weight
1,2 Kg
Installation Depth
84 mm
Woofer Material
Cellulosa pressata

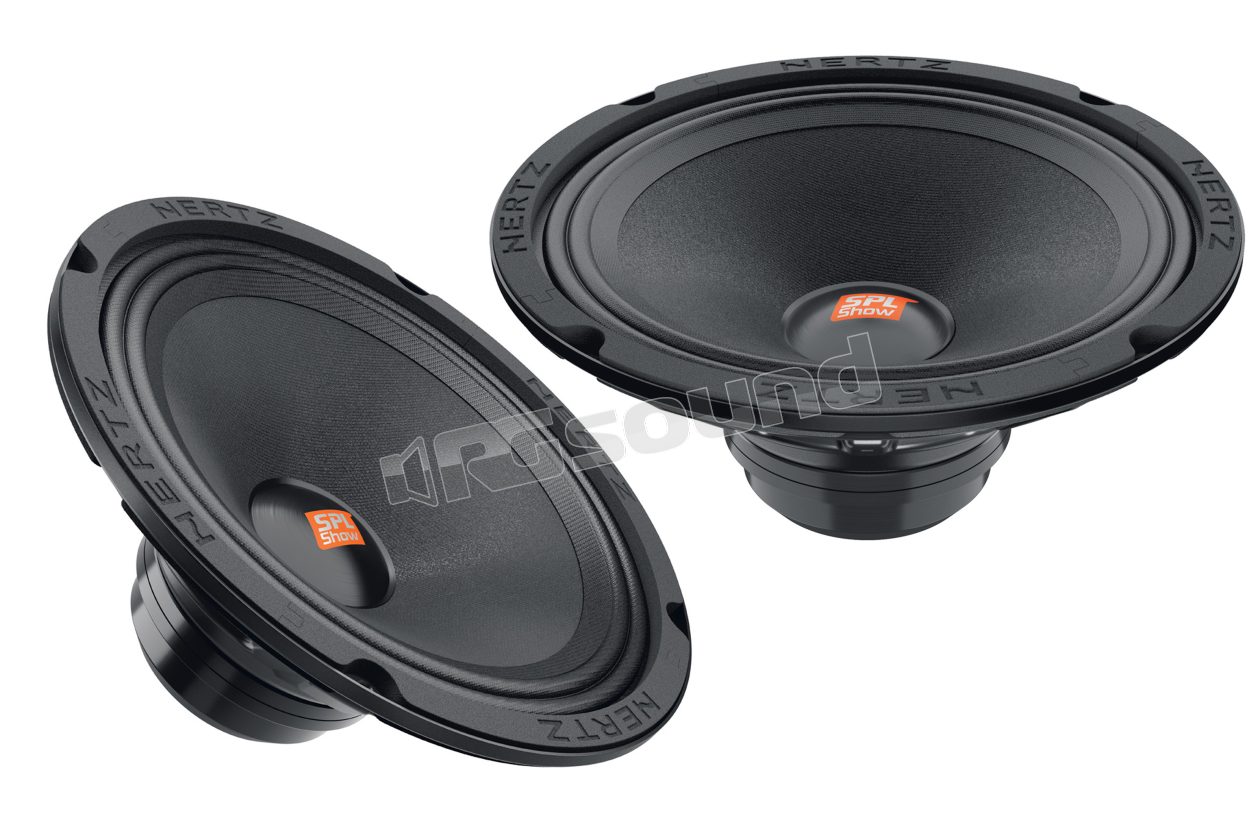

Hertz SV 200 Neo Pair of SPL 200mm woofers compatible for installation on Harley-Davidson

Pair of SPL woofers characterized by compact dimensions and lightweight while maintaining excellent performance thanks to the use of Neodymium N38 H for the motor units. The cones are equipped with waterproofing treatment and anti-UV and the conductors are insulated to prevent oxidation. The terminals and mounting holes are compatible for installation on Harley-Davidson motorcycles.

Features SV 200 Neo

  • Compact dimensions and reduced weight that preserve excellent performance thanks to the use of Neodymium N38 H for the motor units
  • Cone waterproofing and anti-UV treatment to allow safe outdoor use without discoloration over time
  • Motor units treated with cataphoresis and insulated cables to prevent oxidation
  • Terminals and mounting holes compatible for installation on Harley-Davidson motorcycles

Scheda tecnica

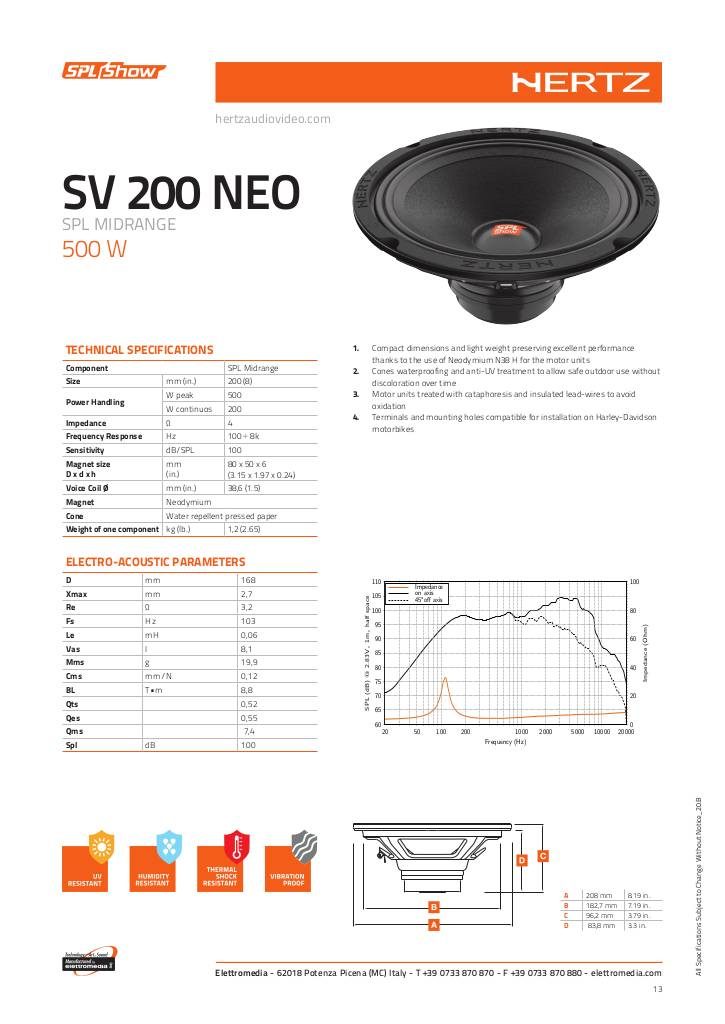

n-20210427123653-hertz-spl-neo-200-tech-sheet.pdf

Hertz SV 200 Neo Technical Specifications

  • SPL Speakers
  • Dimensions mm (in.) 200 (8)
  • Power handling - continuous W 200
  • Power handling - peak W 500
  • Impedance Ohm 4
  • Voice coil Ø 38.6 (1.5)
  • Frequency response Hz 100 ÷ 8k
  • Magnet dimensions D x d x h mm (in.) 80 x 50 x 6 (3.15 x 1.97 x 0.24)
  • Weight of one speaker kg (lb.) 1.2 (2.65)
  • Magnet Neodymium
  • Cone Pressed paper water-repellent
  • D mm 168
  • Re Ohm 3.2
  • Fs Hz 103
  • Le mH 0.06
  • Vas I 8.1
  • Mms g 19.9
  • Cms mm/N 0.12
  • BL T*m 8.8
  • Qts 0.52
  • Qes 0.55
  • Qms 7.4
  • Spl dB 100
€ 259,00 Price incl. VAT
