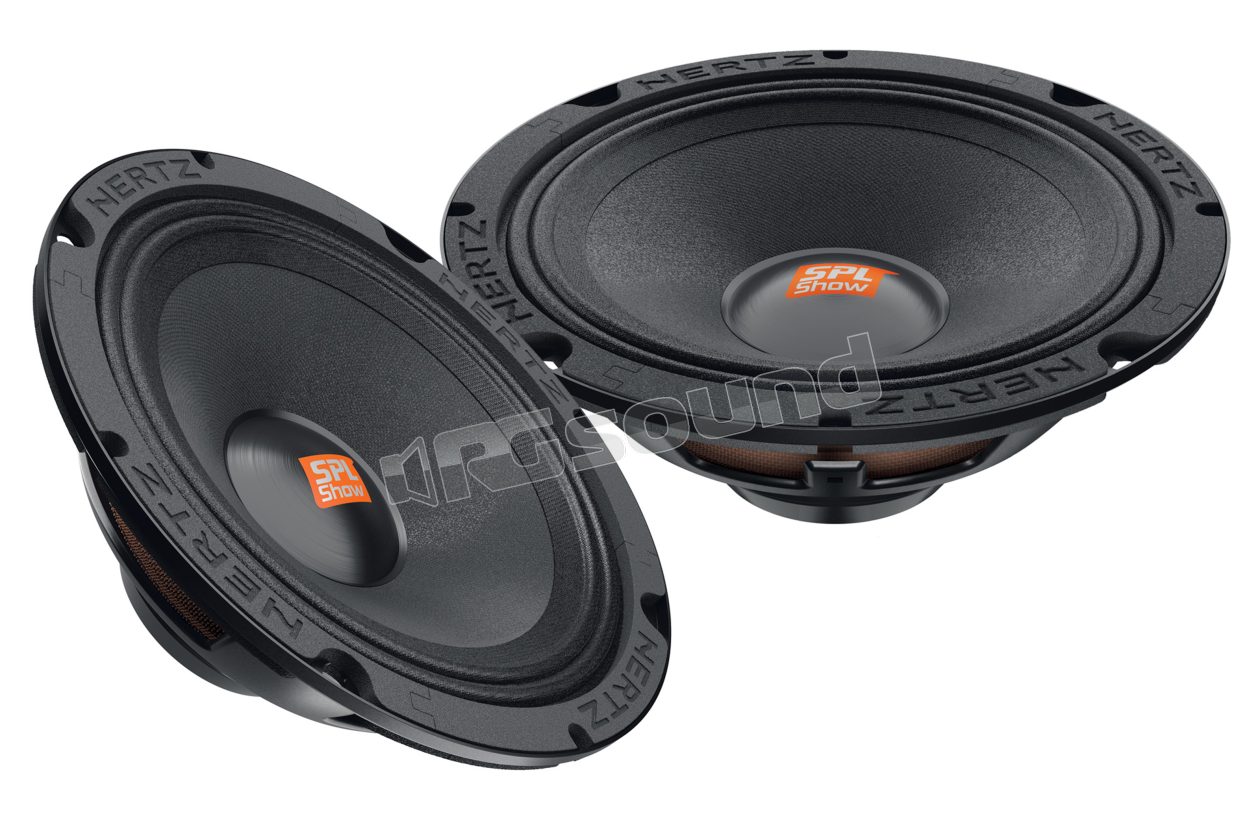

SV 165 Neo Pair of 165mm midrange speakers compatible with Harley-Davidson

Hertz
Your price:
€ 219,00
Price per pair (VAT included)
In stock, ready to ship
Calculating shipping costs to
Type
Midrange
Speaker Size
165 mm
MAX Power
400 Watt
RMS Power
150 Watt
Frequency Response
100 - 10.000 Hertz
Sensitivity
97 dB
Impedance
4 Ohm
Weight
0,9 Kg
Installation Depth
57 mm
Midrange Cone Material
Cellulosa pressata

Hertz SV 165 Neo Pair of 165mm midrange drivers compatible for installation on Harley-Davidson motorcycles

Characterized by compact dimensions and lightweight design while preserving excellent performance thanks to the use of Neodymium N38 H for the motor units. To allow safe outdoor use without discoloration over time, the cones are equipped with waterproof and UV-resistant treatment and the motor units are painted with cataphoresis with insulated conductors to prevent oxidation. The terminals and mounting holes are compatible for installation on Harley-Davidson motorcycles.

SV 165 Neo Features

  • Compact dimensions and reduced weight that preserve excellent performance thanks to the use of Neodymium N38 H for the motor units
  • Waterproofing of the cones and UV-resistant treatment to allow safe outdoor use without discoloration over time
  • Motor units treated with cataphoresis and insulated cables to prevent oxidation
  • Terminals and mounting holes compatible for installation on Harley-Davidson motorcycles

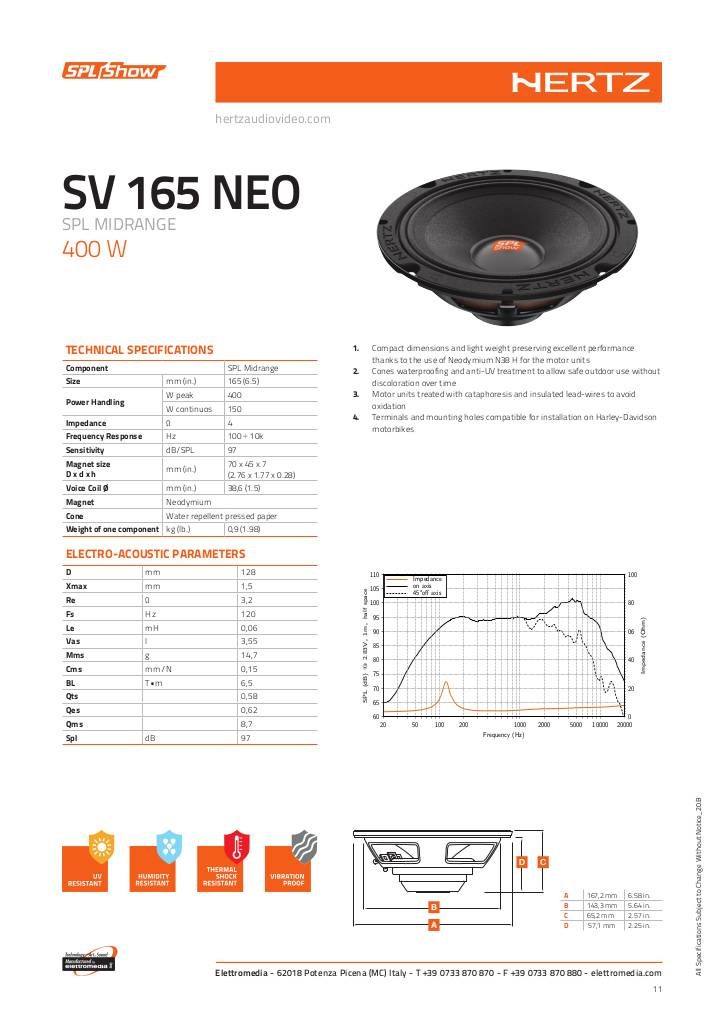

Scheda tecnica

n-20210427125539-hertz-spl-neo-165-tech-sheet.pdf

Hertz SV 165 Neo Technical Specifications

  • SPL Midrange Component
  • Dimensions mm (in.) 165 (6.5)
  • Continuous Power Handling W 150
  • Peak Power Handling W 400
  • Impedance Ohm 4
  • Voice Coil Ø 38.6 (1.5)
  • Frequency Response Hz 100 ÷ 10k
  • Magnet Dimensions D x d x h mm (in.) 70 x 45 x 7 (2.76 x 1.77 x 0.28)
  • Weight of one speaker kg (lb.) 0.9 (1.98)
  • Magnet Neodymium
  • Cone Water-repellent pressed paper
  • D mm 128
  • Re Ohm 3.2
  • Fs Hz 110
  • Le mH 0.06
  • Vas I 3.55
  • Mms g 14.7
  • Cms mm/N 0.15
  • BL T*m 6.5
  • Qts 0.58
  • Qes 0.62
  • Qms 8.7
  • Spl dB 97
  • Electroacoustic Specifications
€ 219,00 Price incl. VAT
