SUB1P 15 x 20 cm (6 x 8“) under-seat subwoofer

MUSWAY
Your price:
€ 143,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to

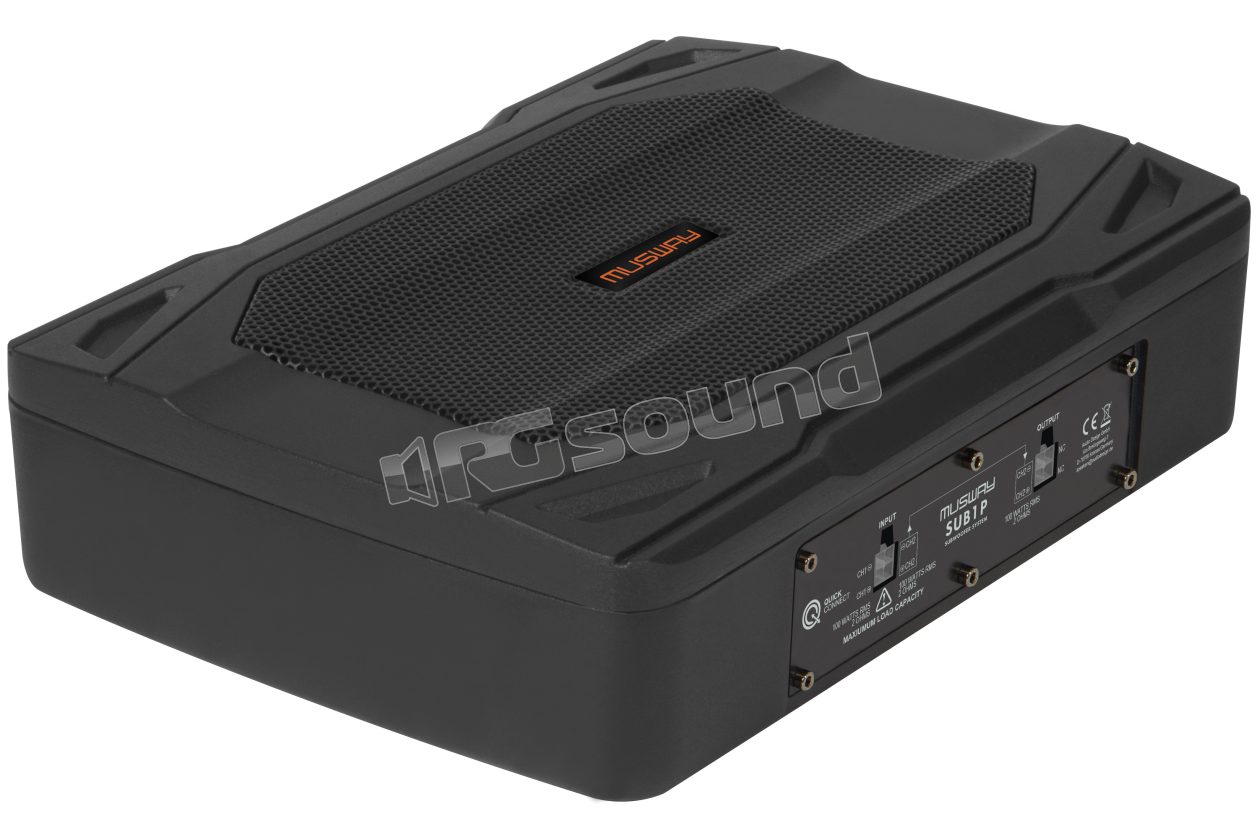

Musway SUB1P Under-seat Subwoofer 15 x 20 cm (6 x 8")

The compact subwoofer has no built-in amplifier and is designed for external power via separate amplifiers. Its purpose is easily explained: when installing an audio system with a multichannel amplifier, often one or even two additional channels are available. These are ideal for powering small external subwoofers. One or two SUB1P subwoofers can be connected directly to these outputs. This functionality is particularly useful with the Musway M5 and M6 models, as they can be easily connected via the included Quick Connect cable. Alternatively, small mono amplifiers are also perfectly suitable for operating the passive SUB1P versions. The main feature of the SUB1P is the integrated output for a second passive SUB1P. A second subwoofer can be connected to this output via the included 2-meter Quick Connect cable and positioned, for example, under the passenger seat. The difference in bass response with a second subwoofer is clearly audible and perceptible.

The SUB1P has an impedance of 2 ohm. For example, if a Musway M6 amplifier is connected via the included Quick Connect cable, initially only channel 5 of the amplifier is used. When adding a second SUB1P, this is connected to the output of the first SUB1P via the included QC cable. The second SUB1P is then magically powered by channel 6 of the amplifier, thanks to the pre-assembled plug+play cables.

Scheda tecnica

n-20260326123822-sub1p.pdf

Musway SUB1P Technical Specifications

  • 15 x 20 cm (6 x 8") subwoofer
  • in die-cast aluminum housing
  • 100 Watt RMS, 200 Watt Max.
  • Impedance 2 Ohm
  • 2 m Quick Connect connection cable
  • 20 cm Quick Connect adapter cable, for example for M5
  • Dimensions: 210 x 73 x 290 mm
€ 143,00 Price incl. VAT
