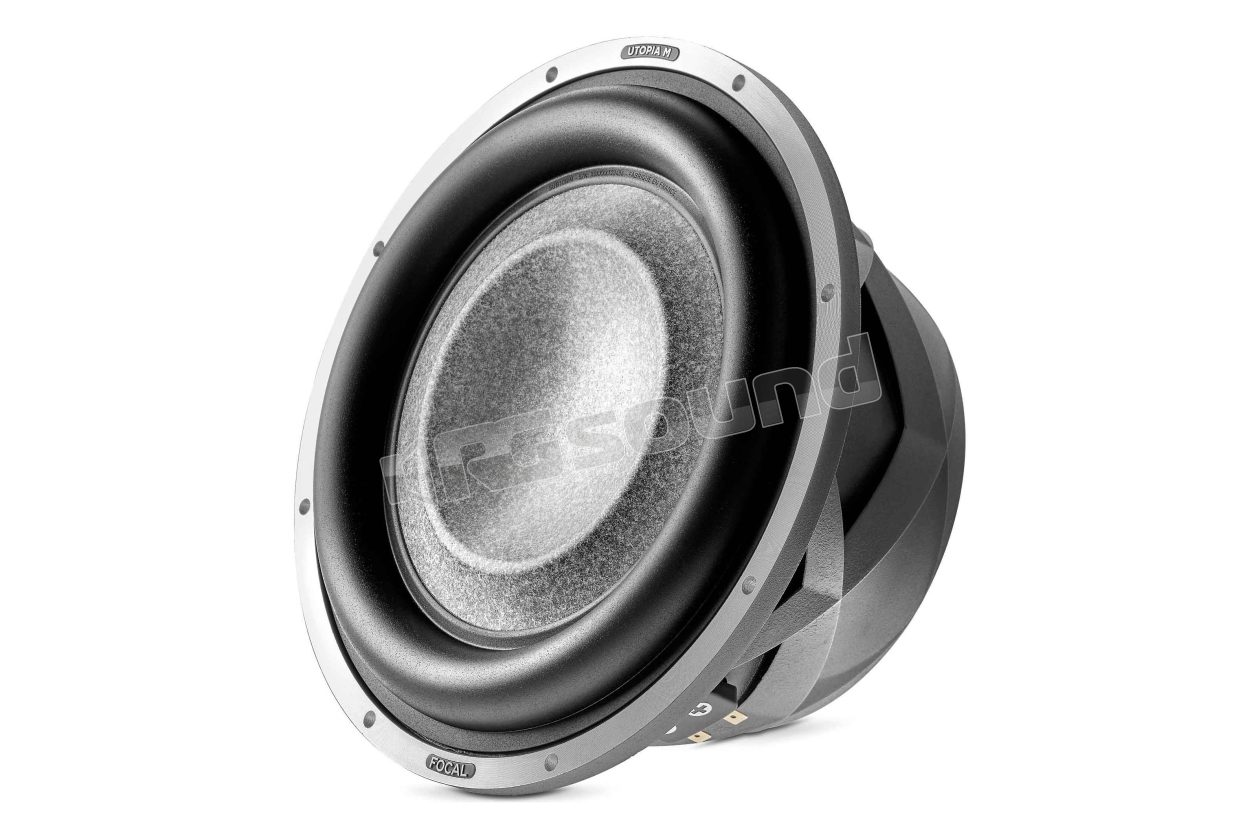

SUB 10 WM UTOPIA BE M 25cm subwoofer with dual 4 Ohm voice coil

Focal
Your price:
€ 999,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Subwoofer
Speaker Size
250 mm
MAX Power
800 Watt
RMS Power
400 Watt
Frequency Response
25 - 800 Hertz
Sensitivity
87.5 dB
Impedance
4 + 4 Ohm
Weight
8 Kg
Installation Depth
108 mm
Woofer Material
Profilo cono M

Focal SUB10WM SUB 10 UTOPIA BE M Subwoofer 10 inch with dual 4 Ohm voice coil

Compactness and dynamism

By introducing for the first time the "W" cone with "M" profile in a subwoofer, Focal engineers were able to develop an unparalleled product, integrating, among other things, a dual 4.7" (120 mm) diameter voice coil and a powerful neodymium motor. These innovations make it possible to integrate the SUB10WM into a small sealed enclosure (minimum 10 liters) while maintaining exceptional dynamics and an inimitable audiophile sound.

Sandwich cone with "M" profile

The new patented "M" profile cone is the result of many years of research and experience in materials and their geometry acquired at Focal. The innovative "M" profile, made in a single piece, makes the speaker incredibly rigid and perfectly combines the three essential criteria for creating an "ideal" speaker driver: rigidity, lightness and damping. The result is an extremely linear frequency response, a low distortion rate and improved sound dispersion. When listening, this cone offers surprising realism and a level of detail that transports you to the heart of the music.

Progressive spider

The progressive spider used on all Utopia drivers is built around a progressive section that reproduces all the impact of the bass while optimizing the linearity, precision and dynamics of the sound.

This subwoofer was designed to be part of a Focal Utopia M system, which includes other high-performance speakers:

  • Focal Utopia TBM tweeter 1"
  • Focal Utopia 3.5WM midrange driver 3-1/2"
  • Focal Utopia 6WM woofer 6"
  • Focal Utopia 8WM woofer 6"

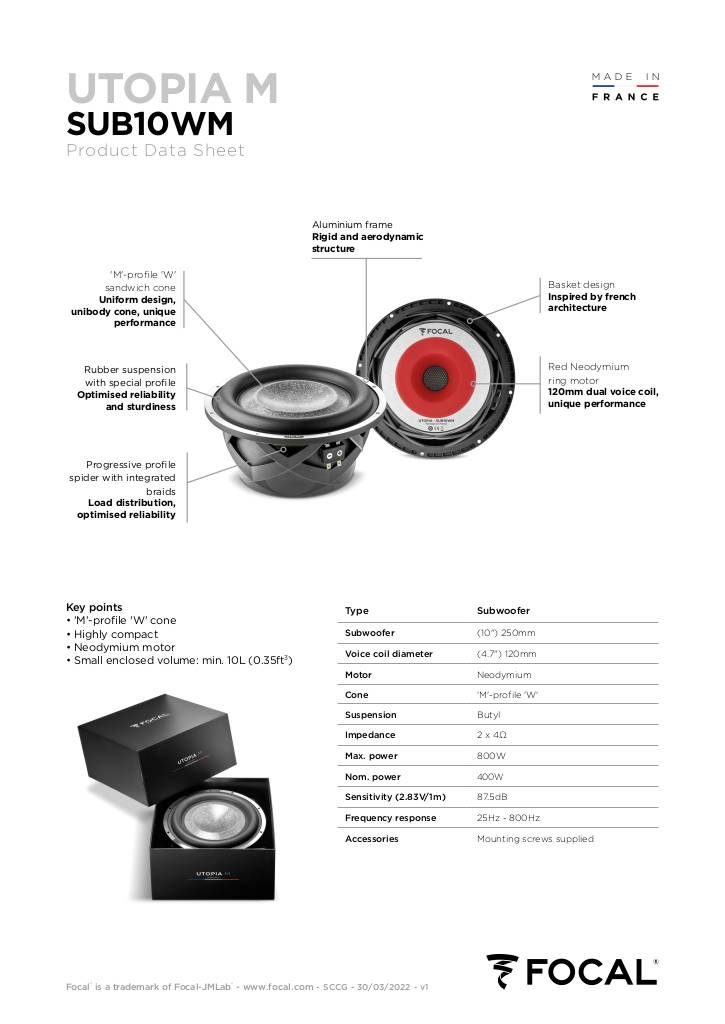

Scheda Tecnica

n-20240223151605-scheda-tecnica-1.pdf

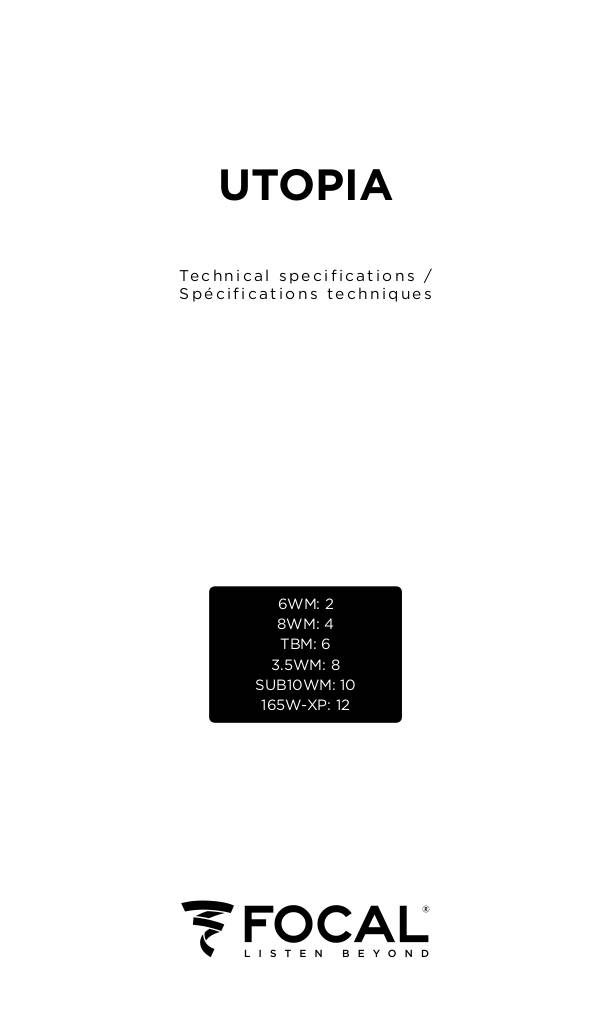

Specifiche

n-20240223151605-scheda-tecnica-2.pdf

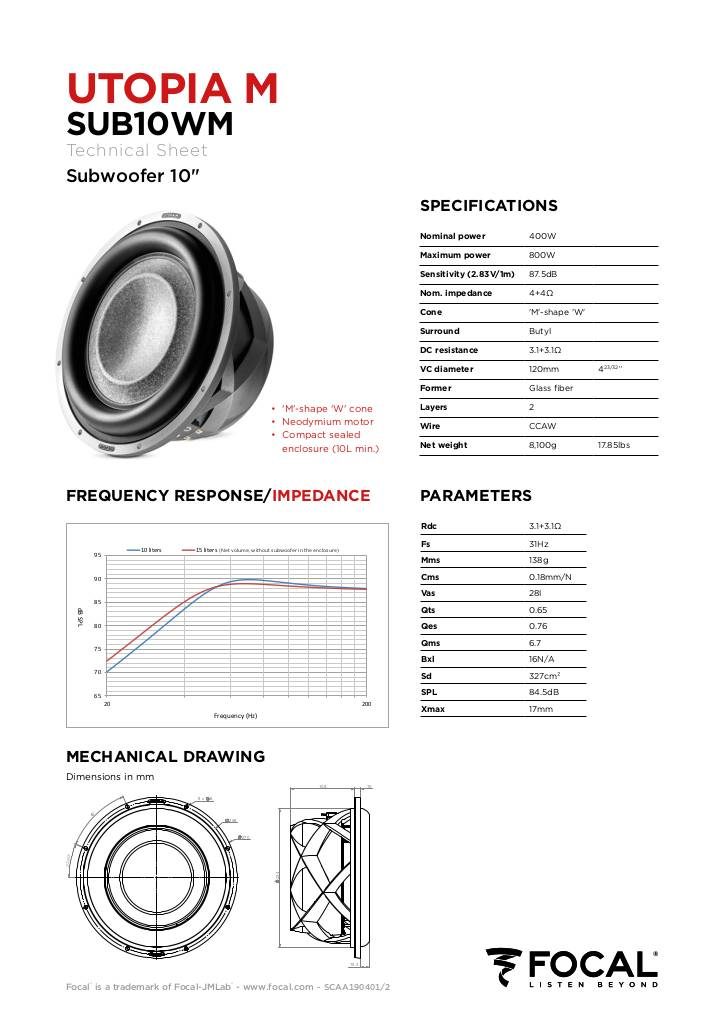

Scheda tecnica Subwoofer

n-20240223151605-scheda-tecnica-3.pdf

Focal SUB10WM Technical specifications

  • Rated power 400 W
  • Maximum power 800 W
  • Sensitivity (2.83 V / 1 m) 87.5 dB
  • Frequency response 25Hz - 800Hz
  • Nominal impedance 4 + 4Ω
  • Cone profile 'M'
  • DC resistance 3.1 + 3.1ΩVC
  • Voice coil diameter 120mm
  • Fiberglass former
  • Weight 8.100 g / 17.85 lbs
  • Recommended sealed enclosure: minimum volume 10 liters
€ 999,00 Price incl. VAT
