STP VBT

STP Standartplast

Discontinued

Your price:
€ 57,10
Price per single item (VAT included)

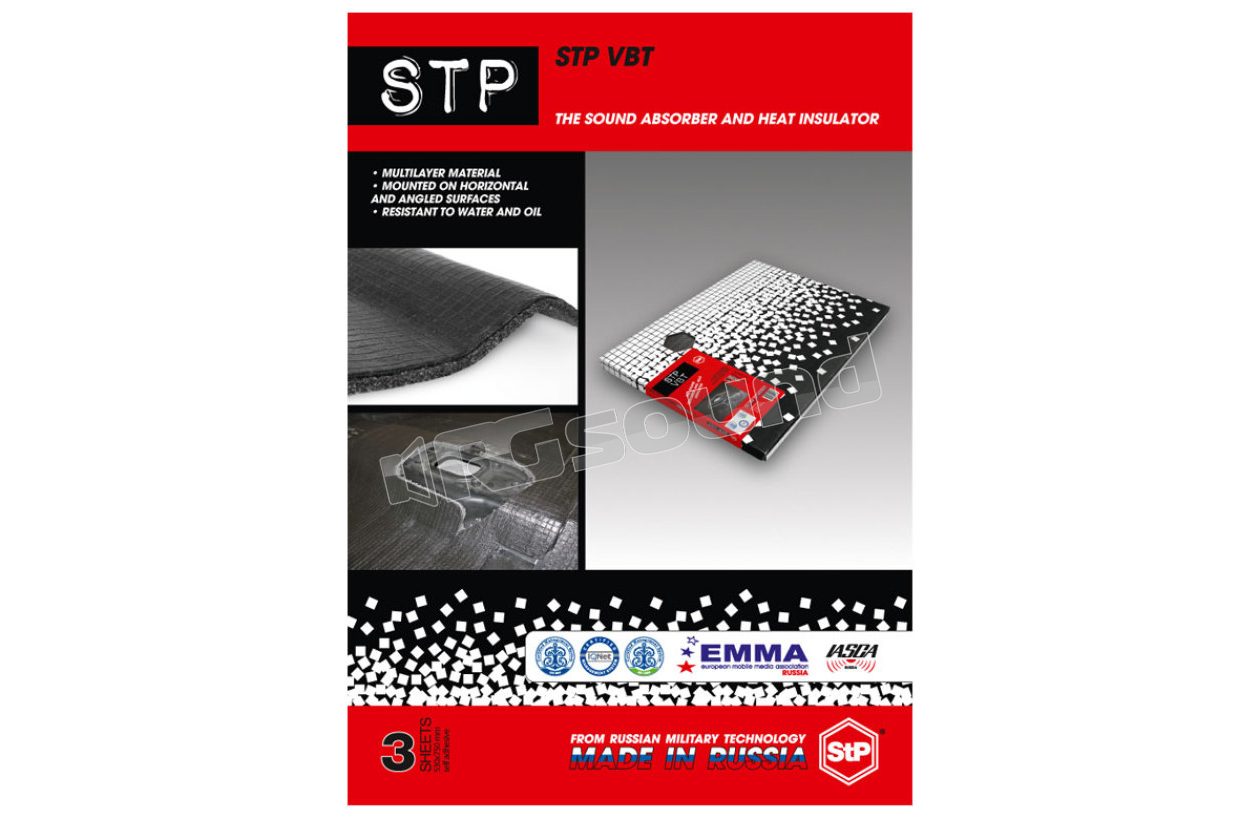

STP VBT multi-layer damping and thermal insulation material - Sheet 53x75cm, thickness 10 mm (pack of 3 sheets).

• multi-layer material
• Installation on horizontal and angled surfaces
• Resistant to water and oils

STP VBT is a multi-layer combination consisting of a 10 mm thick polyethylene foam and a double outer layer (composition of polymers and bitumen covered by a transparent film).
The back of this material is a uniform polyethylene foam with a rough or smooth surface.

Resistant to water and oils The material and components can be used in tropical and moderate climatic conditions with humidity up to 98%.
The operating temperature range is from 45 degrees below zero to 70 above zero C. The material can be installed on horizontal and angled surfaces.
It must be used in conditions that exclude prolonged contact with organic solvents.

STP VBT technical specifications

Thickness, mm 3.8-4.6
Weight Kg/m2 6
Bond strength between the polymer bitumen layer and polyethylene foam not less than Ncm2 2.5
Maximum water absorption 5
Sound absorption, dB, not less than
400 7
800 25
1000 26
1250 26
1600 26
2000 27
2500 30
3150 33
4000 35
5000 35
6300 35

Scheda tecnica inglese

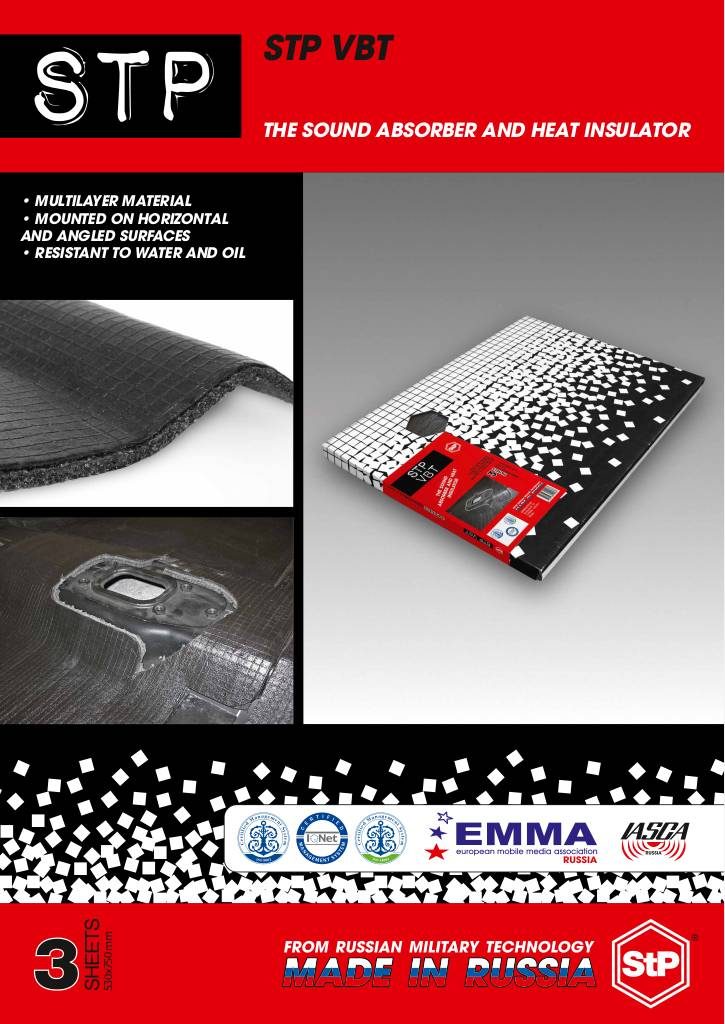

20120104105308-stp-vbt.pdf

Scheda tecnica

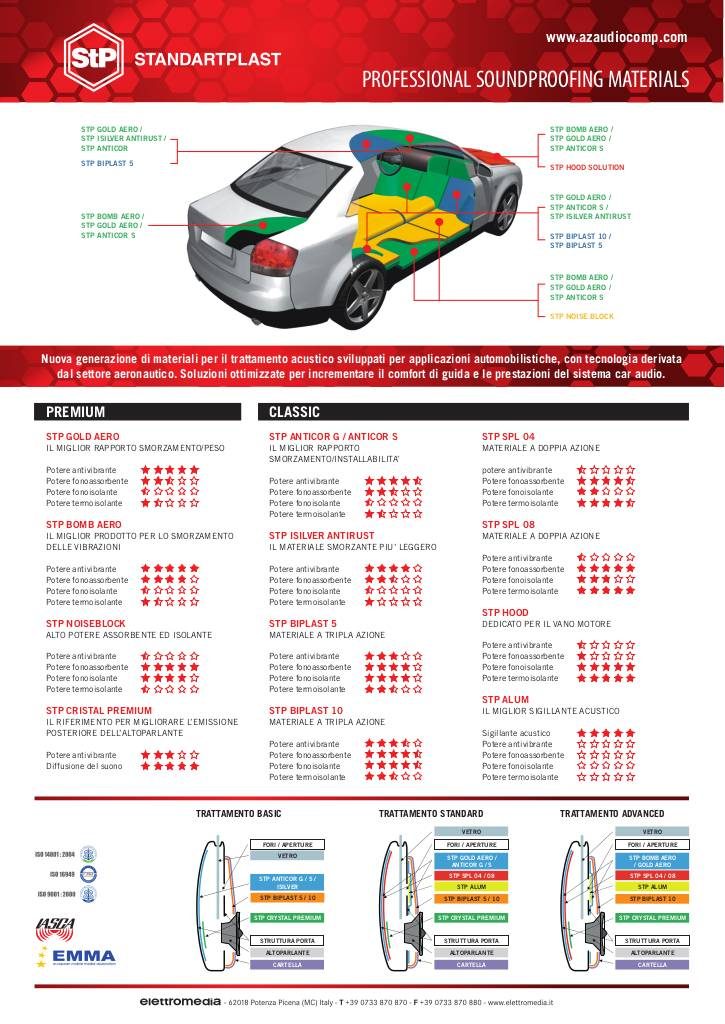

20140701125036-stp-flyer-a4-ita.pdf

3x STP VBT sheets
