STP GOLD DOOR SOLUTION - 4 sheets 53x73cm

STP Standartplast

Discontinued

Your price:
€ 72,20
Price per single item (VAT included)

STP GOLD DOOR SOLUTION

Sheet 53x73cm (pack of 4 sheets)

Avoids road noise and panel distortions

• isolate vibrations
• noise stop
• reduces heat
• Resistant to water and oils
• easy to apply (self-adhesive)

STP GOLD DOOR SOLUTION - is a self-adhesive flexible and elastic vibro-damping material. The material is a combination of multiple layers, which consists of an aluminum sheet and a polymer layer based on butyl rubber.
The material is water resistant and resistant to environmental influence; it has corrosion-prevention and sealing properties. Operability of moderate tropical climate in air quality conditions, at a temperature of 45 º C below zero to 100 º C above zero. Short-term exposure at a temperature of 190 º C is allowed.
The polymer layer based on butyl rubber allows easy mounting of the material to the vibrating surface and avoids the use of dangerous adhesives containing solvents.
The material is easily mounted on complex surfaces. It does not need to be heated during assembly, but can be assembled dry corrosion-prevention materials.


Technical Features

Thickness, mm 2.3 ± 0.2 I 4.3 TS 5.772
Weight 1 m2, kg mass, not less 3.6 GOST 17.317
Loss factor at frequency of 200 Hz, not less 0.33 I 4.6 TS 5.772
Durability of connection between material and metal surface during peeling-off, N / m, at least 5 I 4.7 TS 5.772
Durability of adhesive relative to connection with polymeric sticky level, N / cm 0.01-0.25 GOST 17.317
Durability of connection between material and metal surface after influence 4 I 4.12 TS 5.772
of cyclic temperature variation from 45 º C below zero to 70 º C above zero, N / cm, not less than
Flammability, combustion rate, mm / min, not more than Non-flammable, 100 GOST 25.076
Fungal resistance, point, not more than 2 GOST 12.4.152

Scheda tecnica inglese

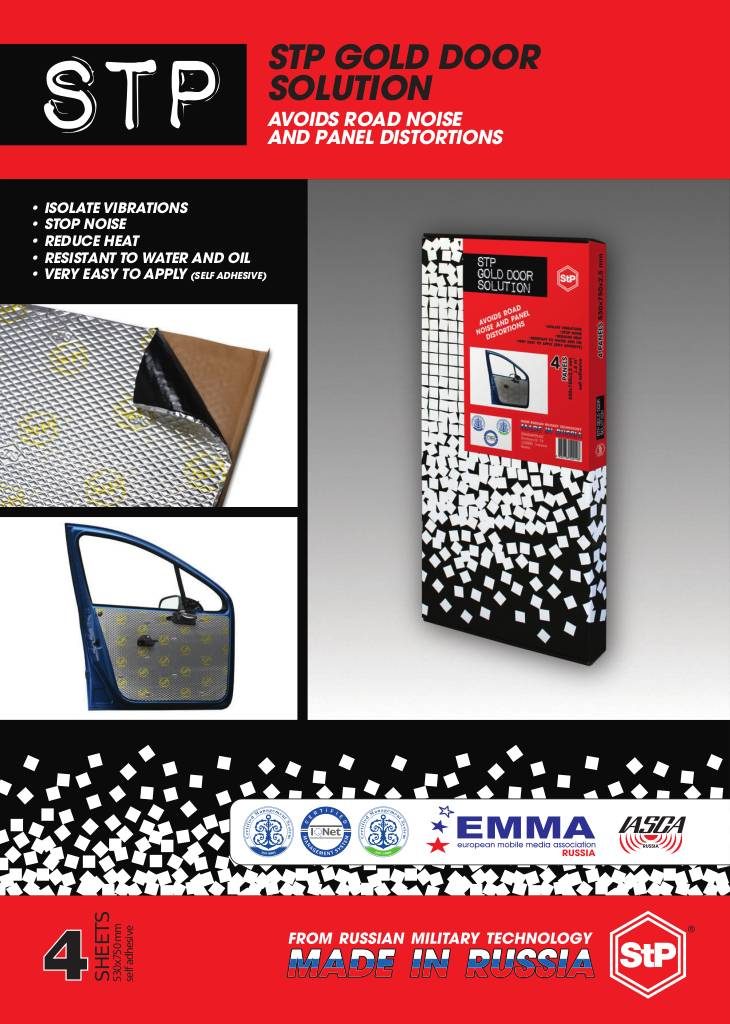

20120104095909-stp-gold-door-solution.pdf

Scheda tecnica

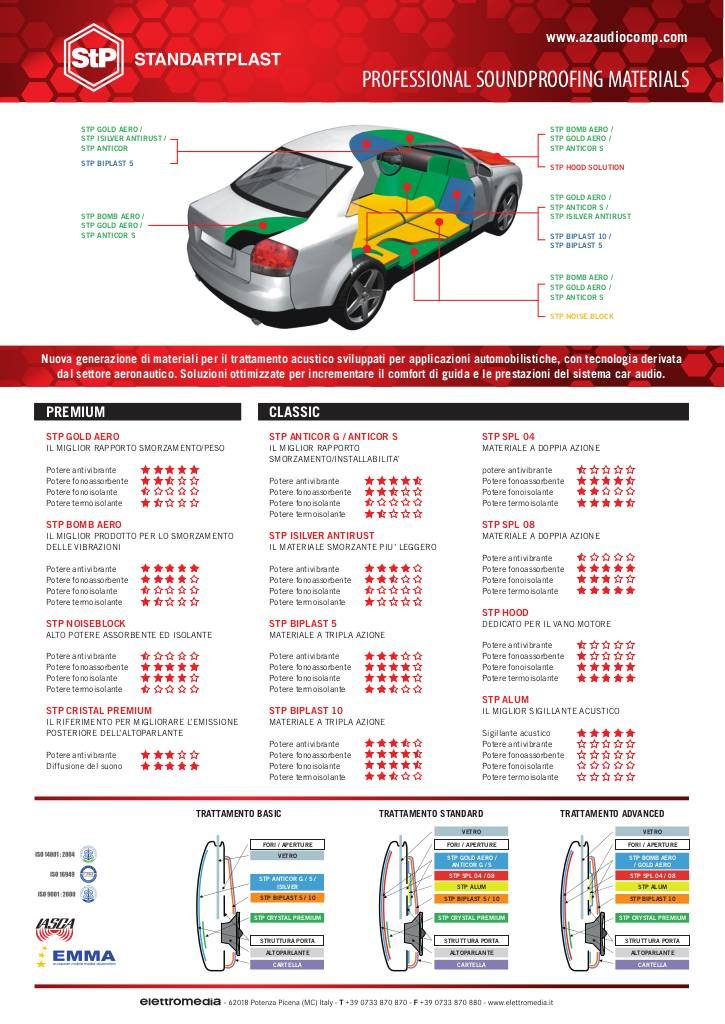

20140701105433-stp-flyer-a4-ita.pdf
Discontinued
