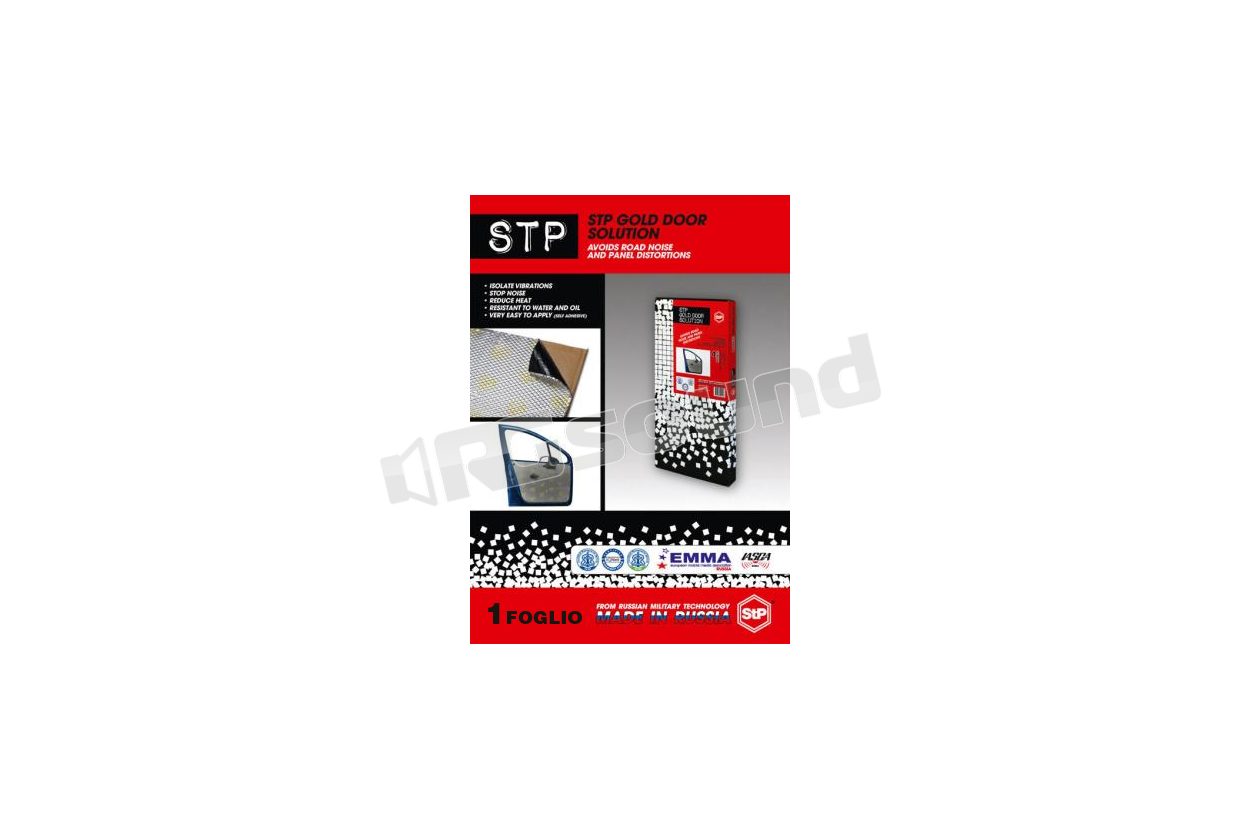

STP GOLD DOOR SOLUTION - 1 sheet 53x73cm

AZ Audiocomp

Discontinued

Your price:
€ 19,50
Price per single item (VAT included)

STP GOLD DOOR SOLUTION

Single sheet 53x73cm

Prevents road noise and panel distortion

• isolate vibrations
• stop noise
• reduces heat
• Water and oil resistant
• easy to apply (self-adhesive)

STP GOLD DOOR SOLUTION - is a self-adhesive flexible and elastic vibro-damping material. The material is a combination of several layers, consisting of an aluminum sheet and a polymeric layer based on butyl rubber.
The material is water resistant and resistant to environmental influence; it has corrosion-prevention and sealing properties. Operability under moderate tropical climate conditions in air quality, at temperature from 45°C below zero to 100°C above zero. Short-term exposure at temperature of 190°C is allowed.
The polymeric layer based on butyl rubber allows easy mounting of the material to the vibrating surface and avoids the use of dangerous adhesives containing solvents.
The material is easily mounted on complex surfaces. It does not need to be heated during mounting, but can be assembled dry with corrosion-prevention materials.


Technical specifications

Thickness, mm 2.3 ± 0.2 I 4.3 TS 5.772
Weight 1 m2, kg of mass, not less 3.6 GOST 17.317
Loss factor at frequency of 200 Hz, not less 0.33 I 4.6 TS 5.772
Durability of connection between material and metal surface during peeling-off, N/m, at least 5 I 4.7 TS 5.772
Durability of adhesive relative to connection with polymeric sticky level, N/cm 0.01-0.25 GOST 17.317
Durability of connection between material and metal surface after influence 4 I 4.12 TS 5.772
of cyclic temperature variation from 45°C below zero to 70°C above zero, N/cm, not less than
Flammability, combustion speed, mm/min, not more than Non-flammable, 100 GOST 25.076
Fungus resistance, point, not more than 2 GOST 12.4.152

Scheda tecnica inglese

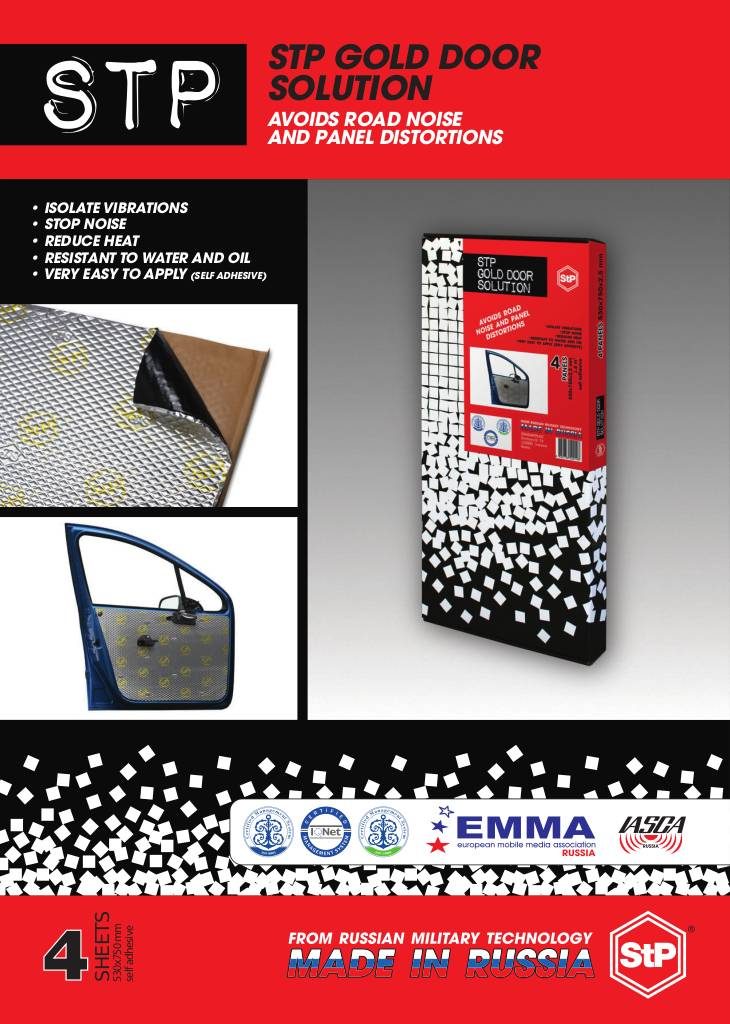

20120104095909-stp-gold-door-solution.pdf

Scheda tecnica

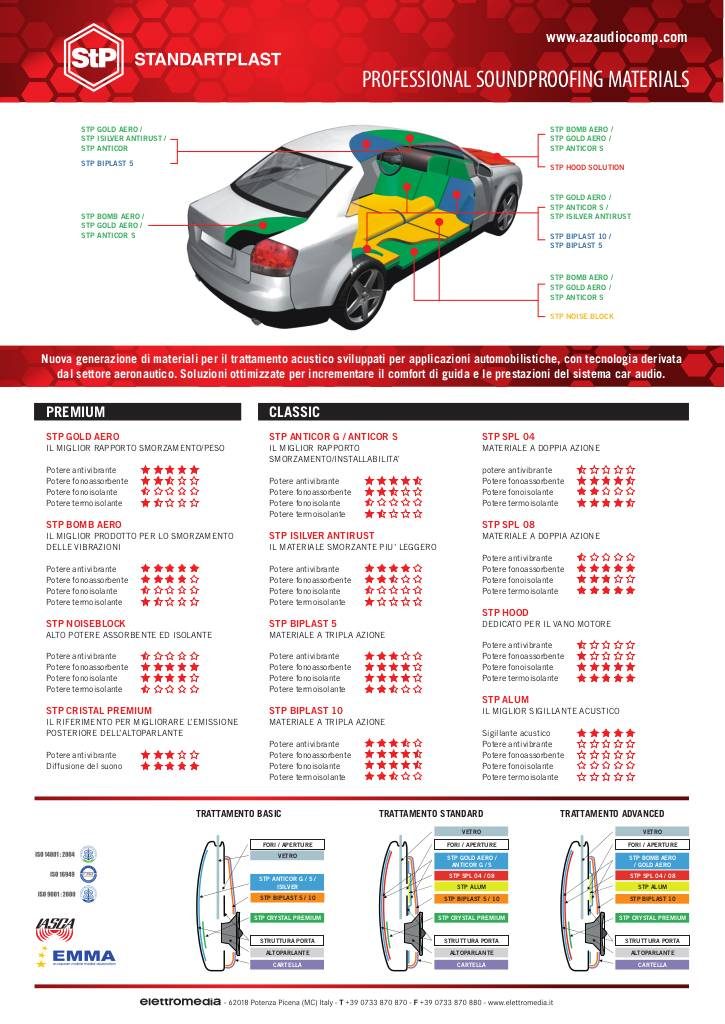

20140701105201-stp-flyer-a4-ita.pdf
