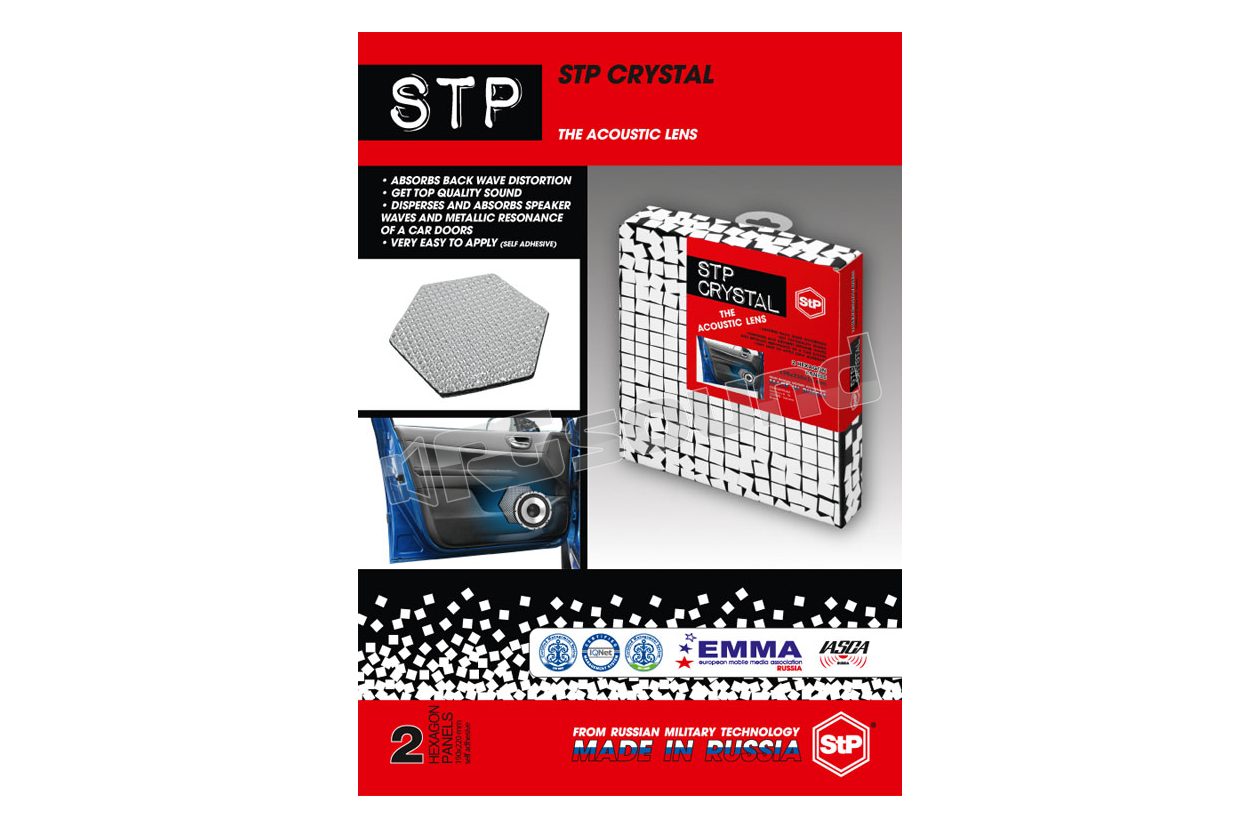

STP CRYSTAL

AZ Audiocomp

Discontinued

Your price:
€ 32,10
Price per single item (VAT included)

STP CRYSTAL two hexagonal acoustic panels for door, dimensions: 19cm x 22cm

Elastic hexagonal-shaped material with triple layer based on polyurethane foam saturated with bitumen with a pressed aluminum sheet. The CRYSTAL acoustic panel effectively disperses and absorbs the return wave produced by a speaker in the opposite direction as well as the metallic resonances of the car door.

STP CRYSTAL Features

• absorbs wave distortion
• guarantees high quality sound
• absorbs speaker waves and metallic resonances of car doors
• easy to apply (self-adhesive)

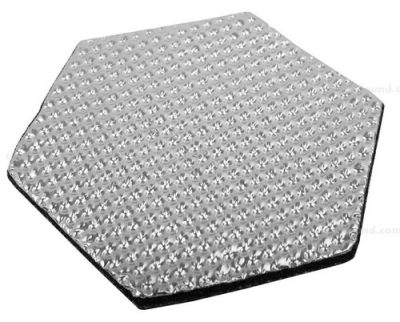

STP CRYSTAL - Elastic hexagonal-shaped material with triple layer based on polyurethane foam saturated with bitumen with a pressed aluminum sheet.
The CRYSTAL acoustic panel effectively disperses and absorbs the return wave produced by a speaker in the opposite direction as well as the metallic resonances of the car door.


The effectiveness of the CRYSTAL panel is defined by the following three acoustic effects:
1) Absorption of vibrations of the acoustic volume of a car door i.e. elimination of resonances.

2) The absorption of sound in the acoustic volume of a door provides a softening of the sound field in terms of frequency depending on the sound absorption index from the frequency.

3) The fact of finding an average of the sound pressure in the acoustic volume of the
door provides the elimination of acoustic resonances - interference of sound waves. The effect is achieved thanks to the special embossing of the material.

STP CRYSTAL Features

Bond strength between front cover and polyurethane part, N/cm, at least

 1.5
Bond strength between release film and adhesive layer, N/cm, at least 0.013 - 0.2
Bond strength between material and bearing surface, N/cm, at least 4
Material resistance at temperature of 80°C for 12 hours
Material resistance to water impact for 6 hours
Burn rate, mm/min, at least 100
Thickness, mm 15
Sound absorption factor, arbitrary unit, not less than
400 Hz 0.13
630 Hz 0.46
800 Hz 0.45
1000 Hz 0.32
1250 Hz 0.24
1600 Hz 0.29
2000 Hz 0.59
2500 Hz 0.83
4000 Hz 0.40
5000 Hz 0.31
6300 Hz 0.22
Mechanical loss indicator at 200 Hz frequency 0.20

Scheda tecnica inglese

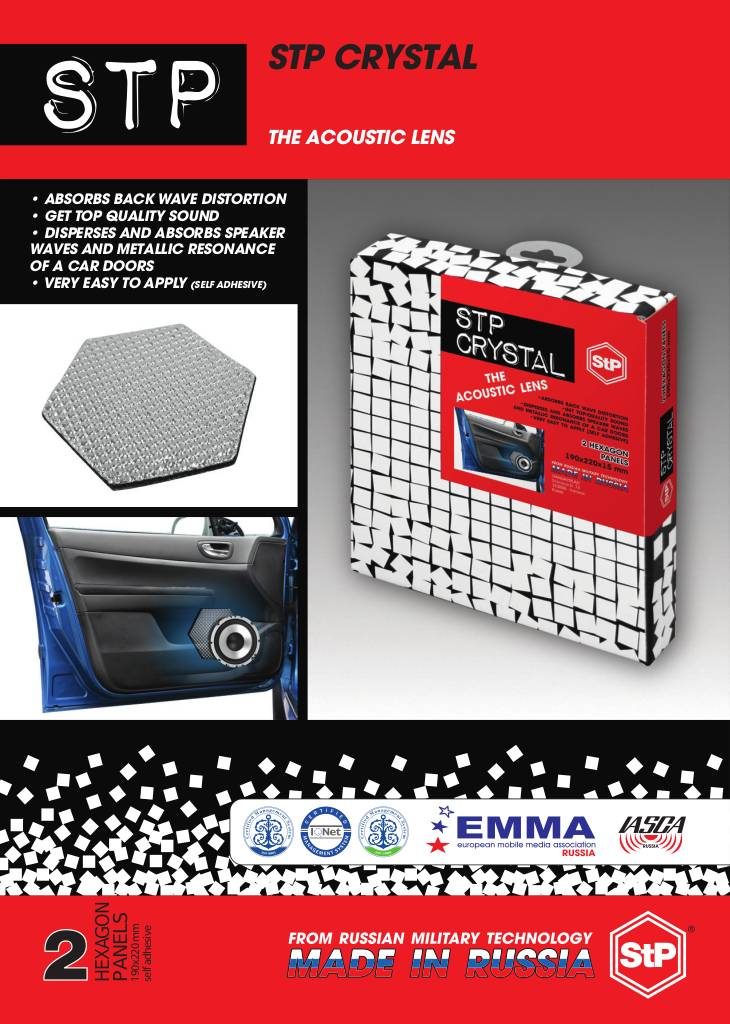

20120104101736-stp-crystal.pdf

Scheda tecnica

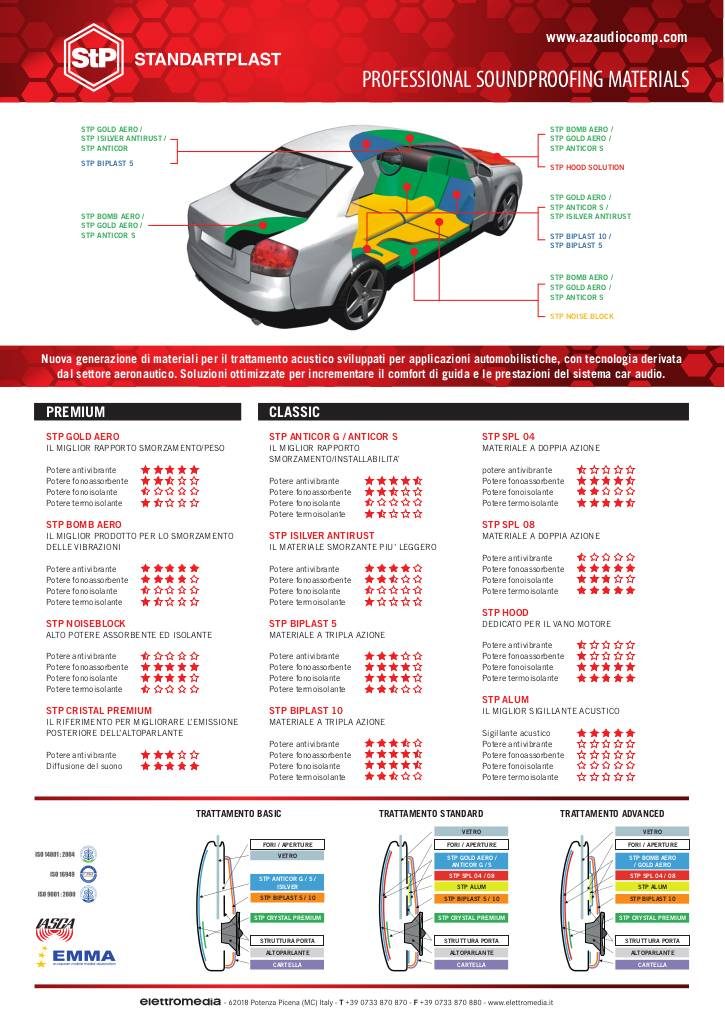

20140701105522-stp-flyer-a4-ita.pdf

2x hexagonal STP CRYSTAL panels
Discontinued
