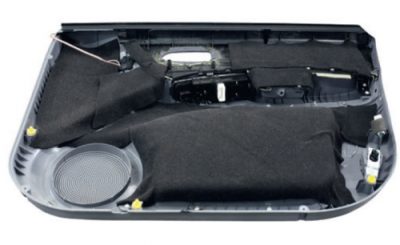

STP BTP 10 GOLD sound deadening for plastic surfaces and the back of door panels

AZ Audiocomp

Discontinued

Your price:
€ 65,60
Price per single item (VAT included)

THIS PRODUCT HAS BEEN REPLACED BY THE FOLLOWING CODE: BTP BIPLAST 10

STP BTP 10 GOLD package composed of 3 sheets 50x100cm thickness 10mm


• Sealant for plastic components
• Eliminate SQUEAK
• Resistant to water and oils
• Easy to apply (self-adhesive)

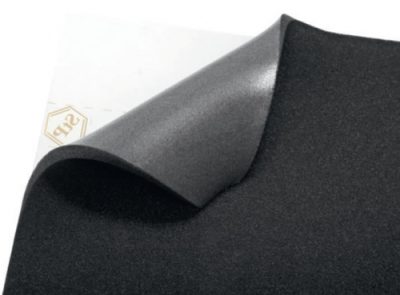

STP BTP 5 GOLD - self-adhesive material based on elastic polyurethane foam with thickness with an adhesive layer protected by 5 specific impregnated anti-adhesion film that makes the water and material wear resistant, improves its sound-absorbing property and significantly improves its resistance to ultraviolet radiation.
The material is produced in black color.
The anti-adhesion backing contains the STP logo in gold;
The temperature range is 45°C below zero to 80°C above zero.
If mounted on polysurfaces (triple angle or a circle), it is advisable to provide
notches on the components (no more than three).
It is recommended not to use the material with organic solvents.

Technical characteristics

Thickness, mm 10 I 4.3 TS 5.772
Weight 1 m2 per equivalent thickness of 1 mm, 4.4 g 50-120 I TS 2254
Durability of connection between material and metal surface, N/cm, not less than 3.0 I 4.7 TS 2254
Frequency, Hz / acoustic absorption factor,%, not less than
1000 10 GOST 16.297
2000 20 GOST 16.297
3.150 30 16.297 GOST
6.300 50 16.297 GOST
Tensile break stress after hot light aging, MPa (kgf/cm2) at least 50 (0.5) GOST 15.873
Flammability (combustion rate) mm/min, not more than 100 GOST 25.076

The product has been accompanied by a new product called BTP BIPLAST 10

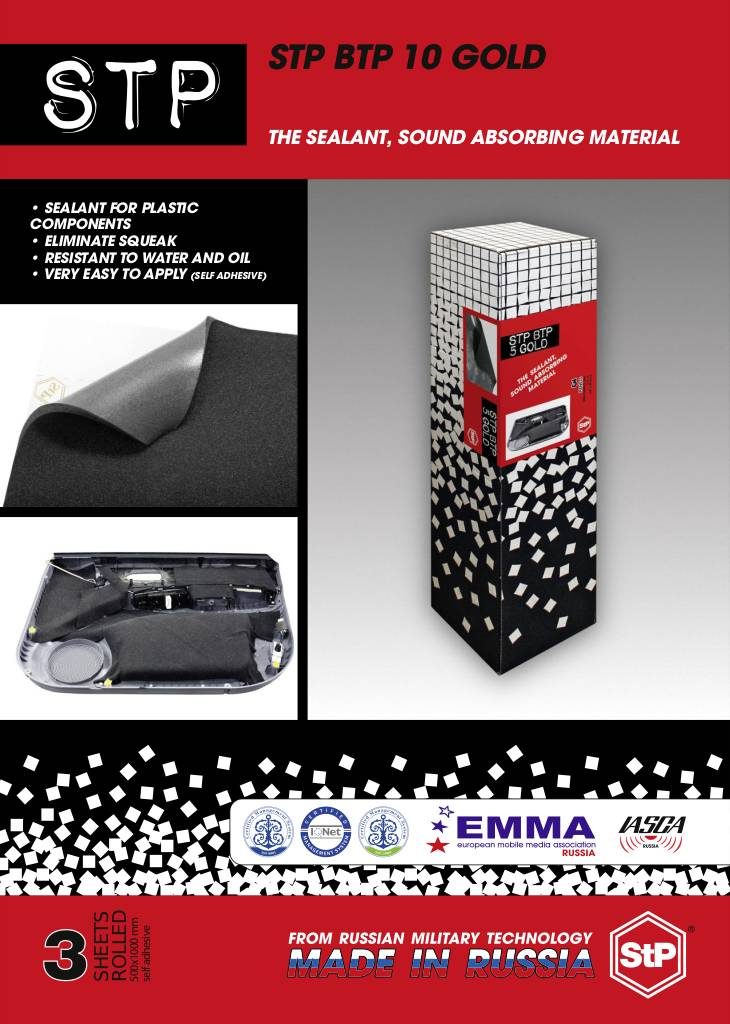

Scheda tecnica

20120104103522-stp-btp-10-gold.pdf
