STP ALUM 300B

AZ Audiocomp

Discontinued

Aluminum sheet 53x75cm (3 sheets per package)

STP ALUM 300B – is a group composed of laminated aluminum 0.3 mm thick and adhesive sheet bitumen layer with release film.
The material is intended to be used at temperatures from minus 45 º C and 70 º C.
Bond resistance of material with carrier not less than 5 N / cm.
The material does not absorb water and does not separate, under the influences of the environment, have anti-corrosion and hermetic properties. Can be easily attached on the surfaces composed and does not demand of heating during attached.

Technical characteristics

Thickness, mm 0.3 (test method I 4.3 TS 5.772)
Average weight of 1 m2, kg, not less 0.92 (test method GOST 17.073)
Lamina weight 1 m2, kg, not less 0.8 (test method GOST 17.073)
Durability of material connection with metal surface
in the process of peeling at an angle of 90 °, N / cm, at least
5.0 (test method I 4.8 TS 2254)
Durability of material connection with metal surface
in the process of peeling at an angle of 90 ° after the impact of the temperature
In cycling from -40 ° C to + 70 ° C, N / cm, at least
STORAGE 5.0 (test method I 4.8 TS 2254)

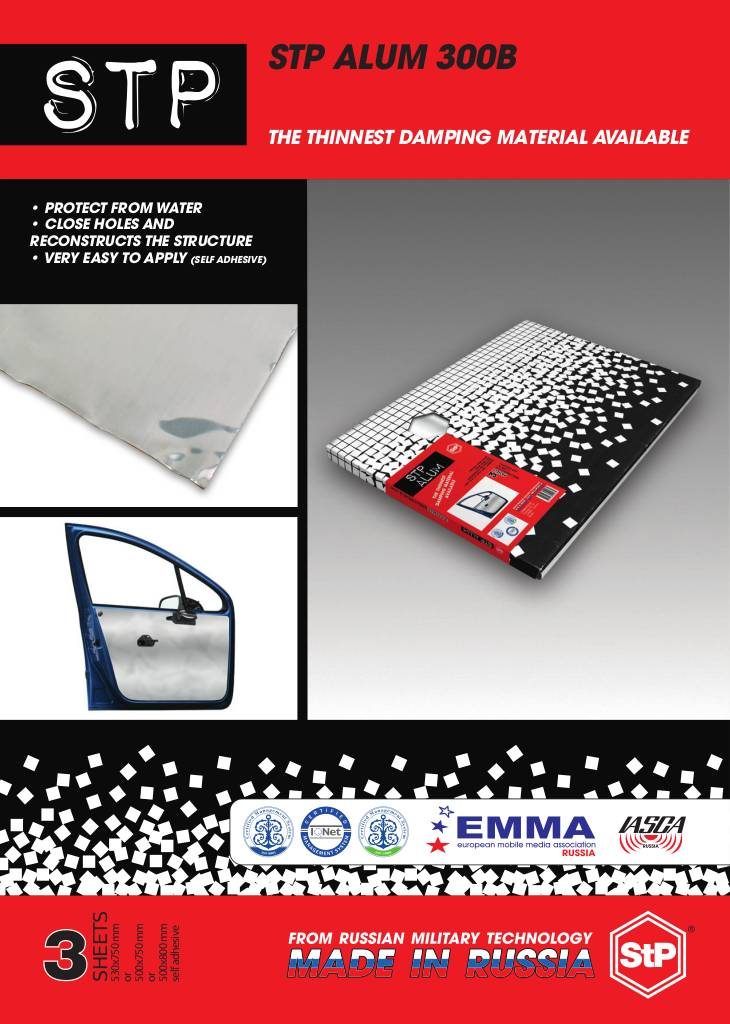

Scheda tecnica

20120104112813-stp-alum-300b.pdf
Discontinued
