STP AK10

AZ Audiocomp

Discontinued

Your price:
€ 48,50
Price per single item (VAT included)

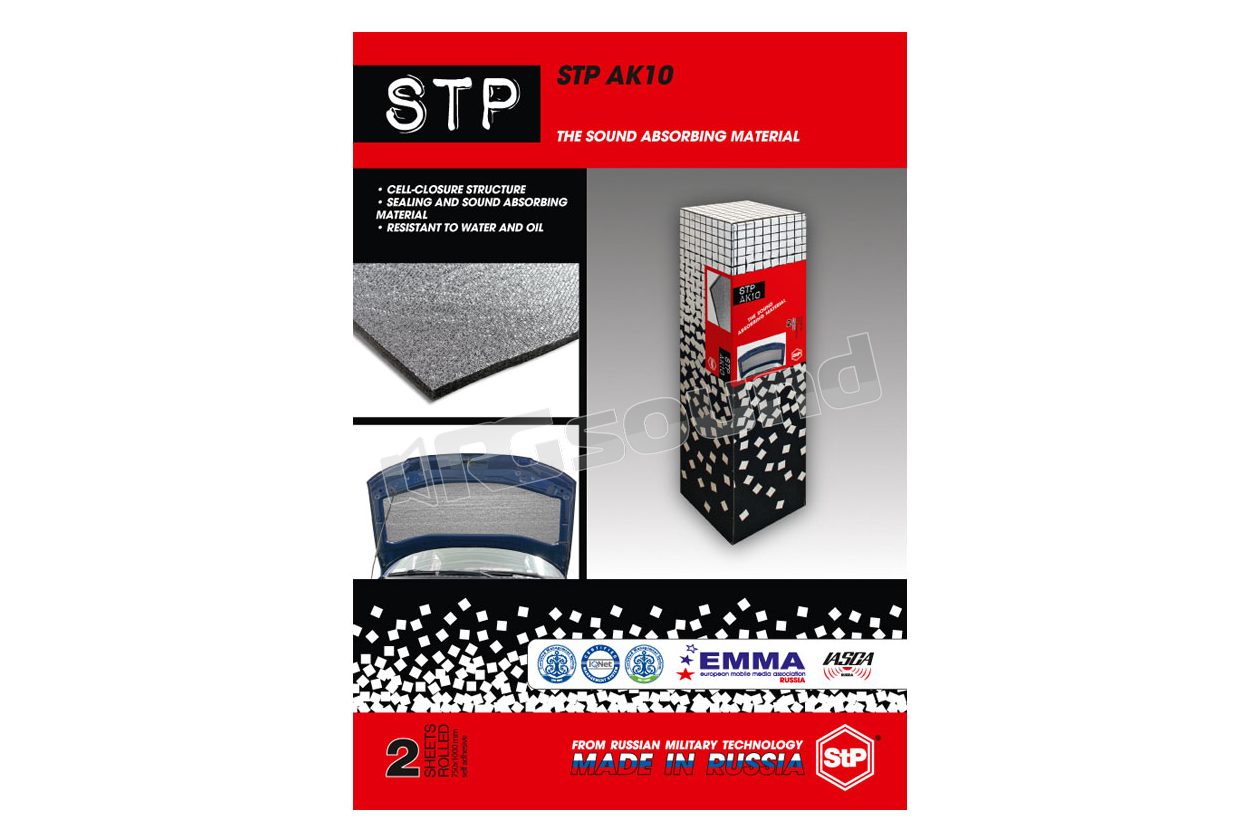

STP AK10 75x100cm Sheet self-adhesive (package of 2 sheets).

Sound-absorbing material: thermal and acoustic insulation for engine compartment, doors, roof and trunk.

Recommended in areas that maintain humidity, thanks to the structure with extra bitumen added it is very durable and resistant to wear.

STP AK10 Features

• Absorption: 70%
• Thickness: 10 millimeters
• Weight: 0.52 kg/m²
•
Closed-cell structure
• Sound-absorbing
• Resistant to water and oils

STP AK 10 - Polyethylene foam with closed-cell structure, gray color, elastic and with self-adhesive side for easy installation.

Installation must be performed in a warm and dry environment.

Before installation the material should be stored for no less than 24 hours at a temperature of (20+/-5) degrees C with humidity (45-65%) .


STP AK10 Technical Specifications

Thickness, mm 10
Bond strength between front cover and polyurethane part, N/cm, minimum 1.5
Bond strength between anti-adhesive film and adhesive layer, N/cm, minimum 2.5
Bond strength between material and bearing surface, N/cm, minimum 4
Resistance to temperature cycles from -30°C to + 80°C panel and adhesive support are not damaged
Material resistance at temperature of 80°C for 24 hours panel and adhesive support are not damaged
Combustion rate, mm/min, minimum 100
Mold resistance 1-2
Sound absorption factor, arbitrary unit, not less than
200 Hz 0.6
250 Hz 0.6
315 Hz 0.6
400 Hz 0.6
500 Hz 0.7
630 Hz 0.10
800 Hz 0.15
1000 Hz 0.20
1250 Hz 0.30
1600 Hz 0.35
2000 Hz 0.40
2500 Hz 0.50
3150 Hz 0.70
4000 Hz 0.65
5000 Hz 0.50
6300 Hz 0.50


Scheda tecnica inglese

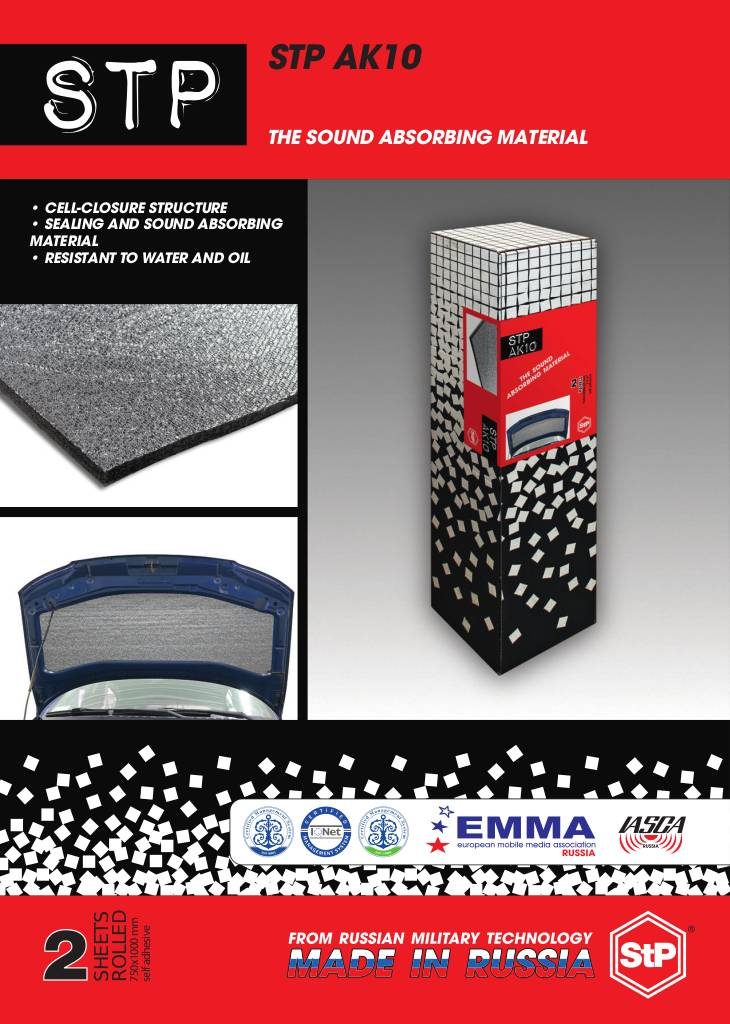

20120104105719-stp-ak10.pdf

Scheda tecnica

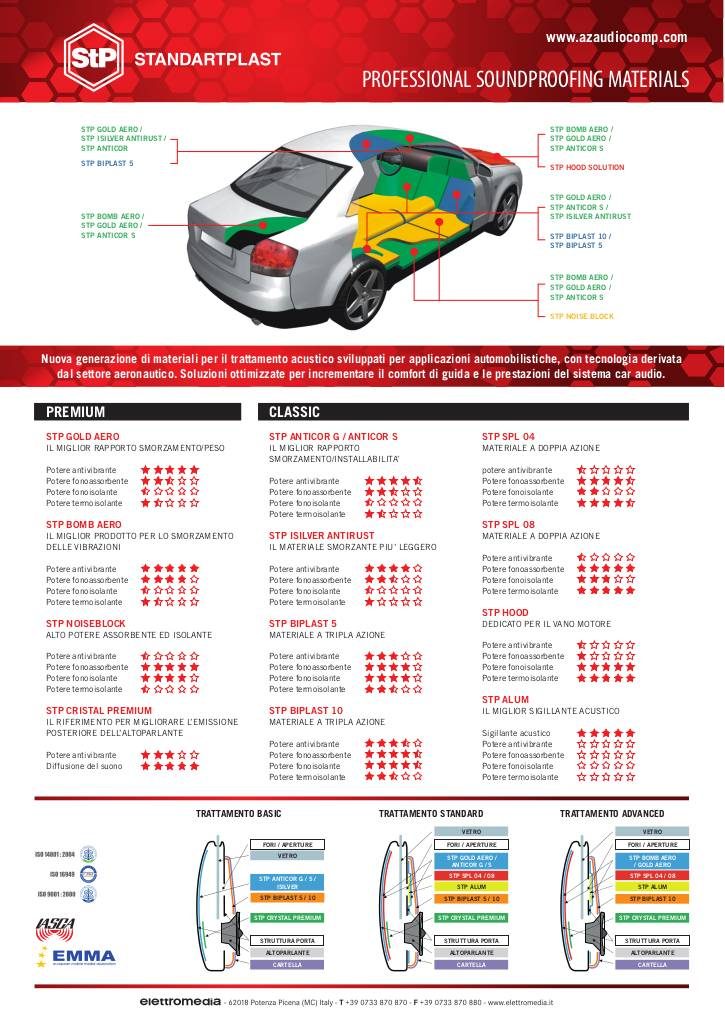

20140701112634-stp-flyer-a4-ita.pdf

2x STP AK10 sheets
Discontinued
