ST 44 SPL Show compression tweeter

Hertz

Discontinued

Your price:
€ 159,00
Price per pair (VAT included)
Type
Super Tweeter
Dome Size
44 mm
MAX Power
100 Watt
Frequency Response
2500-20000 Hertz
Sensitivity
109 dB
Impedance
4 Ohm
Outer Diameter
115 mm
Installation Depth
64,5 mm
Tweeter Material
Alluminio

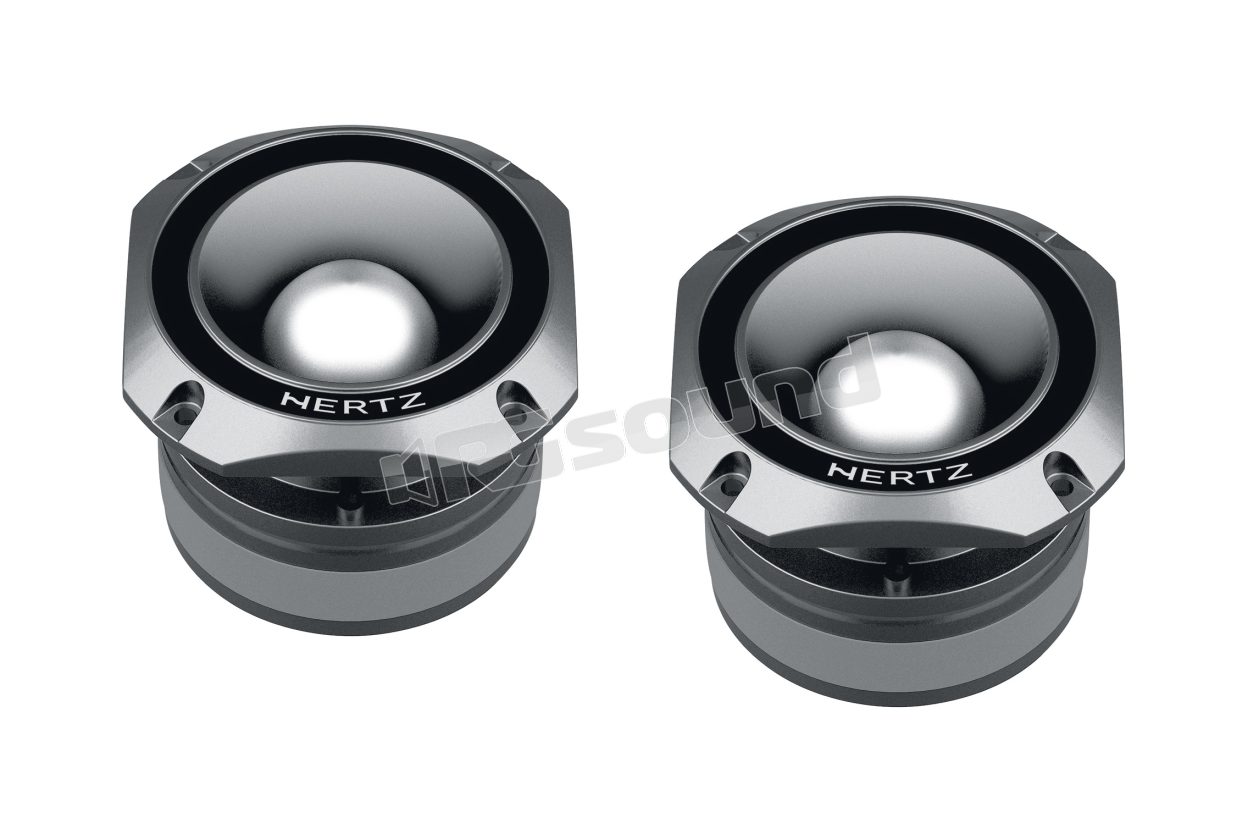

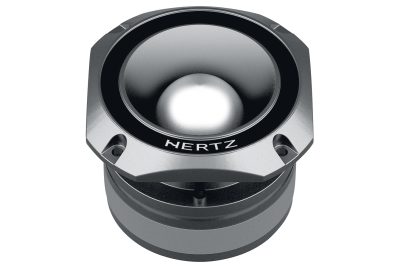

Hertz ST 44 pair of 44 mm compression tweeters suitable for SPL competitions

This tweeter is recommended for those who want competition acoustic performance and have no space limitations. The materials with which the ST 44 tweeters are made guarantee maximum SPL in extreme installations.
ST 44 - Strengths
  • Polar plates with high magnetic permeability provide continuous and constant flux.
  • Neodymium magnet, for high SPL performance.
  • CCAR coil (Copper Clad Aluminium Ribbon); for exceptional thermal and mechanical capacity.
  • Extra-light aluminum diaphragm.
  • Anodized aluminum body; for maximum damping and reduction of internal resonances.
  • High current screw terminals, for maximum conductivity.
  • Acoustic compression horn of high efficiency.

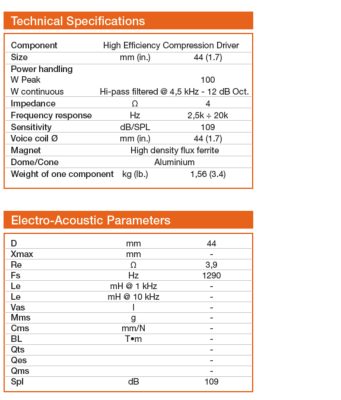

ST 44 - Features
  • Size 44 mm (1.7")
  • Maximum power 100 W
  • Impedance 4 Ω
  • Frequency response 2.5k ÷ 20k Hz
  • Sensitivity 109 dB SPL
  • Coil Ø 44 mm (1.7")
  • Installation depth 64.5 mm

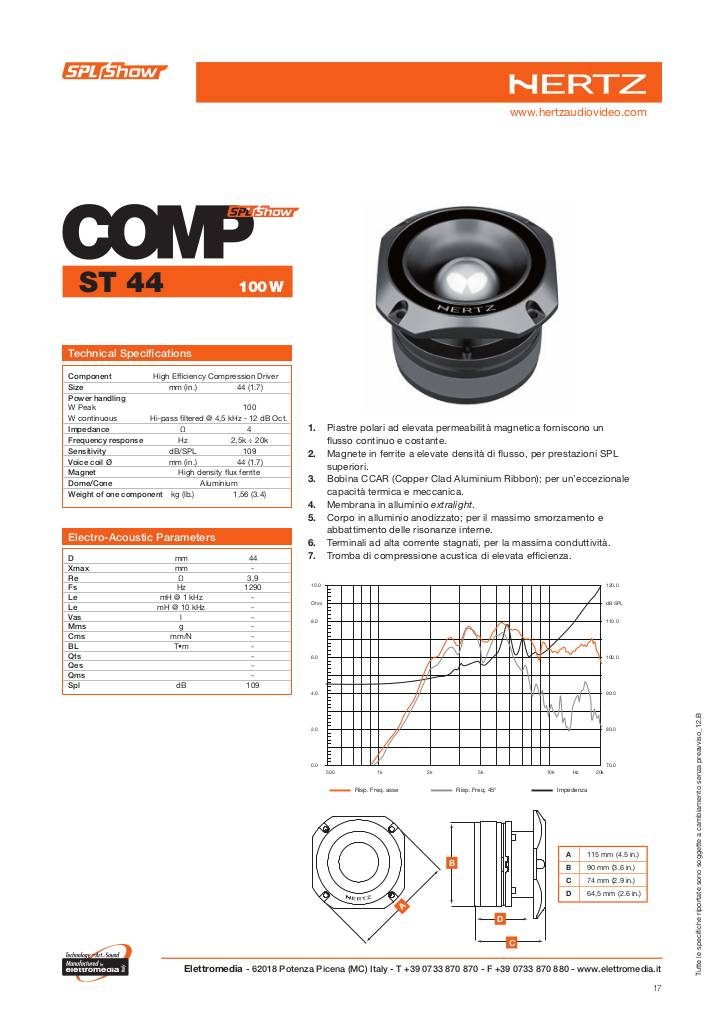

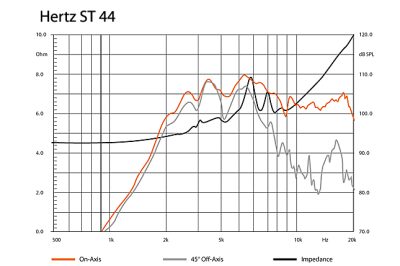

Specifiche - grafico

20160217110556-st44.pdf
