ST 35A NEO 35mm SPL Show compression tweeter

Hertz
Your price:
€ 259,00
Price per pair (VAT included)
In stock, ready to ship
Calculating shipping costs to

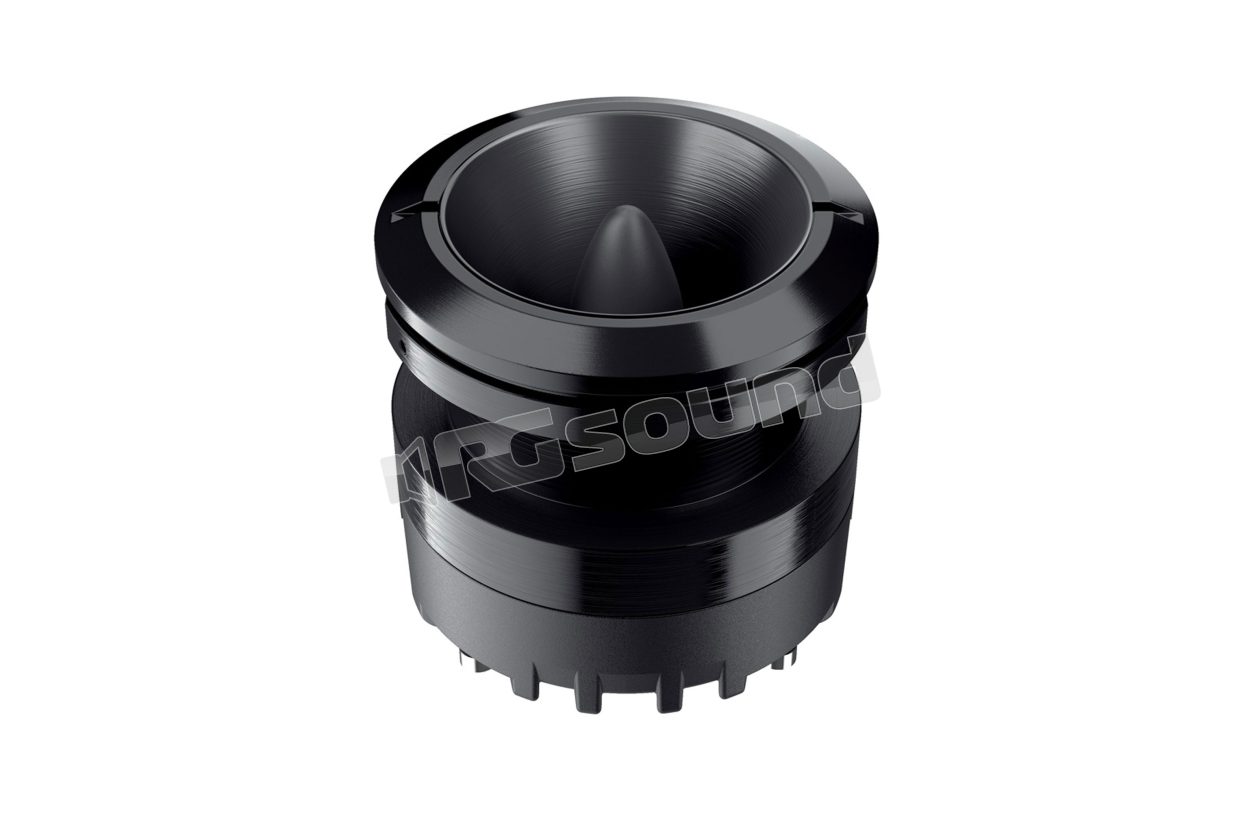

Hertz ST 35A NEO Pair of 35mm compression tweeters with high efficiency

The tweeter driver units of the NEO line are a completely new design, lighter and more compact than the previous ST 35 and with superior performance thanks to the use of Neodymium N38 H for the motor units and an optimized FEM (Finite Element Method) driver / horn design.

ST 35A NEO Features

  • Powerful neodymium magnet that delivers high performance with compact dimensions.
  • FEM optimized phase-plug (Finite Element Method) and loading horn.
  • CCAR voice coil (Copper Clad Aluminium Ribbon) for unprecedented thermal and mechanical capabilities, ready for easy replacement with the spare body kit.
  • Ultra-lightweight aluminum diaphragm to maximize SPL with high current screw terminals.
  • Body waterproofing and UV-resistant treatment to allow safe outdoor use without discoloration over time.
  • Aluminum rear cover for better heat dissipation.
  • Impressive extension and efficiency at low frequency.

Scheda tecnica

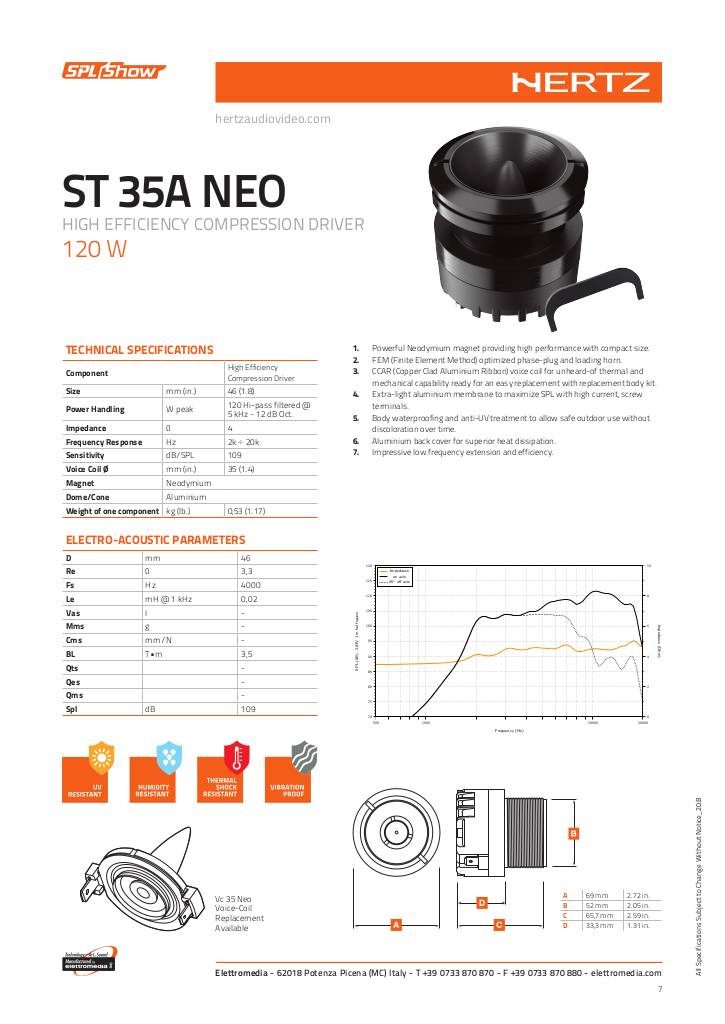

n-20201105124112-hertz-spl-neo-st35a-tech-sheet.pdf

Hertz ST 35A NEO Technical Specifications

  • Dimensions mm (inches) 46 (1.8)
  • Power handling - Peak W 120 high-pass filtered at 4 kHz - 12 dB oct.
  • Impedance Ω 4
  • Frequency response Hz 2k ÷ 20k
  • Sensitivity dB SPL 109
  • Voice coil Ø mm (inches) 35 (1.4)
  • Neodymium magnet
  • Cone / Dome in aluminum
  • Re 3.3 Ohm
  • FsHz 4000 LemH @ 1 kHz 0.02
€ 259,00 Price incl. VAT
