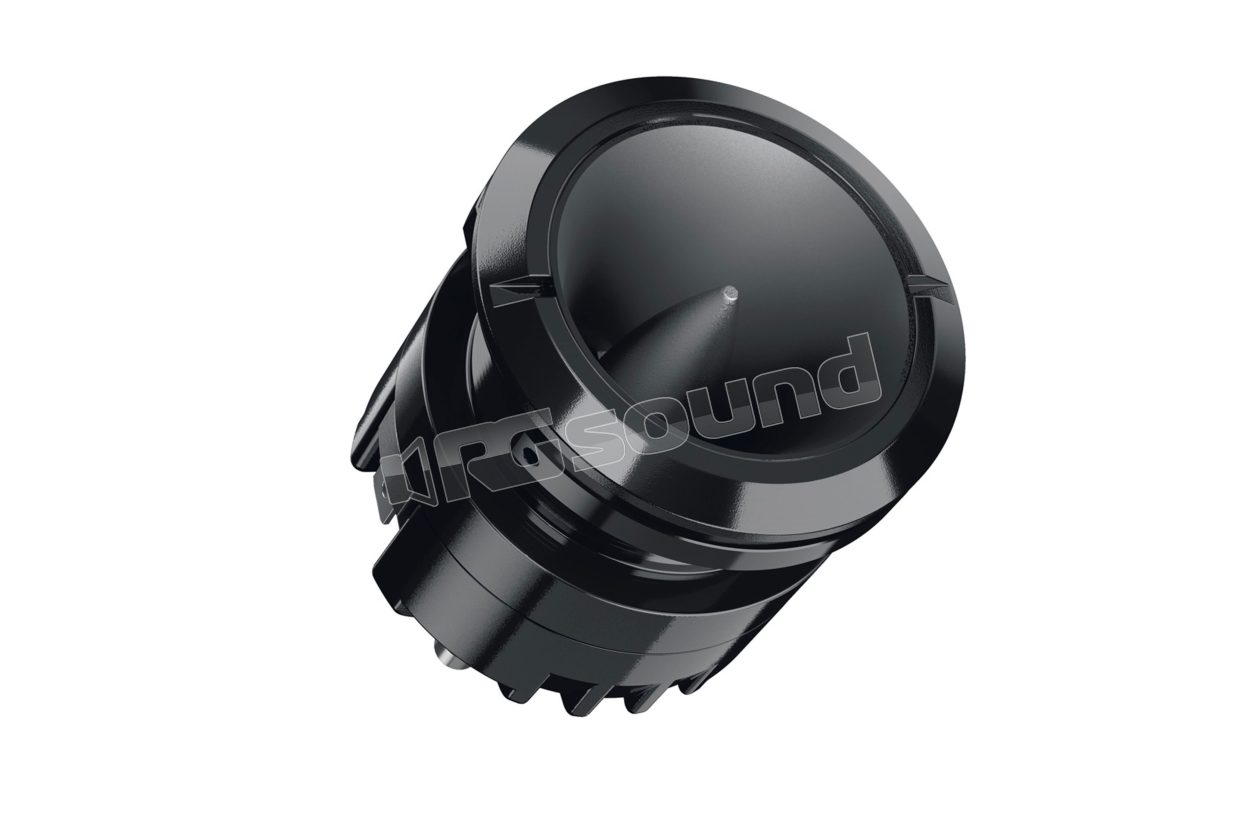

ST 25A Neo.2 25mm Neodymium Compression Tweeter

Hertz
Your price:
€ 169,00
Price per single item (VAT included)
In stock, ready to ship
Calculating shipping costs to
Type
Super Tweeter
Dome Size
25 mm
Frequency Response
3K - 20K Hertz
Sensitivity
107 dB
Impedance
4 Ohm
Outer Diameter
44 mm

Hertz ST 25A Neo.2 25mm Neodymium Compression Tweeter

Hertz's new horn tweeter, the ST 25A Neo.2 combines high performance with a light and compact structure. It stands out for the use of advanced technologies and high-quality materials, making it ideal for those seeking powerful and defined sound. The tweeter structure is based on a powerful N38 H neodymium magnet, designed to ensure high performance in a reduced format. The driver and horn geometry has been optimized through the FEM (Finite Element Method), ensuring superior acoustic performance.

The ultralight aluminum diaphragm helps maximize sound pressure level (SPL), offering fast and precise response even at the highest frequencies. The Hertz ST 25A Neo.2 uses a CCAR (Copper Clad Aluminium Ribbon) voice coil, which guarantees reliability and lasting performance, as well as making replacement simple and quick thanks to the replacement body kit.

The external structure of the tweeter is designed to withstand difficult environmental conditions: UV-resistant treatment and waterproofing of the body protect the device from atmospheric agents, preserving its integrity even in outdoor environments. Its compact dimensions (44 mm diameter) make it easy to install in a wide range of configurations, offering maximum flexibility without compromising performance.

ST 25A Neo.2 Features

  • Powerful neodymium magnet with high performance and compact dimensions.
  • Phase connector and charging horn optimized with the FEM method (finite element method).
  • CCAR voice coil (Copper Clad Aluminium Ribbon) for unprecedented thermal and mechanical capabilities, ready to be easily replaced with a replacement kit.
  • Ultralight aluminum diaphragm to maximize sound pressure level with high-current screw terminals.
  • UV-resistant treatment for safe outdoor use without discoloration.

Hertz ST 25A Neo.2 Technical Specifications

  • Size mm 44
  • Load capacity - Peak W 100
  • Power handling - Peak Note High-pass filtering @ 5 kHz - 12 dB Oct.
  • Impedance Ohm 4
  • Voice coil Ø 25
  • Frequency response Hz 3k - 20k
  • Sensitivity dB SPL 107
  • Weight kg 0.39
  • Neodymium magnet
  • Aluminum dome
€ 169,00 Price incl. VAT
