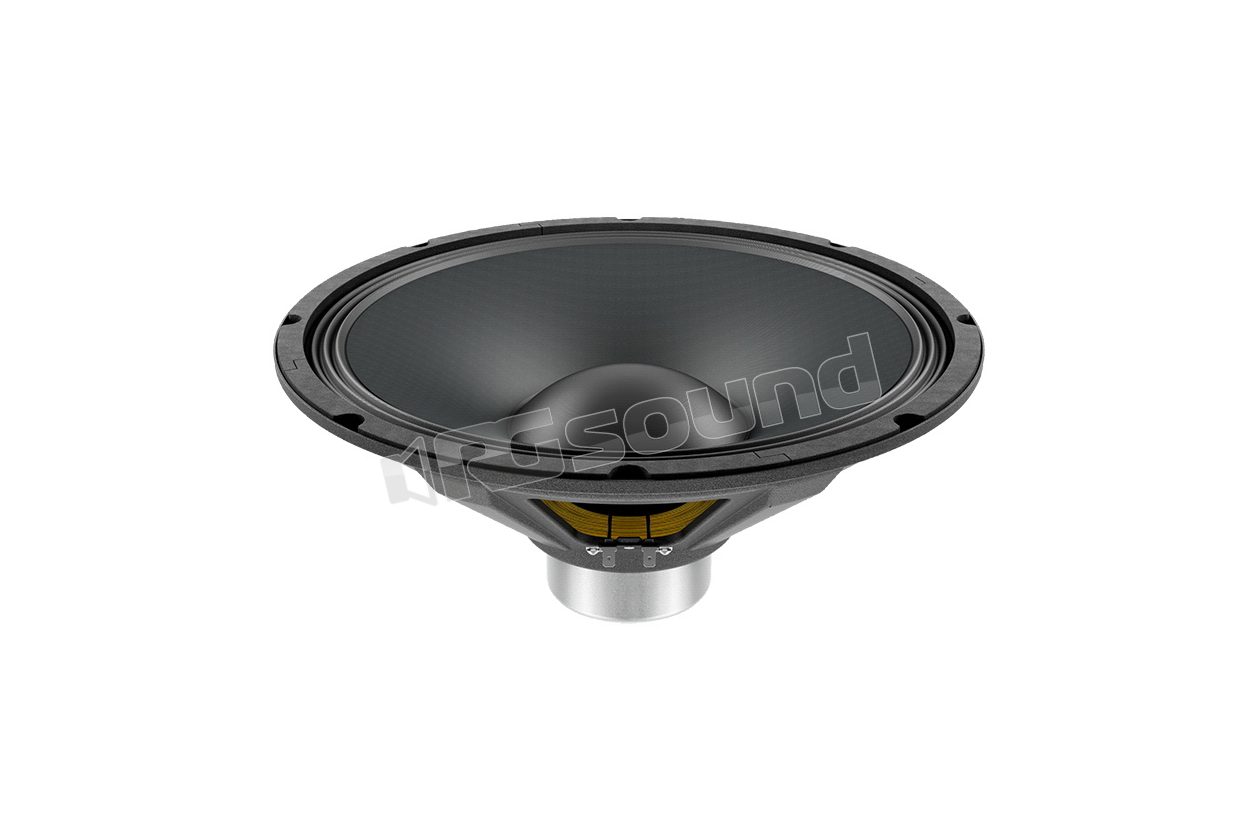

SSN153.00 15"/380mm Subwoofer

LaVoce
Your price:
€ 159,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Subwoofer
Speaker Size
380 mm
MAX Power
800 Watt
RMS Power
400 Watt
Frequency Response
50 - 2000 Hertz
Sensitivity
98 dB
Impedance
8 Ohm
Weight
3,5 Kg
Voice Coil Diameter
75 mm

LaVoce SSN153.00 15"/380mm Subwoofer

LaVoce code 70R01151

SSN153.00 Features

  • 3 inch copper voice coil
  • Sensitivity 98 db/spl
  • Program power handling 800 watts
  • Motor and suspensions optimized for Fem
  • Triple roll surround
  • Basket design resonance-free and resistant

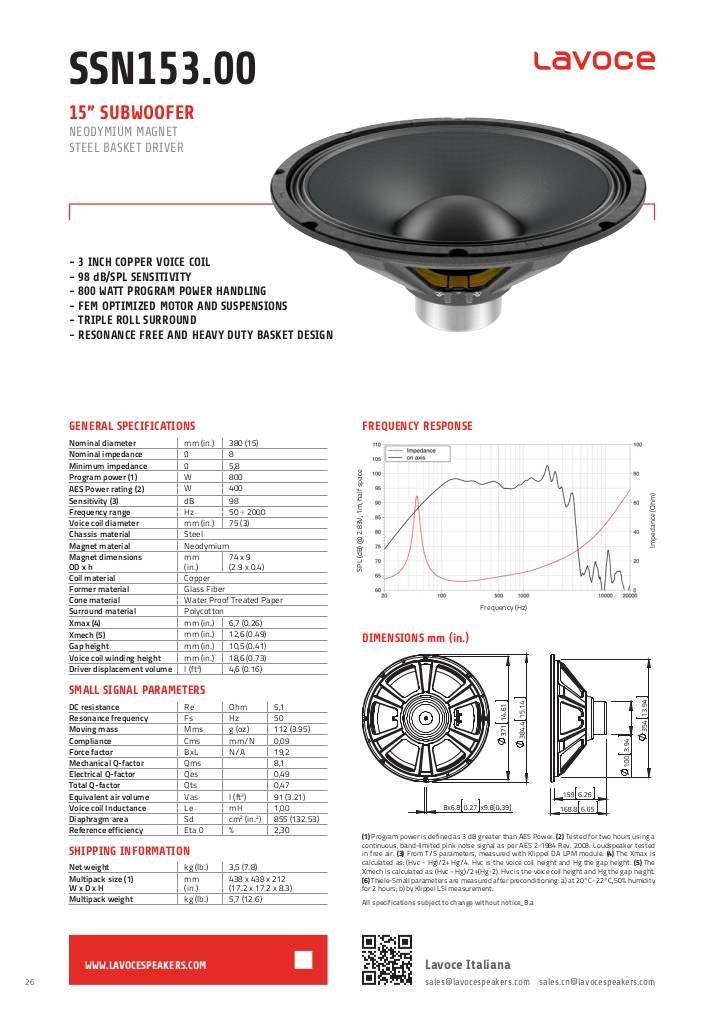

scheda tecnica

1549117423-ssn15300-1.pdf

LaVoce SSN153.00 Technical Specifications

  • Nominal diameter mm (in) 380 (15)
  • Nominal impedance Ohm 8
  • Minimum impedance Ohm 5.8
  • Program power W 800
  • AES power W 400
  • Sensitivity dB 98
  • Frequency range Hz 50 ÷ 2000
  • Voice coil diameter mm (in) 75 (3)
  • Basket material Steel
  • Magnet material Neodymium
  • Magnet dimensions OD x ID x h mm (in) 74 x 9 (2.9 x 0.4)
  • Coil material Copper
  • Structure material Fiberglass
  • Cone material Waterproof coated paper
  • Surround material Polycotton
  • Xmax mm (in) 6.7 (0.26)
  • Xmech mm (in) 12.6 (0.49)
  • Gap height mm (in) 10.5 (0.41)
  • Voice coil winding height mm (in) 18.6 (0.73)
  • Driver displacement volume l (ft³) 4.6 (0.16)
  • DC resistance Ohm 5.1
  • Resonance frequency Hz 50
  • Moving mass g (oz) 112 (3.95)
  • Compliance mm/N 0.09
  • Force factor N/A 19.2
  • Mechanical Q factor 8.1
  • Electrical Q factor 0.49
  • Total Q factor 0.47
  • Equivalent air volume l (ft3) 91 (3.21)
  • Voice coil inductance mH 1.00
  • Diaphragm area cm2 (in.2) 855 (132.53)
  • Reference efficiency 2.3%
  • Net weight kg (lb) 3.5 (7.8)
  • Multipack dimensions L x W x H 438 x 438 x 212 (17.2 x 17.2 x 8.3)
  • Multipack weight kg (lb) 5.7 (12.6)
€ 159,00 Price incl. VAT
