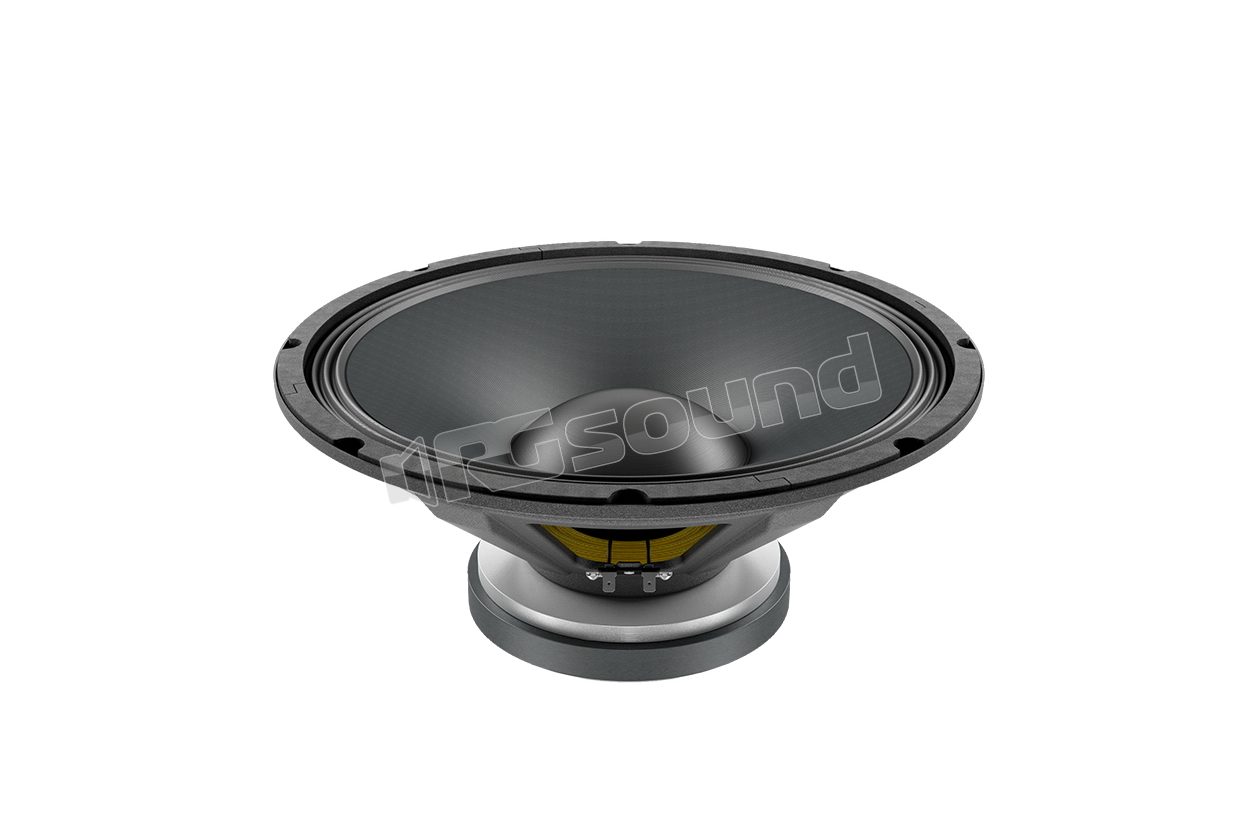

SSF153.00 15"/380mm Subwoofer

LaVoce
Your price:
€ 139,40
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Subwoofer
Speaker Size
380 mm
MAX Power
800 Watt
RMS Power
400 Watt
Frequency Response
45 - 1000 Hertz
Sensitivity
97 dB
Impedance
8 Ohm
Weight
10,7 Kg
Voice Coil Diameter
75 mm

LaVoce SSF153.00 15"/380mm Subwoofer

LaVoce code 70R11151

SSF153.00 Features

  • 3 inch copper voice coil
  • Sensitivity 97 db/spl
  • Program handling power 800 watt
  • Motor and suspensions optimized for FEM
  • Resonance-free and resistant basket design
  • Triple roll surround

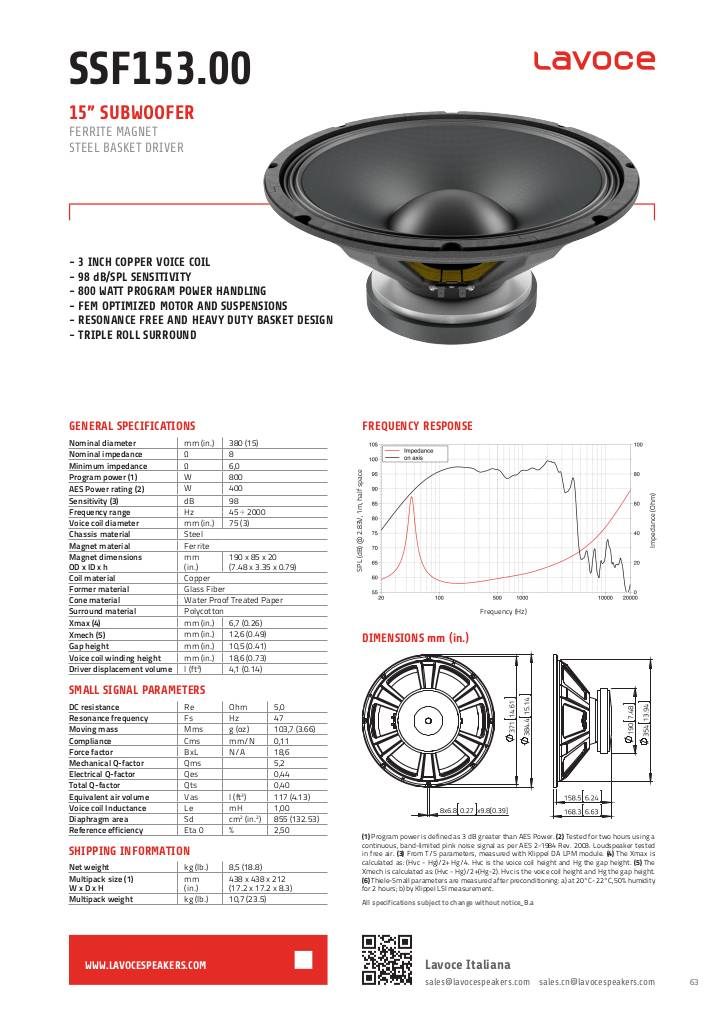

scheda tecnica

1549117372-ssf15300-1.pdf

LaVoce SSF153.00 Technical Specifications

  • Nominal diameter mm (in) 380 (15)
  • Nominal impedance Ohm 8
  • Minimum impedance Ohm 6
  • Program power W 800
  • AES power W 400
  • Sensitivity dB 98
  • Frequency range Hz 45 ÷ 2000
  • Voice coil diameter mm (in) 75 (3)
  • Basket material Steel
  • Magnet material Ferrite
  • Magnet dimensions OD x ID x h mm (in) 190 x 85 x 20 (7.48 x 3.35 x 0.79)
  • Coil material Copper
  • Structure material Fiberglass
  • Cone material Water-resistant coated paper
  • Surround material Polycotton
  • Xmax mm (in) 6.7 (0.26)
  • Xmech mm (in) 12.6 (0.49)
  • Gap height mm (in) 10.5 (0.41)
  • Voice coil winding height mm (in) 18.6 (0.73)
  • Driver displacement volume l (ft³) 4.1 (0.14)
  • DC resistance Ohm 5.0
  • Resonance frequency Hz 47
  • Moving mass g (oz) 103.7 (3.66)
  • Compliance mm/N 0.11
  • Force factor N/A 18.6
  • Mechanical Q factor 5.2
  • Electrical Q factor 0.44
  • Total Q factor 0.40
  • Equivalent air volume l (ft3) 117 (4.13)
  • Voice coil inductance mH 1.00
  • Diaphragm area cm2 (in.2) 855 (132.53)
  • Reference efficiency 2.50%
  • Net weight kg (lb) 8.5 (18.8)
  • Multipack dimensions L x W x H 438 x 438 x 212 (17.2 x 17.2 x 8.3)
  • Multipack weight kg (lb) 10.7 (23.5)
€ 139,40 Price incl. VAT
