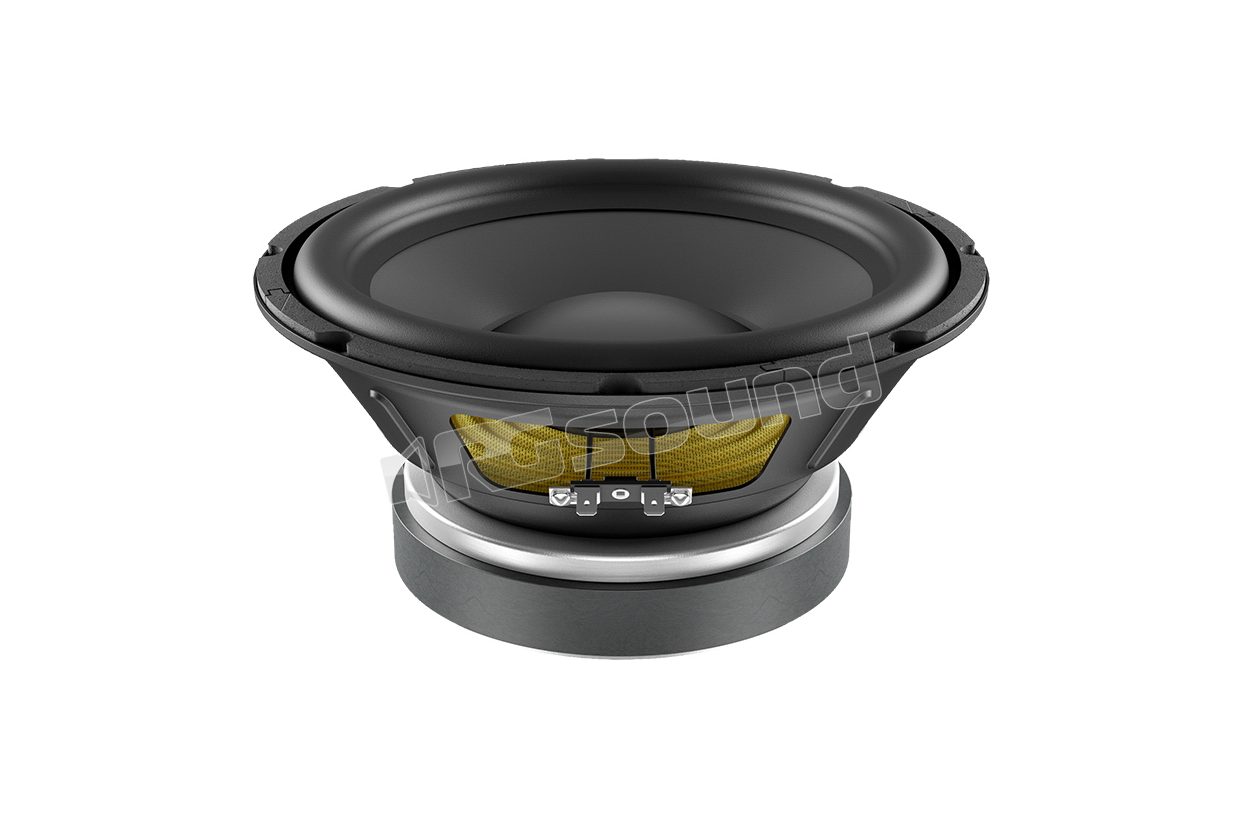

SSF102.50L 10"/250mm Subwoofer

LaVoce
Your price:
€ 110,90
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Subwoofer
Speaker Size
250 mm
MAX Power
800 Watt
RMS Power
400 Watt
Frequency Response
50 - 500 Hertz
Sensitivity
91,5 dB
Impedance
8 Ohm
Weight
7,1 Kg
Voice Coil Diameter
65 mm

LaVoce SSF102.50L 10"/250mm Subwoofer

LaVoce code 70R05100

SSF102.50L Features

  • 2.5 inch voice coil CCAW
  • Sensitivity 91.5 db/spl
  • Program handling power 800 watts
  • Long throw design
  • 34 mm (1.3 inches) maximum excursion peak to peak
  • Motor and suspensions optimized for FEA
  • Resonance free and rigid basket design
  • Optimized cooling system
  • Rubber surround material

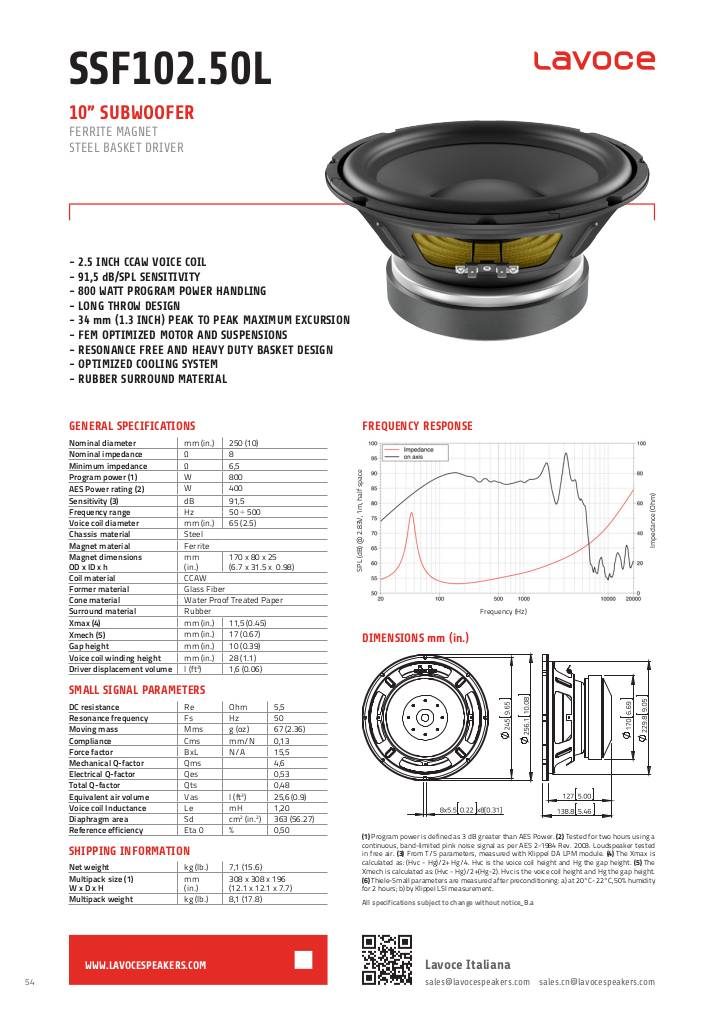

scheda tecnica

1549117395-ssf10250l-1.pdf

LaVoce SSF102.50L Technical Specifications

  • Nominal diameter mm (in) 250 (10)
  • Nominal impedance Ohm 8
  • Minimum impedance Ohm 6.5
  • Program power W 800
  • AES power W 400
  • Sensitivity dB 91.5
  • Frequency range Hz 50 ÷ 500
  • Voice coil diameter mm (in) 65 (2.5)
  • Frame material Steel
  • Magnet material Ferrite
  • Magnet dimensions OD x ID x h mm (in) 170 x 80 x 25 (6.7 x 31.5 x 0.98)
  • Coil material CCAW
  • Forming material Fiberglass
  • Cone material Water proof treated paper
  • Surround material Rubber
  • Xmax mm (in) 11.5 (0.45)
  • Xmech mm (in) 17 (0.67)
  • Gap height mm (in) 10 (0.39)
  • Voice coil winding height mm (in) 28 (1.1)
  • Driver displacement volume l (ft³) 1.6 (0.06)
  • DC resistance Ohm 5.5
  • Resonance frequency Hz 50
  • Moving mass g (oz) 67 (2.36)
  • Compliance mm/N 0.13
  • Force factor N/A 15.5
  • Mechanical Q factor 4.6
  • Electrical Q factor 0.53
  • Total Q factor 0.48
  • Equivalent air volume l (ft3) 25.6 (0.9)
  • Voice coil inductance mH 1.20
  • Diaphragm area cm2 (in.2) 363 (56.27)
  • Reference efficiency 0.5%
  • Net weight kg (lb) 7.1 (15.6)
  • Multipack dimensions L x W x H 308 x 308 x 196 (12.1 x 12.1 x 7.7)
  • Multipack weight kg (lb) 8.1 (17.8)
€ 110,90 Price incl. VAT
