SSF082.00L 8"/200mm Subwoofer

LaVoce
Your price:
€ 85,50
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Subwoofer
Speaker Size
200 mm
MAX Power
700 Watt
RMS Power
350 Watt
Frequency Response
50 - 500 Hertz
Sensitivity
87 dB
Impedance
8 Ohm
Weight
4,1 Kg
Voice Coil Diameter
51 mm

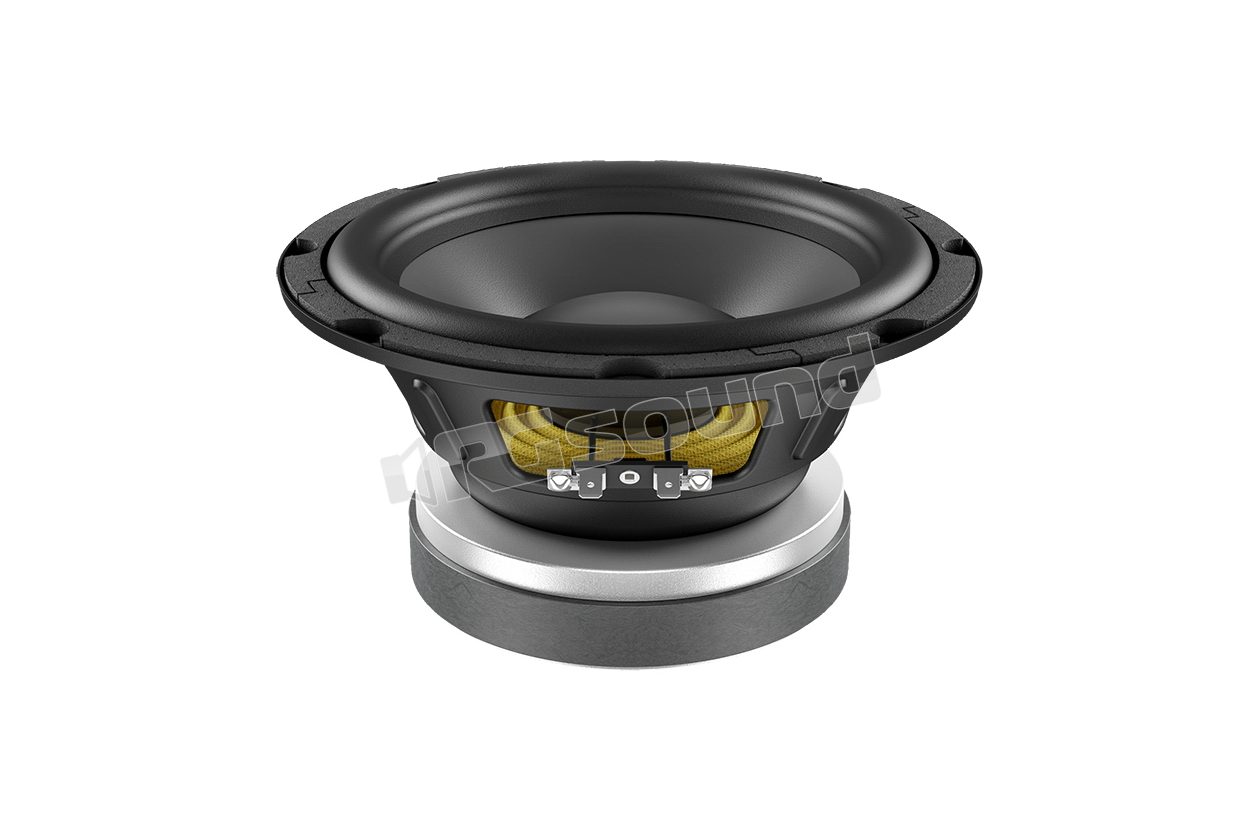

LaVoce SSF082.00L 8"/200mm Subwoofer

LaVoce code 70R05080

SSF082.00L Features

  • 2 inch voice coil in CCAW
  • Sensitivity 87 db/spl
  • Program power handling of 700 watts
  • Long-throw design
  • Maximum excursion peak-to-peak 29 mm (1.1 inches)
  • Motor and suspensions optimized for FEM
  • Resonance-free and durable basket design
  • Optimized cooling system
  • Rubber surround material

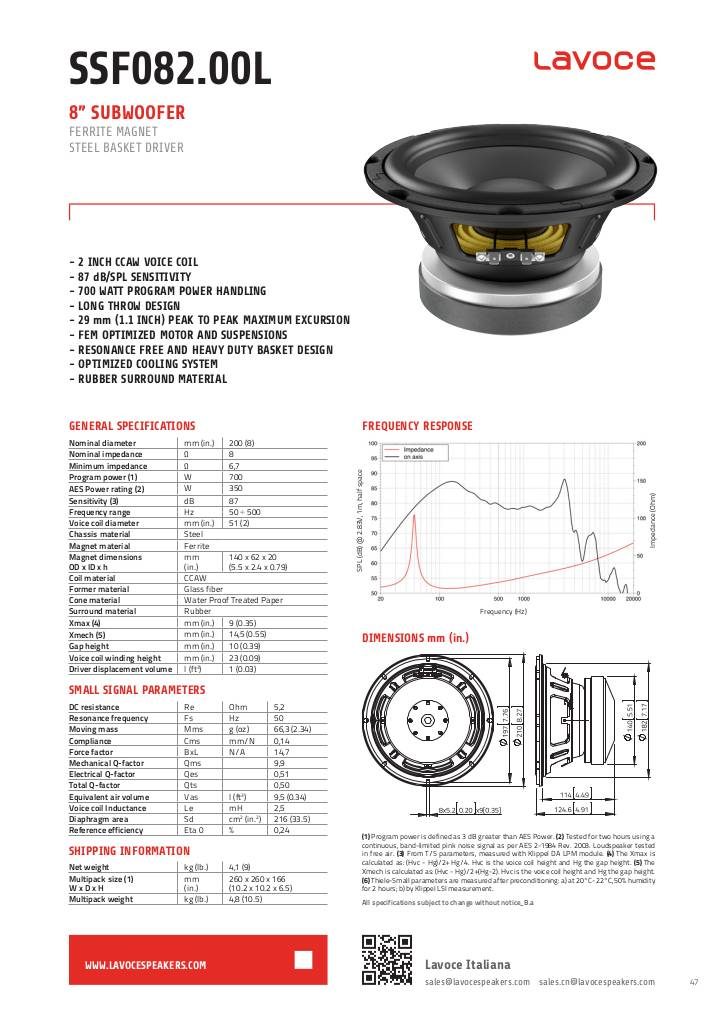

scheda tecnica

1549117381-ssf08200l-1.pdf

LaVoce SSF082.00L Technical Specifications

  • Nominal diameter mm (in) 200 (8)
  • Nominal impedance Ohm 8
  • Minimum impedance Ohm 6.7
  • Program power W 700
  • AES power W 350
  • Sensitivity dB 87
  • Frequency range Hz 50 ÷ 500
  • Voice coil diameter mm (in) 51 (2)
  • Frame material Steel
  • Magnet material Ferrite
  • Magnet dimensions OD x ID x h mm (in) 140 x 62 x 20 (5.5 x 2.4 x 0.79)
  • Coil material CCAW
  • Surround material Fiberglass
  • Cone material Water-proof treated paper
  • Surround material Rubber
  • Xmax mm (in) 9 (0.35)
  • Xmech mm (in) 14.5 (0.55)
  • Gap height mm (in) 10 (0.39)
  • Voice coil winding height mm (in) 23 (0.09)
  • Driver displacement volume l (ft³) 1 (0.03)
  • DC resistance Ohm 5.2
  • Resonance frequency Hz 50
  • Moving mass g (oz) 66.3 (2.34)
  • Compliance mm/N 0.14
  • Force factor N/A 14.7
  • Mechanical Q factor 9.9
  • Electrical Q factor 0.51
  • Total Q factor 0.50
  • Equivalent air volume l (ft3) 9.5 (0.34)
  • Voice coil inductance mH 2.5
  • Diaphragm area cm2 (in.2) 216 (33.5)
  • Reference efficiency 0.24
  • Net weight kg (lb) 4.1 (9)
  • Multipack dimensions L x W x H 260 x 260 x 166 (10.2 x 10.2 x 6.5)
  • Multipack weight kg (lb) 4.8 (10.5)
€ 85,50 Price incl. VAT
