SSF081.50 8"/200mm Subwoofer

LaVoce

Discontinued

Your price:
€ 40,10
Price per single item (VAT included)
Type
Subwoofer
Speaker Size
200 mm
MAX Power
400 Watt
RMS Power
200 Watt
Frequency Response
50 - 500 Hertz
Sensitivity
89 dB
Impedance
8 Ohm
Weight
2,5 Kg
Voice Coil Diameter
38 mm

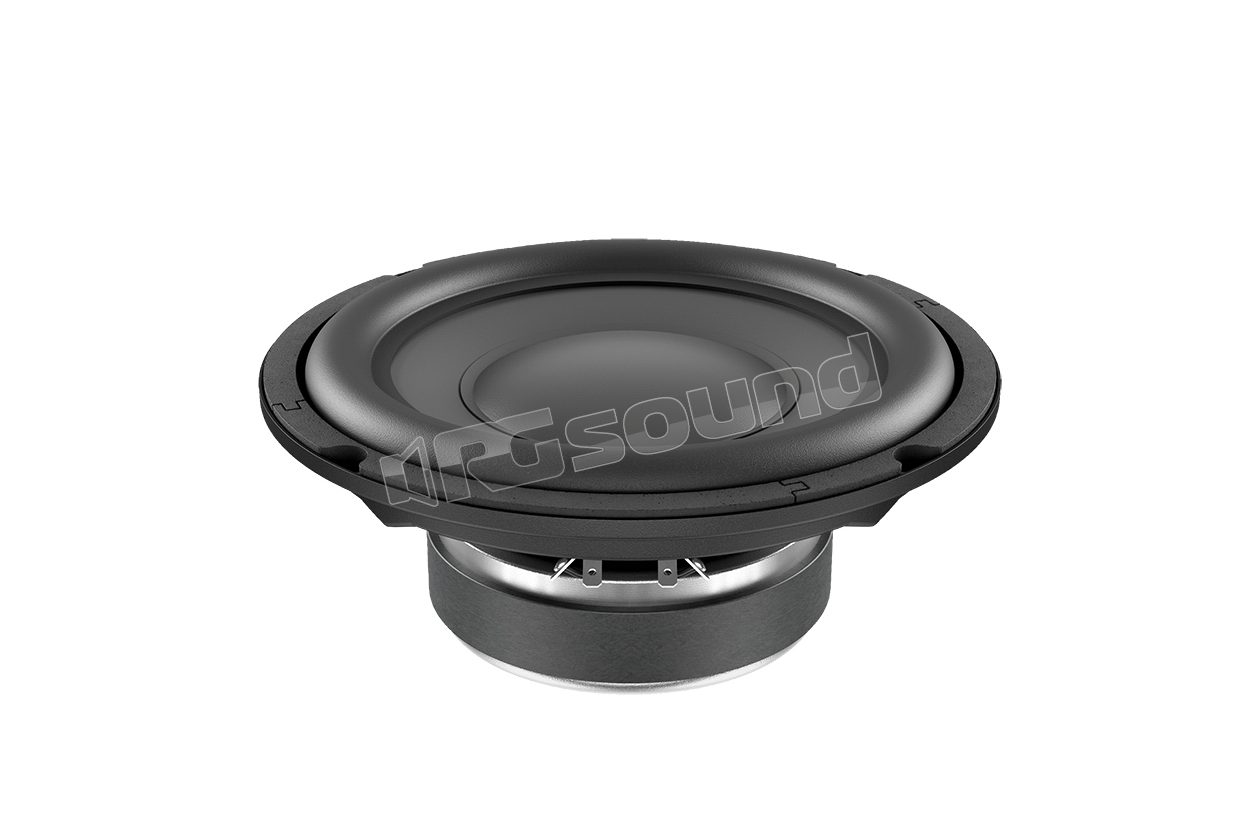

LaVoce SSF081.50 8"/200mm Subwoofer

LaVoce code 70R06080

SSF081.50 Features

  • 1.5 inch copper voice coil
  • Sensitivity 89 db/spl
  • Program handling power of 400 watts
  • Maximum peak-to-peak excursion 21 mm (0.8 inches)
  • FEM optimized motor and suspension
  • Installation depth 70 mm
  • Resonance-free and resilient steel basket design
  • Rubber surround material

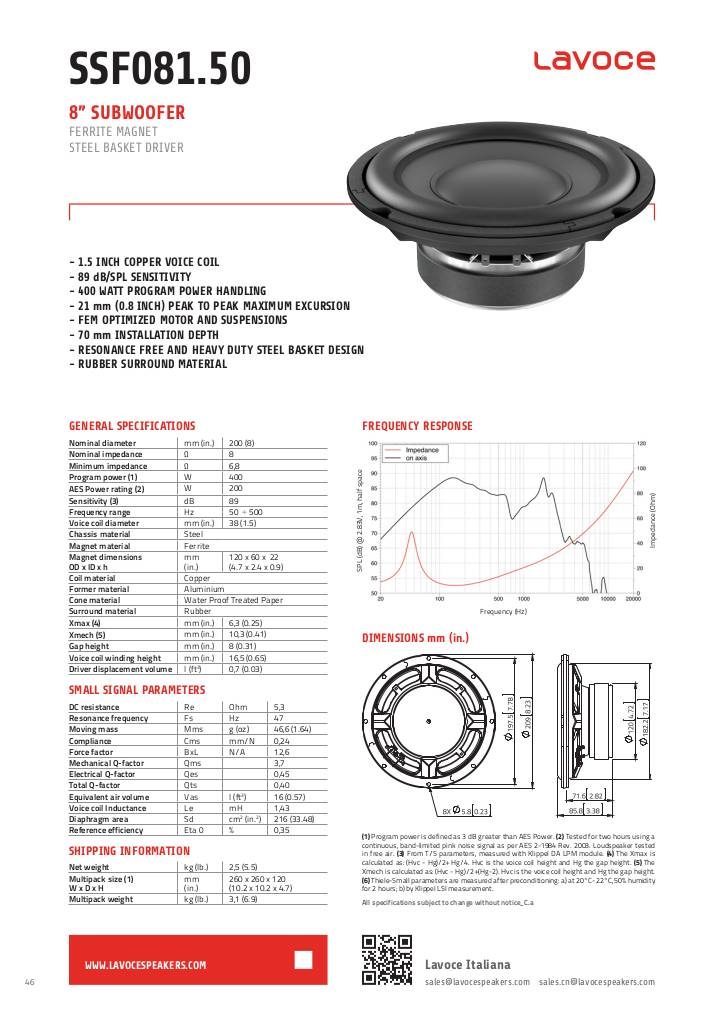

scheda tecnica

1549117366-ssf08150-1.pdf

LaVoce SSF081.50 Technical Specifications

  • Nominal diameter mm (in) 200 (8)
  • Nominal impedance Ohm 8
  • Minimum impedance Ohm 6.8
  • Program power W 400
  • AES power W 200
  • Sensitivity dB 89
  • Frequency range Hz 50 ÷ 500
  • Voice coil diameter mm (in) 38 (1.5)
  • Frame material Steel
  • Magnet material Ferrite
  • Magnet dimensions OD x ID x h mm (in) 120 x 60 x 22 (4.7 x 2.4 x 0.9)
  • Coil material Copper
  • Structure material Aluminum
  • Cone material Water-proof treated paper
  • Surround material Rubber
  • Xmax mm (in) 6.3 (0.25)
  • Xmech mm (in) 10.3 (0.41)
  • Gap height mm (in) 8 (0.31)
  • Voice coil winding height mm (in) 16.5 (0.65)
  • Driver displacement volume l (ft³) 0.7 (0.03)
  • DC resistance Ohm 5.3
  • Resonance frequency Hz 47
  • Moving mass g (oz) 46.6 (1.64)
  • Compliance mm/N 0.24
  • Force factor N/A 12.6
  • Mechanical Q factor 3.7
  • Electrical Q factor 0.45
  • Total Q factor 0.40
  • Equivalent air volume l (ft3) 16 (0.57)
  • Voice coil inductance mH 1.43
  • Diaphragm area cm2 (in.2) 216 (33.48)
  • Reference efficiency 0.35%
  • Net weight kg (lb) 2.5 (5.5)
  • Multipack dimensions L x W x H 260 x 260 x 120 (10.2 x 10.2 x 4.7)
  • Multipack weight kg (lb) 3.1 (6.9)
Discontinued
