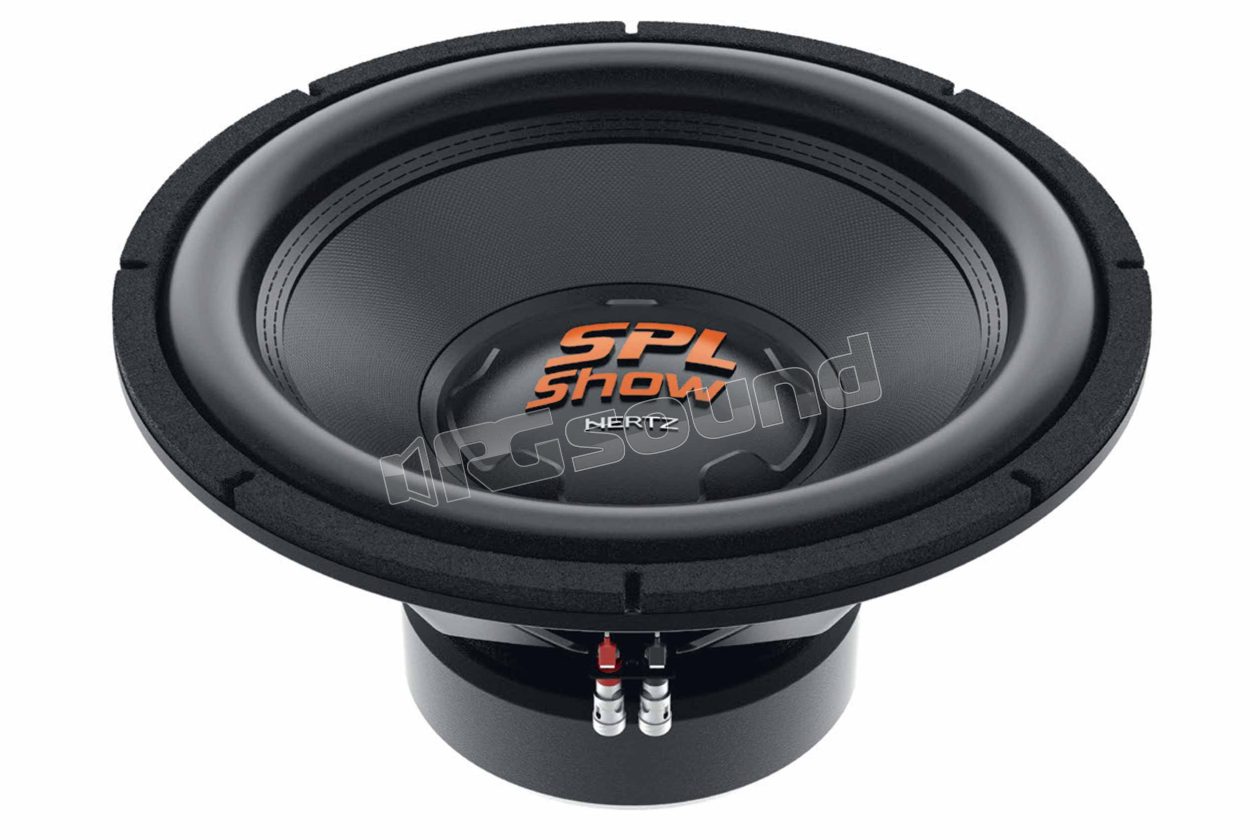

SS 15 D2 38cm SPL SHOW subwoofer for competitions

Hertz
Your price:
€ 299,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Subwoofer
Speaker Size
380 mm
MAX Power
2400 Watt
RMS Power
1200 Watt
Sensitivity
88 dB
Impedance
2 + 2 Ohm
Weight
10 Kg
Installation Depth
188 mm
Woofer Material
Cellulosa trattata

Hertz SS 15 D2 Subwoofer 380mm SPL SHOW series for SPL competitions - maximum power of 2400W

The new SS 12 D2 and SS 15 D2 subwoofers, with a diameter of 30 cm (12 inches) and 38 cm (15 inches) respectively, are eager to thrill enthusiasts with their power. They feature a reinforced suspension system with a dual-layer progressive spider that maintains consistent performance over time, especially in the heavy use typical of bass.

Heat dissipation is essential for this type of use and has been maximized through careful design. The use of a robust dual 75 mm (3 inch) winding (2 + 2 Ω) voice coil developed in a 4-layer configuration on a support with ventilation holes allows the SS 12 D2 and SS 15 D2 to handle 2000 W and 2400 W of peak power respectively! They are subwoofers designed for optimal heat dissipation and high mechanical resistance.

Non-pressed paper cone with the addition of cotton fiber: it is the ideal compromise between rigidity and lightness, essential for a high sensitivity value. The suspensions and leadwires are oversized to withstand the very high excursions generated by the massive ferrite motor. The push connectors accept cables up to 12 AWG section, for a practical and safe connection, suitable for the high currents involved.

SS 15 D2 Features

  • Dual 75 mm voice coil (2 + 2 Ω) developed in 4-layer configuration on a support with ventilation holes for a peak power of 24,000 W.
  • Dual-layer spider with progressive profile for maximum consistency of performance over time.
  • Multi-layer foam surround to ensure very high excursion, essential for generating high SPL during bass wars.
  • Suspensions and leadwires oversized to withstand very high excursions.
  • Impressive oversized ferrite magnet assembly for maximum control.
  • Nickel-plated 12 AWG high-current push connectors for a practical and safe connection.
  • Non-pressed paper cone with cotton fiber addition for maximum sensitivity.

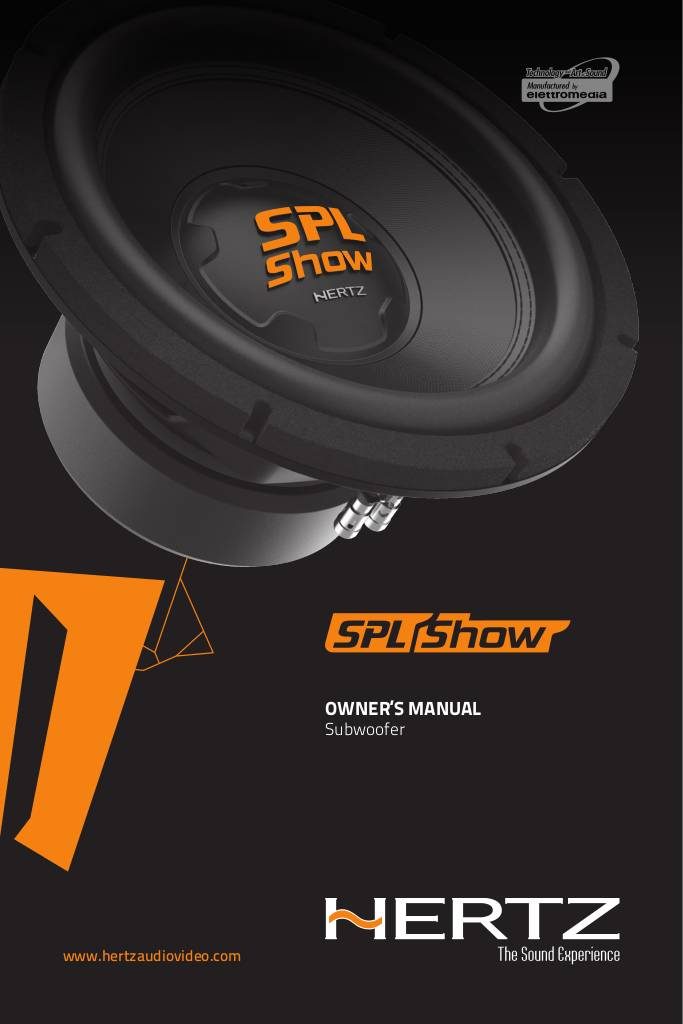

Manuale di uso e installazione

n-20190213120738-hertz-owners-manual-spl-show-ss-12-d2-ss-15-d21.pdf

Hertz SS 15 D2 Technical Specifications

  • Dimensions mm 380
  • Continuous power handling W 1200
  • Peak power handling W 2400
  • Impedance Ohm 2 + 2
  • Depth mm 210
  • Voice coil type dual
  • No filter SPL DUAL COIL SUBWOOFER component
  • Voice coil Ø 75 (3)
  • Magnet dimensions D x d x h mm 180 x 90 x 40
  • Component weight kg 10.1
  • Magnet Ferrite
  • Cone Non-pressed paper with cotton fiber
  • Xmech mm 20.7
€ 299,00 Price incl. VAT
