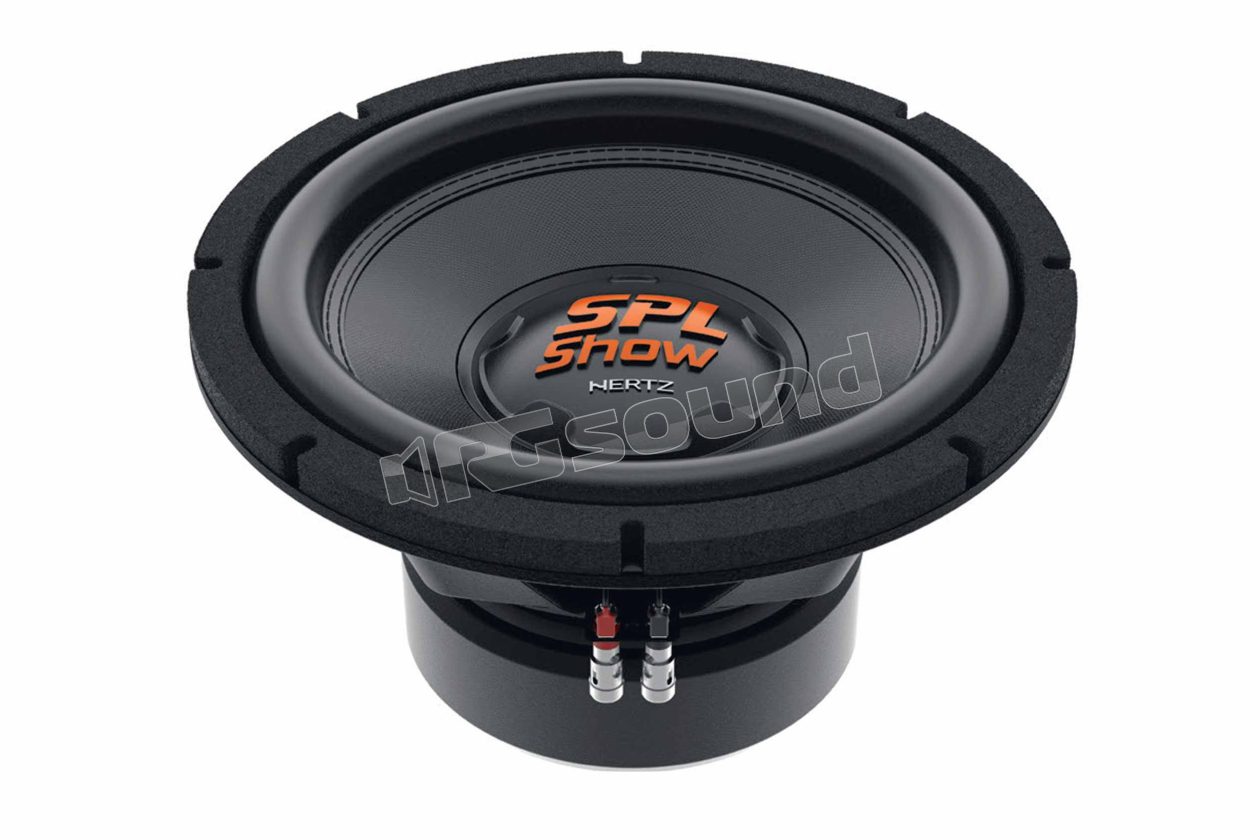

SS 12 D2 30cm 2000W subwoofer for SPL

Hertz
Your price:
€ 239,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Subwoofer
Speaker Size
300 mm
MAX Power
2000 Watt
RMS Power
1000 Watt
Sensitivity
86 dB
Impedance
2 + 2 Ohm
Weight
8,8 Kg
Installation Depth
161 mm
Woofer Material
Cellulosa trattata

Hertz SS 12 D2 subwoofer 300mm from the SPL SHOW series for SPL competitions and maximum power of 2000W

The new SS 12 D2 and SS 15 D2 subwoofers, with diameters of 30 cm (12 inches) and 38 cm (15 inches) respectively, are eager to thrill enthusiasts with their power. They have a reinforced suspension system with a dual-layer progressive spider that maintains consistent performance over time, especially in the heavy use typical of bass.

Heat dissipation is essential for this type of use and has been maximized thanks to careful design. The use of a robust dual winding of 75 mm (3 inches) (2 + 2 Ω) voice coil developed in a 4-layer configuration on a support with ventilation holes allows the SS 12 D2 and SS 15 D2 to handle 2000 W and 2400 W of peak power respectively! These are subwoofers designed for optimal heat dissipation and high mechanical resistance.

Unpressed paper cone with the addition of cotton fiber: it is the ideal compromise between rigidity and lightness, essential for a high sensitivity value. The suspensions and leadwires are oversized to withstand the very high excursions generated by the massive ferrite motor. The push connectors accept cables with sections up to 12 AWG, for a practical and secure connection, suitable for the high currents involved.

SS 12 D2 Features

  • Dual 75 mm voice coil (2 + 2 Ω) developed in a 4-layer configuration on support with ventilation holes for peak power of 2000 W.
  • Dual-layer spider with progressive profile for maximum performance consistency over time.
  • Multi-layer foam surround to ensure very high excursion, essential for generating high SPL during Bass Wars.
  • Oversized suspensions and conductors to withstand very high excursions.
  • Oversized ferrite magnet assembly for maximum control.
  • 12 AWG high current nickel-plated push connectors for practical and safe use.
  • Unpressed paper cone with added cotton fiber for maximum sensitivity.

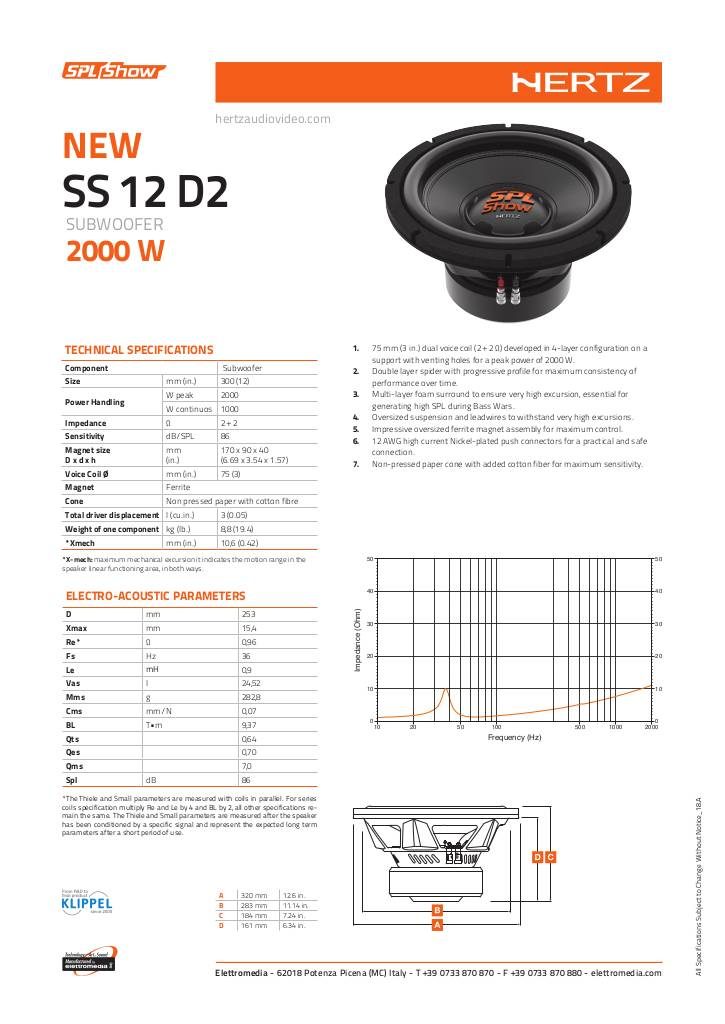

Scheda tecnica

n-20230927093831-hertz-spl-ss-12-d2.pdf

Hertz SS 12 D2 Technical Specifications

  • Dimensions mm (in.) 300 (12)
  • Power handling - continuous W 1000
  • Power handling - Peak W 2000
  • Impedance Ohm 2+2
  • Depth mm (in.) 184 (7.24)
  • Voice coil type dual
  • No filter SPL DUAL COIL SUBWOOFER component
  • Voice coil Ø 75 (3)
  • Magnet dimensions D x d x h mm (in.) 170 x 90 x 40 (6.69 x 3.54 x 1.57)
  • Weight of one component kg (lb.) 8.8 (19.4)
  • Magnet Ferrite
  • Cone Unpressed paper with cotton fiber
  • Xmech mm (in.) 20.7 (0.81)
  • Technical specifications
  • D mm 253
  • Xmax mm 15.4
  • Re Ohm 0.96
  • Fs Hz 36
  • Le mH 0.9
  • Vas I 24.52
  • Mms g 282.8
  • Cms mm/N 0.07
  • BL T*m 9.37
  • Qts 0.64
  • Qes 0.70
  • Qms 7.0
  • Spl dB 86
