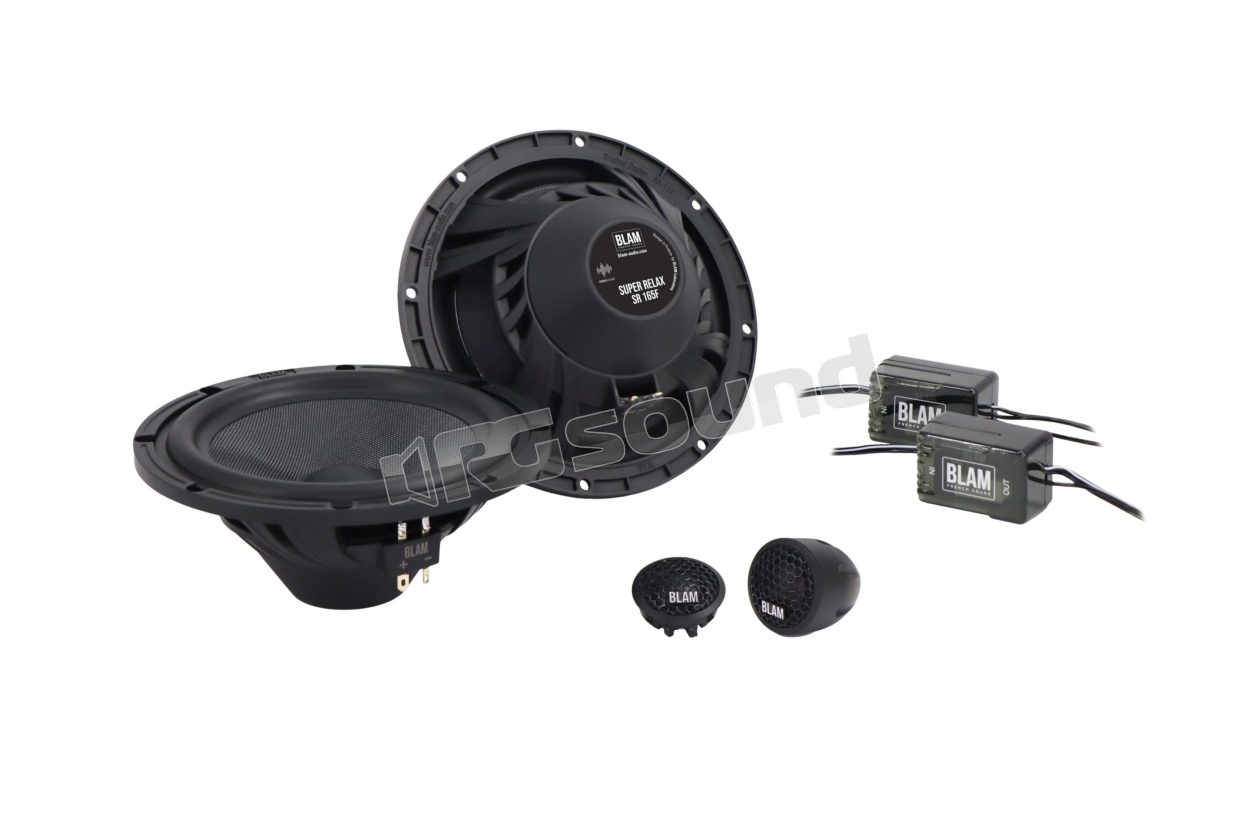

SR 165F 2-way system 165 mm woofer - 20 mm tweeter - 90dB - 2?

BLAM
Your price:
€ 255,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
2-way separate kit
Frequency Response
60 Hz - 8 KHz Hertz
Woofer Size
165 mm
MAX Power
150 Watt
RMS Power
75 Watt
Sensitivity
91 dB
Impedance
3 Ohm

BLAM SR 165F 2-way system 165 mm woofer - Tw 20 mm. - 90dB - 2Ω


This two-way system offers exceptional audio performance, ideal for the most demanding sound enthusiasts. With a maximum power of 150 W and a rated power of 75 W, frequency response from 60 Hz to 25 kHz, impedance of 3 Ω and sensitivity of 91 dB, it guarantees dynamic and balanced audio reproduction. The kit includes a 165 mm woofer with a composite basket reinforced with fiberglass, a fiberglass cone for precise response and butyl perimeter suspension for optimal durability.

The long-lasting "Conex" spider, the 25 mm voice coil on aluminum support and the 24.5 x 6 mm magnetic motor with 5 mm magnetic circuit complete the technical specifications for exceptional audio quality. The 20 mm tweeters, equipped with soft dome and N38 neodymium motor, include 6 dB/octave high-pass filters and offer adjustable levels of 0 dB or -3 dB for advanced customization. The kit also includes two woofers, two tweeters, two crossovers, mounting screws, mounting accessories for the tweeters, an angled bracket and user instructions, offering a complete and high-quality solution.

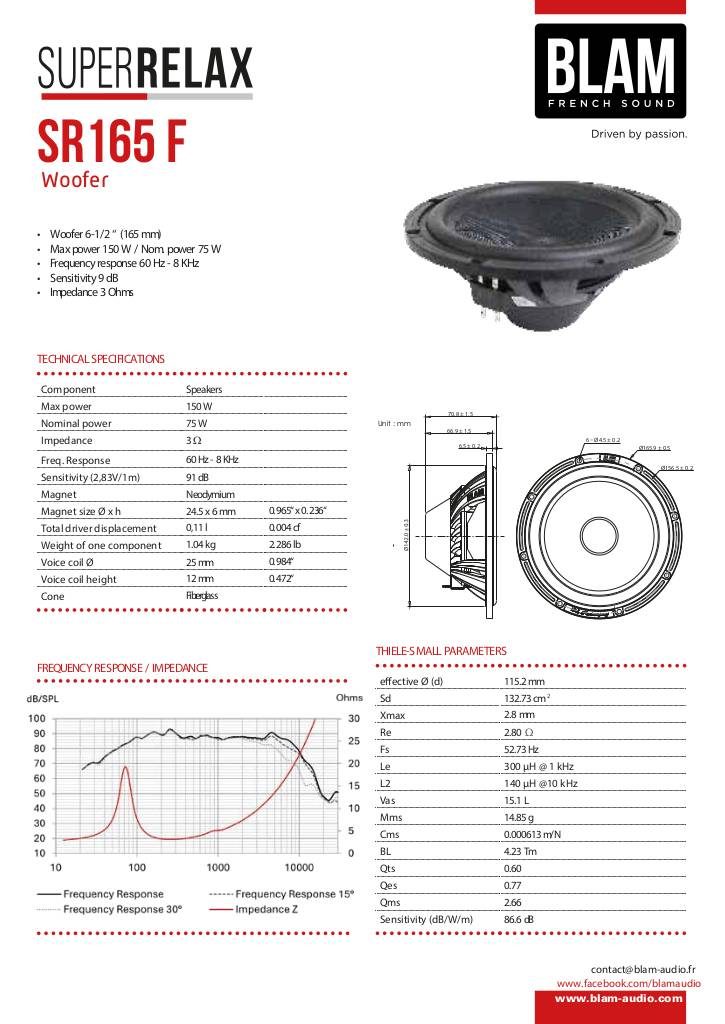

n-20250408104628-sr-165f.pdf

BLAM SR 165F Technical specifications

  • Maximum power 150 W
  • Rated power 75 W
  • Impedance 3 Ω
  • Frequency response 60 Hz - 8 KHz
  • Sensitivity (2.83V/1m) 91 dB
  • Magnet Neodymium
  • Magnet size Ø x h 24.5 x 6 mm
  • Total driver displacement 0.11 l
  • Component weight 1.04 kg
  • Voice coil Ø 25 mm
  • Voice coil height 12 mm
  • Cone Fiberglass
€ 255,00 Price incl. VAT
