SQ 6/K

Tec

Discontinued

Your price:
€ 325,00
Price per single item (VAT included)
Type
2-way separate kit
Woofer Size
165 mm
Woofer Material
Magnesio pressofuso

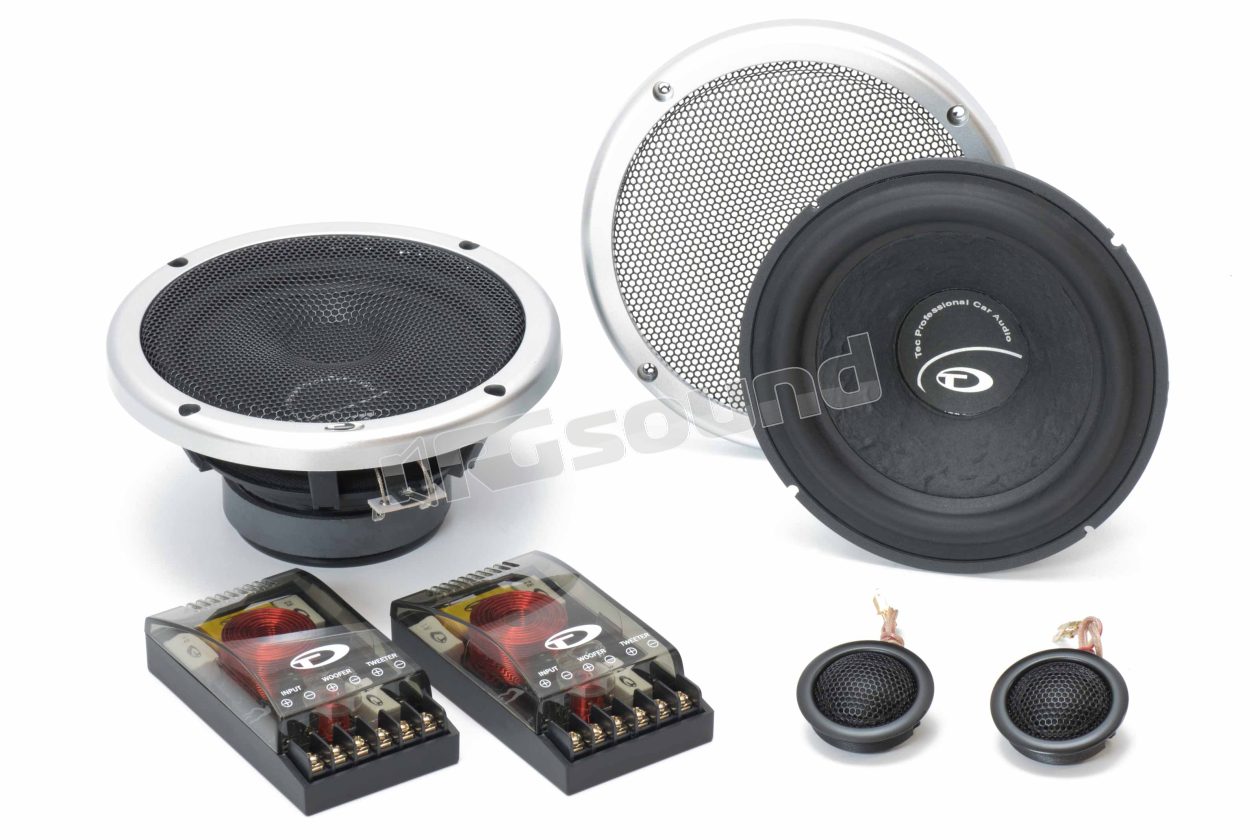

Tec SQ 6/K 2-way kit Sound Quality - 165 mm woofer, dedicated crossover and grilles

The particular shape of the tweeter dome and the material used in its construction provide excellent frequency response both on-axis and off-axis.

Decisive and deep timbre for woofers, cellulose cones are synonymous with Natural Sound. High linearity of frequency response and low distortion of suspensions. Asymmetric rubber surround made with NR (Non Resonant) technology. Die-cast magnesium baskets guarantee correct mechanical stability over time (without demagnetizing the magnetic assembly). Insensitive to humidity, temperature and UV rays.

Tweeters: SQ 25n

  • Max Power: 80 Watt
  • RMS Power: 40 Watt
  • Nominal Impedance: 4 Ohm
  • Frequency Response: 2.500 ÷ 20.000 Hz
  • Sensitivity: 91 dB (2.83 V/1 m)
  • Resonance Frequency: 1.750 Hertz
  • Voice Coil Diameter: 25 mm
  • Neodymium Magnet
  • External Diameter: 50 mm
  • Installation Hole: 43 mm
  • Depth: 14 mm

Woofers: SQ 6

  • Max Power: 220 Watt
  • RMS Power: 110 Watt
  • Nominal Impedance: 4 Ohm
  • Frequency Response: 55 ÷ 8.000 Hz
  • Sensitivity: 90 dB (2.83 V/1 m)
  • Resonance Frequency: 55 Hertz
  • Voice Coil Diameter: 30.55 mm
  • Die-cast Magnesium Basket
  • External Diameter: 165 mm
  • Installation Hole: 160.5 mm
  • Depth: 69 mm

2-way Crossover

  • Crossover Frequency: 3.000 Hz
  • Slope: 12 dB/oct

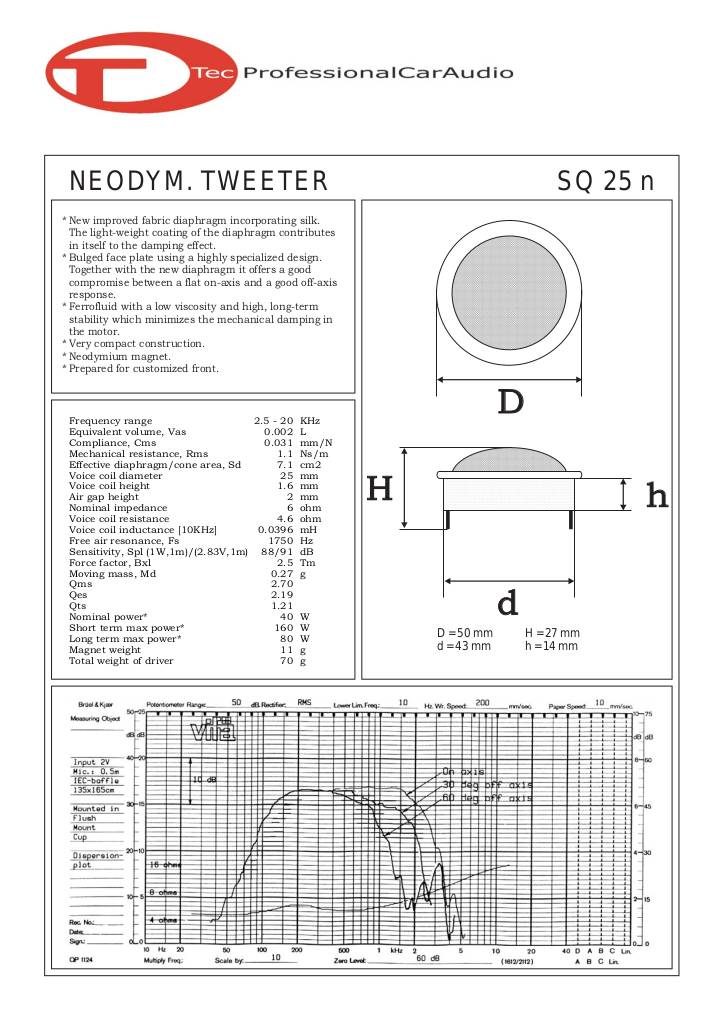

Scheda tecnica tweeter

20120131104914-sq25n.pdf

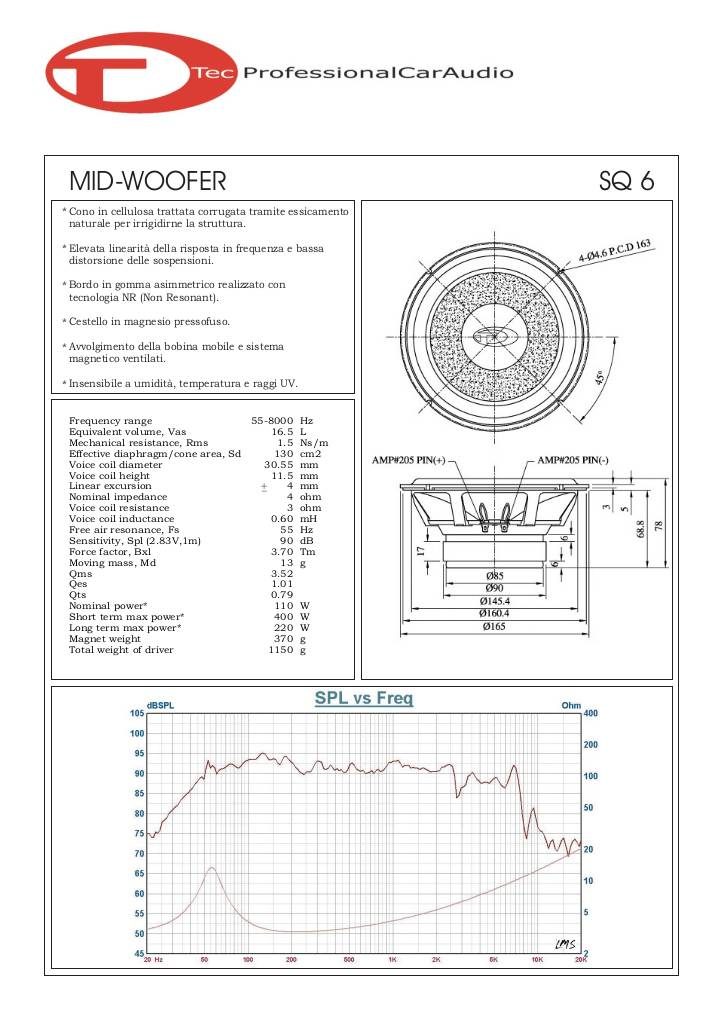

Scheda tecnica woofer

20120131104914-sq6.pdf

Pair of woofers Pair of tweeters
Discontinued
