SQ 3 cone midrange

Tec

Discontinued

Your price:
€ 79,70
Price per pair (VAT included)
Type
Midrange
Speaker Size
80 mm
MAX Power
120 Watt
RMS Power
60 Watt
Frequency Response
300 - 15.000 Hertz
Sensitivity
89 dB
Impedance
4 Ohm
Installation Depth
40 mm
Midrange Cone Material
Alluminio

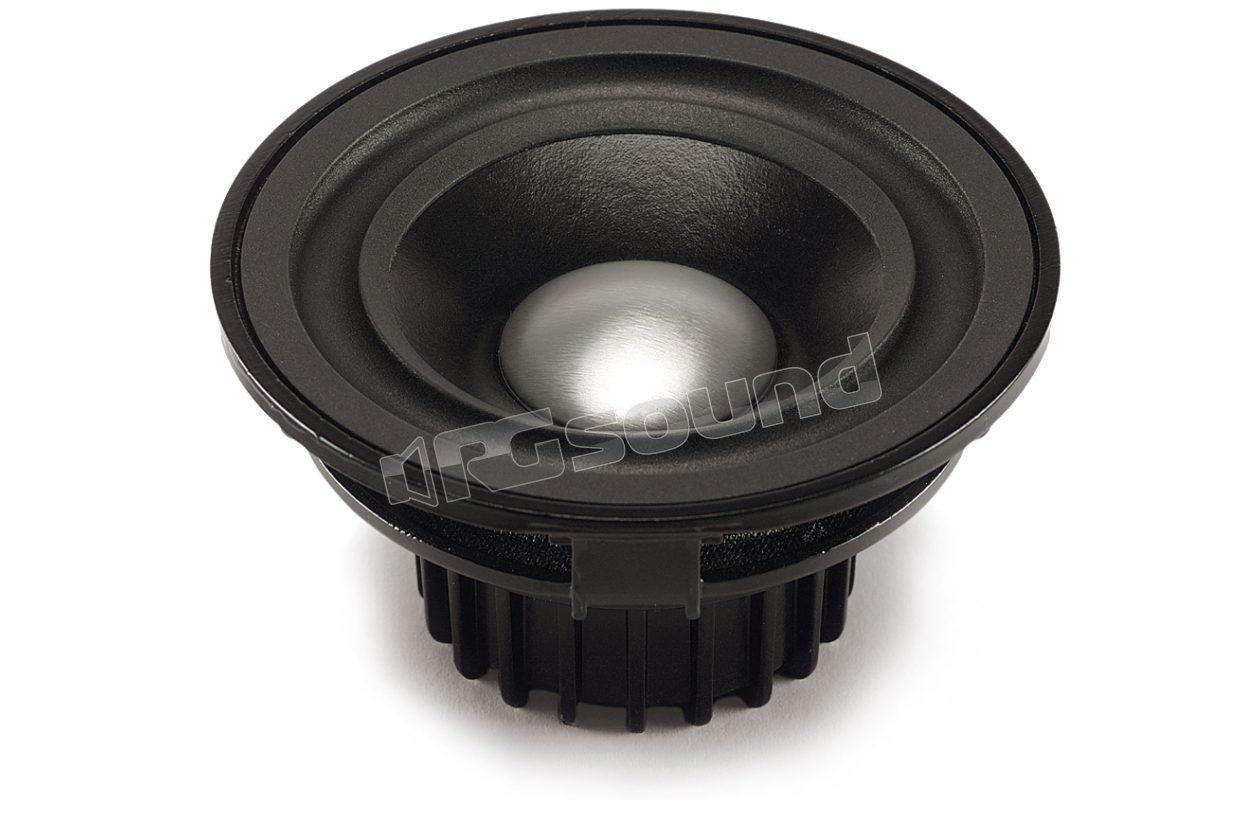

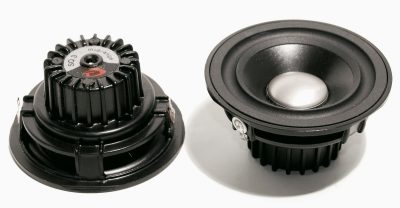

80mm midrange with neodymium magnets and aluminum die-cast basket

SQ Series ''Sound Quality'' by Tec: It stands at the top of the range and uses only the best materials available on the market for its components. The speakers will give you great emotions: the SQ3 and SQ4 midranges, with paper coated diaphragm, inverted rubber surround and neodymium magnet for high efficiency. A transparent film is applied to the cellulose cone to fill the pores and thus linearize the frequency response in the midrange.

SQ3 Features

  • Neodymium midrange
  • Diameter 80 mm
  • Installation depth 38 mm
  • Range 300-15000 Hz
  • Efficiency 89 dB
  • Maximum Power 120 Watt

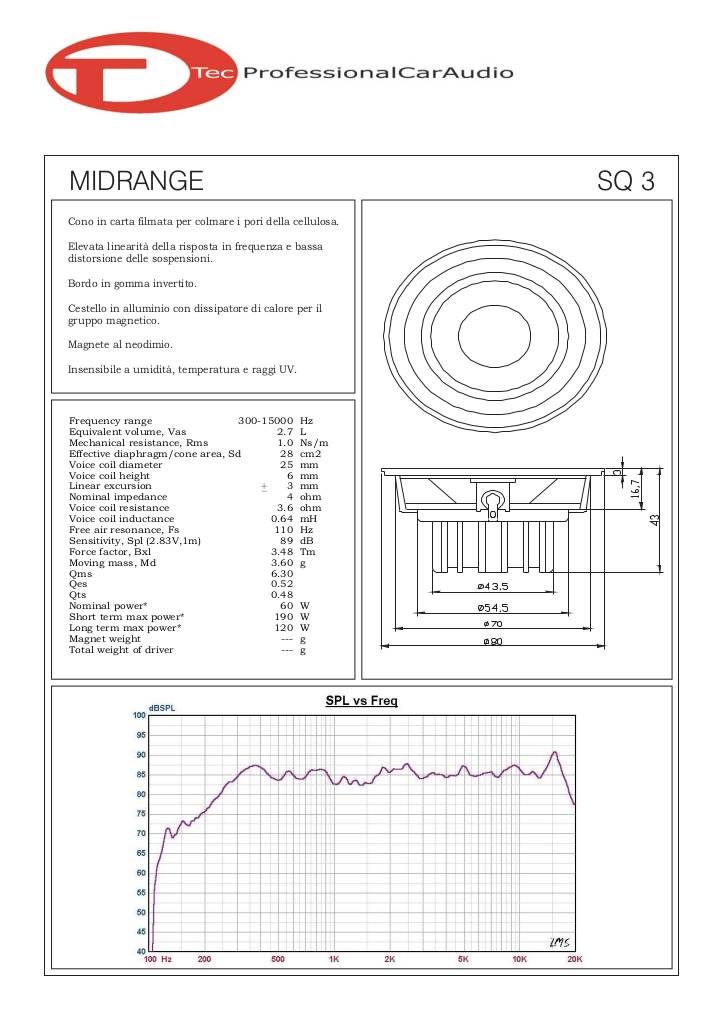

    All detailed specifications are in the attached technical sheet.

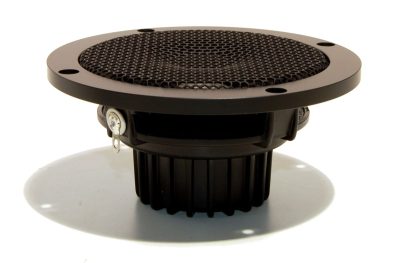

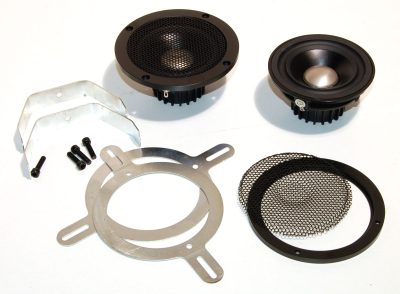

Numerous accessories are supplied to facilitate installation, including beautiful shaped grilles and aluminum turned flanges.


--------------------------------------------------------------------------------------------------------------------------------------------------

Package contents:

scheda tecnica - specifiche - grafico - progetto crossover

20061022025813-sq3.pdf

Pair of midranges
