SPX-13PRO

Alpine

Discontinued

Your price:
€ 504,10
Price per single item (VAT included)
Type
2-way separate kit
Frequency Response
40-60000 Hertz
Woofer Size
130 mm
Tweeter Size
40 millimetri
MAX Power
240 Watt
RMS Power
100 Watt
Sensitivity
87 dB
Impedance
4 Ohm
Woofer Material
Alluminio
Tweeter Material
Alluminio

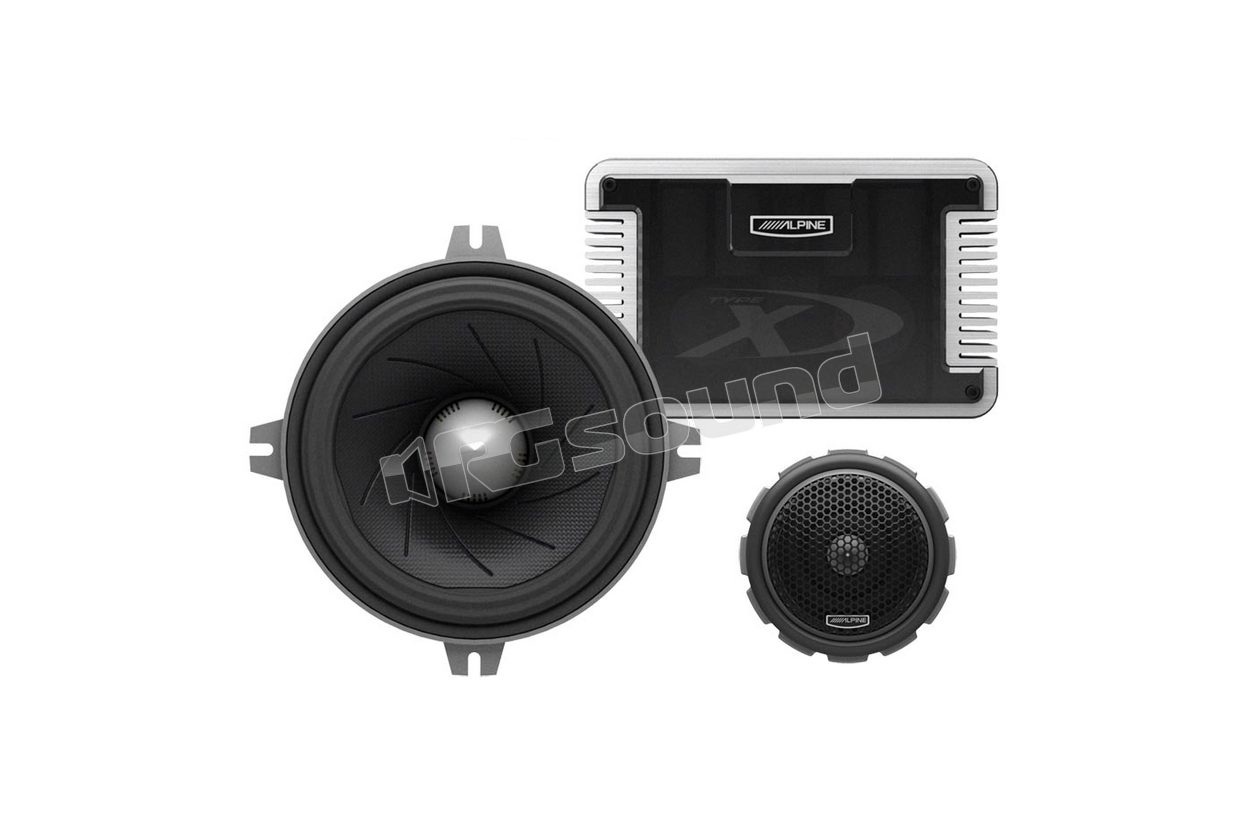

SPX-13PRO - 5-1/4" (13cm) 2-way separate speaker

The Type-X PRO speakers incorporate the perfect balance between design and technology.
These award-winning speakers have been designed with the idea of satisfying everyone who loves listening to pure sound using advanced technologies and excellent materials.
With Type X PRO speakers, Alpine offers you the possibility to experience pure sound inside your car cabin.


Listen to believe
After designing the award-winning line of SPX-17PRO/SPX-13PRO speakers, Alpine's absolute priority was to produce speakers with no compromise between sound and quality. The objective is to develop an advanced speaker system that provides a dynamic unparalleled musical experience. The SPX-17PRO/SPX-13PRO speakers offer high frequency response, excellent resolution and deep bass power. In the car you will be able to listen to every type of music catching all the nuances of a multidimensional sound that surrounds the listener.

Woofer material
The design of Type-X speakers begins with the choice of woofer materials. The SPX-17PRO/SPX-13PRO speakers have a fiberglass cone with crossed ribs. This sophisticated design helps increase sound amplification while the material guarantees better bass response. The NRSC certificate (Non-Resonant Suspension Coupling) is a guarantee of these performances. The aluminum used to make the outside of the speakers prevents any sound distortion to emit cleaner sound waves.

External design
These speakers can handle a lot of power thanks to the NBR patent (Natural Butyl Rubber). The design and material ensure that the magnet structure maintains stable suspension in any type of driving without sacrificing the cone amplitude. All this ensures the elimination of distortion for better bass response, better sound quality and increased woofer reliability.

Structure
The SPX-17PRO/SPX-13PRO speakers are very efficient. They have low mounting depth and a thin structure thanks to neodymium. Neodymium is a very rare and expensive magnet that guarantees excellent performance and good sound control compared to other magnets.

Design
Because heat causes distortions, the SPX-17PRO and SPX-13PRO speakers have an aluminum structure that isolates sound waves from heat and keeps them pure in any driving condition.

Tweeter technology
The SPX-17PRO/SPX-13PRO speakers offer exceptional sound reproduction in every detail. This tweeter has a diameter of 1.25". The tweeter is adjustable and allows easy control in sound adjustment.

Sound purity
The high quality of these speakers guarantees excellent sound reproduction inside any vehicle. Since every vehicle has its own internal configuration, Alpine's original technology allows the configuration of SPX-17PRO/SPX-13PRO speakers in any mounting bay. The technology has been designed to optimize speaker performance. Six different modules tune the system to have excellent frequency response regardless of the position of the speakers inside the vehicle. Also four tweeter levels can be selected to have better pure sound performance.

Easy installation
Installation is easy and fast. The SPX-17PRO/SPX-13PRO speakers can be mounted on any vehicle thanks to a precise and universal design.

Features
Crossover

Mounting: screw fastening holes
Attenuation: 4 levels
Design: Audiophile
Grade: Audiophile/Expert Grade Network

Woofer

External material: carbon and steel
Mounting: flush installation
Magnet: neodymium magnet
Cooling: conveyed air cooling
Voice Coil Type: High Temp VC CCAW Wire on 39 mm Aluminium Former
Motor technology: high heat dissipation
Cone material: fiberglass
Details: Machined Aluminum Phase Plug with Direct Heat Transfer Heat-Sink

Tweeter

Magnet material: neodymium
Application type/design detail: mounting kit
Mounting design: 13/16" depth
Tweeter type: 1-1/4" diameter

Specifications
General

Sensitivity: 87dB /W (1m)
Impedance: 4 Ohms
Frequency response: 40Hz - 60kHz

Dimensions

Crossover (in) : 4-13/32'' x 6-3/7'' x 1-1/4''
Crossover (mm): 112mm x 162mm x 32mm
Woofer mounting depth (in): 2-11/32''
Woofer mounting depth (mm): 59.4mm
Woofer mounting diameter (in): 4-17/32''
Woofer mounting diameter (mm):115mm
Woofer diameter (in): 5-1/8''
Woofer diameter (mm):130mm
Tweeter mounting depth (in): 45/64''
Tweeter mounting depth (mm): 18mm
Tweeter mounting diameter (in): 1-55/64''
Tweeter mounting diameter (mm): 47mm

Power

Power capacity (Peak): 240 watt
Power capacity (RMS): 100 watt
CEA-2031 Power Rating: 100 watt
