SPR-69

Alpine

Discontinued

Your price:
€ 150,10
Price per pair (VAT included)
Type
Coaxial
Speaker Size
6x9''
Coaxial Type
2-way
Frequency Response
60-29000 Hertz
MAX Power
300 Watt
RMS Power
100 Watt
Sensitivity
90 dB
Impedance
4 Ohm
Woofer Material
Composito di cellulosa
Tweeter Material
Composito di cellulosa

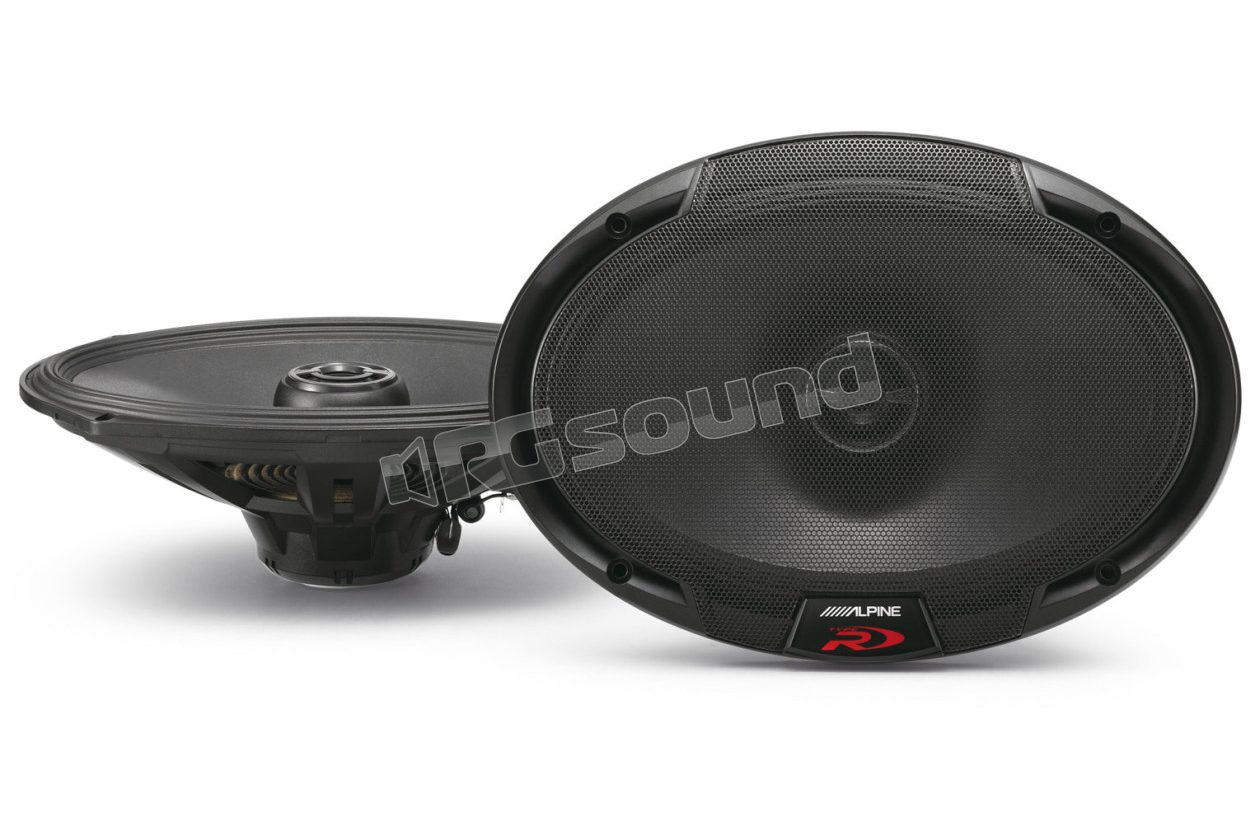

ALPINE SPR-69 - 6x9" (16cm x 24cm) 2-WAY COAXIAL SPEAKER

The Type-R Speakers are designed to handle exceptional power while maintaining extreme clarity and a completely thrilling sound.

The Type-R series includes both coaxial and separate models, both are highly efficient and offer wide installation possibilities in the various vehicles on the market.

Incredibly Powerful Bass
Using some of the technologies from Type-R subwoofers, such as the HAMR Surround, for very long cone excursion, while maintaining maximum control, these speakers deliver deep and powerful bass.

Superb Sound Quality
Type-R speakers use quality components and advanced technical solutions, such as the lightweight and robust multi-layer cone, the Linear Drive magnet and the Dual Gap moving coil that guarantee maximum linearity for excellent sound quality.

Swivel Tweeter
Both Separate and coaxial models feature a swivel ring tweeter, to improve performance even in non-ideal positions. You can point it manually in the desired direction to get the best possible sound image.

Compact, to facilitate installation
Thanks to the powerful yet compact neodymium magnet, the small crossover and the small basket, type-R speakers are much more compact than you might imagine, to be installed in most vehicles on the market.

SPR-69 FEATURES

Tweeter
1′′ (2.5cm) Ring Radiator Tweeter
Large Aluminum Voice Coil
Neodymium Magnet
Swivel Application

Woofer
Hybrid Multi Layer Cone
Linear Drive Technology
HAMR Surround
Large Aluminum Voice Coil
Copper Square Wire
Ultra High Density Neodymium Magnet
Shallow Mounting Design

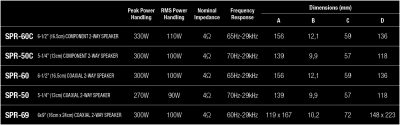

SPECIFICATIONS

Power Specifications
Maximum Power: 300 Watts
RMS Power: 100 Watts

Dimensions
Woofer Mounting Diameter: 148 x 223 mm
Woofer Mounting Depth: 72 mm

General
Frequency Response: 60 Hz - 29 kHz
Impedance: 4 Ohms
Sensitivity: 90 dB/W (1m)

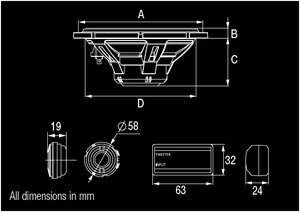

All dimensions are in mm.

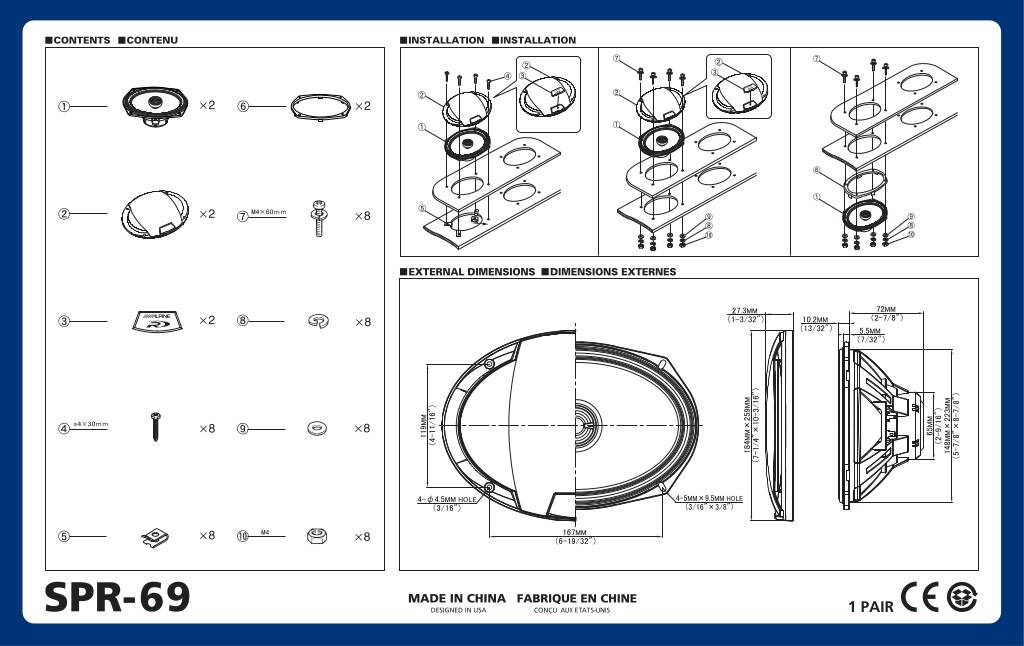

Manuale utente

20110415175922-om-spr-69-en.pdf
Discontinued
