SPR-60C

Alpine

Discontinued

Your price:
€ 279,90
Price per single item (VAT included)
Type
2-way separate kit
Frequency Response
65-29000 Hertz
Woofer Size
165 mm
Tweeter Size
58 millimetri
MAX Power
330 Watt
RMS Power
110 Watt
Sensitivity
88 dB
Impedance
4 Ohm
Woofer Material
Composito di cellulosa
Tweeter Material
Composito di cellulosa

Alpine SPR-60C - 6-1/2" (16.5cm) 2-WAY COMPONENT SPEAKER

The Type-R Speakers included in the SPR-60C kit are designed to handle exceptional power, while maintaining extreme clarity and an entirely exciting sound. The Type-R series includes both coaxial and component models, both are highly efficient and offer ample installation possibilities in the various vehicles on the market.

Incredibly Powerful Bass

Using some of the technologies of Type-R subwoofers, such as the HAMR Surround, for very long cone excursion, while maintaining maximum control, these speakers deliver deep and powerful bass.

Superior Sound Quality

Type-R speakers use quality components and advanced technical solutions, such as the lightweight and robust multi-layer cone, the Linear Drive magnet and the Dual Gap voice coil that guarantee maximum linearity for excellent sound quality.

Compact, to facilitate installation

Thanks to the powerful yet compact neodymium magnet, the small crossover and the small basket, type-R speakers are much more compact than you can imagine, to be installed in most vehicles on the market.

Wave guides concentrate the sound

Alpine has developed a special wave guide for the cone that further improves sound quality. Mounted above the central cap, it prevents distortion of sound waves from the diaphragm and concentrates the sound to achieve maximum clarity (only for SPR-60C / 50C)

Swivel Tweeter

Both Component and coaxial models feature a swivel ring tweeter, to improve performance even in non-ideal positions. You can point it manually in the desired direction to achieve the best possible sound image.

Ultracompact Crossover Design

The Crossover is 75% smaller than previous models, to simplify installation in door panels. It provides four levels of tweeter adjustment to help you achieve the best balance between tweeter and woofer.

SPR-60C FEATURES


Tweeter

1′′ (2.5cm) Ring Radiator Tweeter
Large Aluminum Voice Coil
Neodymium Magnet
Swivel Application
Flush Mount, Surface Mount Application

Woofer
Hybrid Multi Layer Cone
Linear Drive Technology
HAMR Surround
Large Aluminum Voice Coil
Copper Square Wire
Ultra High Density Neodymium Magnet
DX Ring
Wave Guide
Shallow Mounting Desing
Mounting Adapter Kit Included
Bi-Amp Ready Design

Crossover
In-line Network Design
Attenuation Control: 4 Step (0, -2, -4, -6 dB)
High Grade Network Components
Others: Pure Copper Trace-Style Resistance Circuit Board

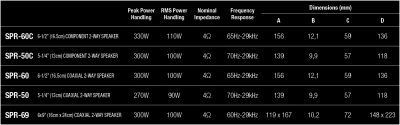

SPR-60C SPECIFICATIONS

Power Specifications

Maximum Power: 330 Watts
RMS Power: 110 Watts

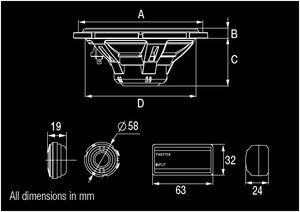

Dimensions

Woofer Mounting Diameter: 136 mm
Woofer Mounting Depth: 59 mm
Tweeter Mounting Diameter: 58 mm
Tweeter Mounting Depth: 19 mm

General

Frequency Response: 65 Hz - 29 kHz
Impedance: 4 Ohms
Sensitivity: 88 dB/W (1m)

All dimensions are in mm.

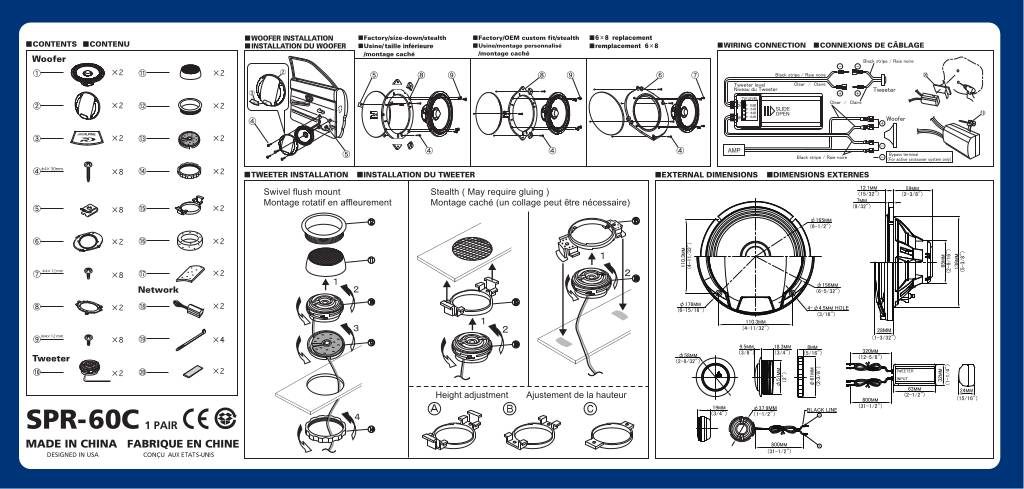

Manuale utente

20110415165603-om-spr-60c-en.pdf

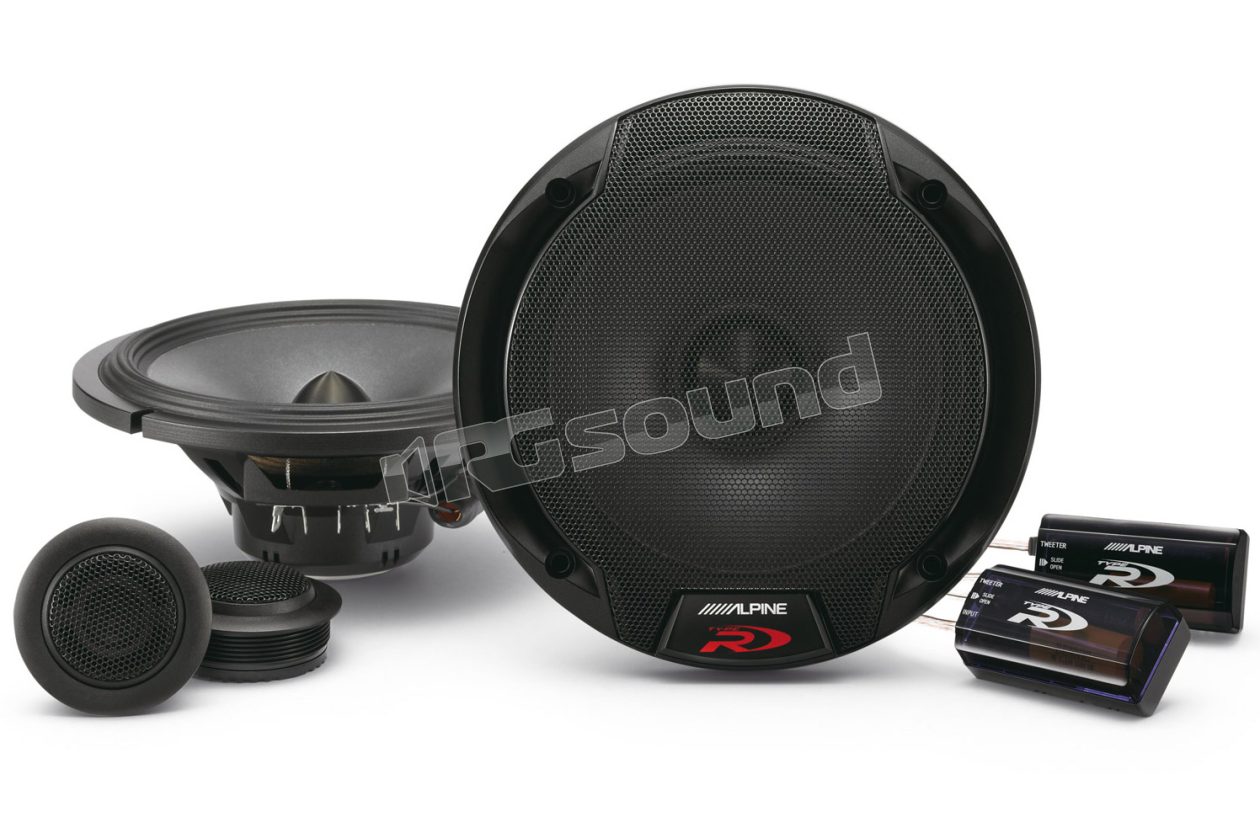

Pair of woofers Pair of tweeters Pair of crossovers
Discontinued
