SPL 6P/K

Tec

Discontinued

Your price:
€ 179,00
Price per single item (VAT included)
Type
2-way separate kit
Frequency Response
60 - 10.000 Hertz
Woofer Size
165 mm
Tweeter Size
48 millimetri
MAX Power
160 Watt
RMS Power
80 Watt
Sensitivity
92 dB
Impedance
4 Ohm
Woofer Material
Cellulosa trattata
Tweeter Material
Neodimio

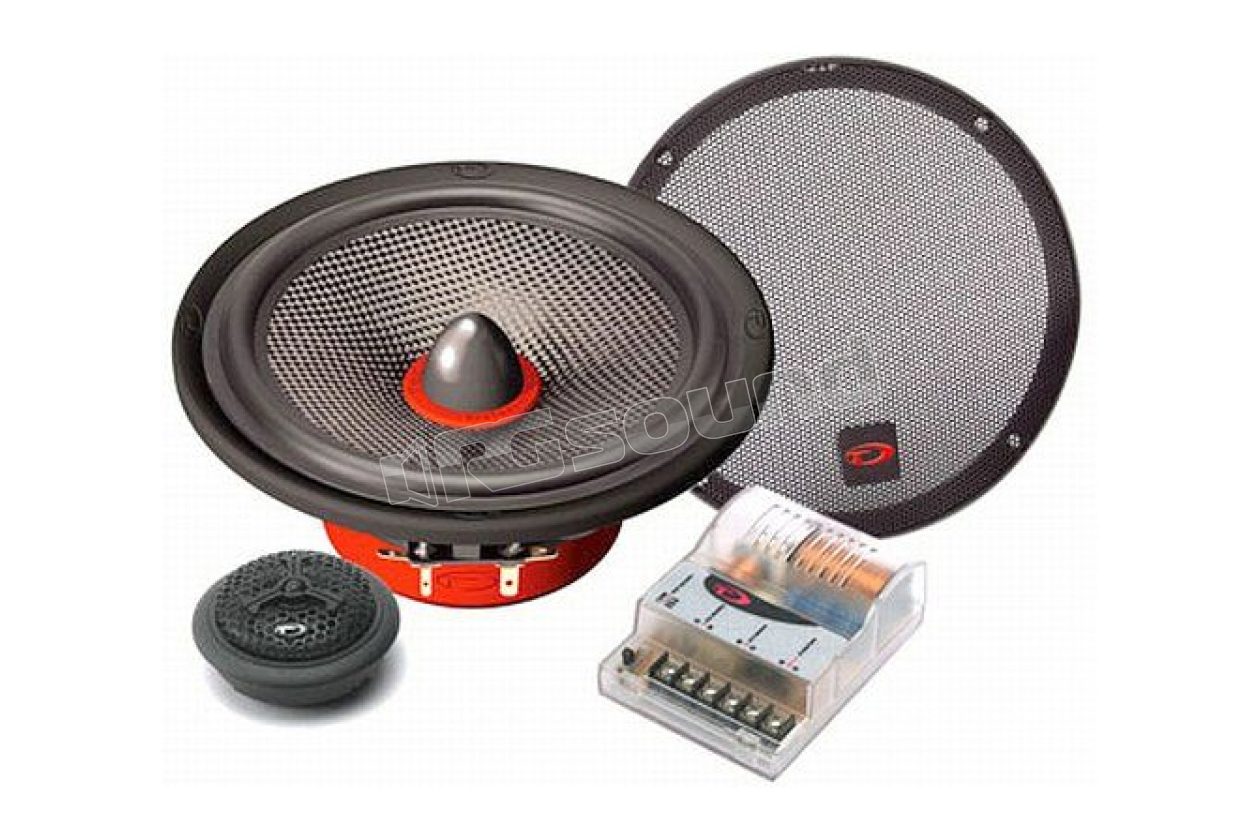

Tec SPL 6P/K 2-way kit with 165 mm woofer, 25 mm tweeter and dedicated crossover.

Tweeters: SPL 25n

  • Power Max: 90 Watt (Pm)
  • RMS Power: 45 Watt (Pn)
  • Nominal Impedance: 4 Ohm
  • Frequency Response: 2.500 ÷ 40.000 Hz
  • Sensitivity: 92 dB (2.83 V/1 m)
  • Resonance Frequency: 1.215 Hertz
  • Voice Coil Diameter: 25.4 mm
  • Double concentric diaphragm (patented), allows wide and detailed polar dispersion
  • Central waveguide (patented), to linearize frequency response
  • Voice coil winding made of a braid of copper and aluminum for high current capacity
  • Neodymium magnet
  • Installation brackets
  • External Diameter: 48 mm
  • Installation Hole: 45 mm
  • Depth: 14 mm

Woofers: SPL 6

  • Power Max: 160 Watt (Pm)
  • RMS Power: 80 Watt (Pn)
  • Nominal Impedance: 4 Ohm
  • Frequency Response: 60 ÷ 5.000 Hz
  • Sensitivity: 89 dB (2.83 V/1 m)
  • Resonance Frequency: 80 Hertz
  • Voice Coil Diameter: 26 mm
  • Cone Construction Material: cellulose
  • TPV Suspension
  • Nylon basket (injected)
  • External Diameter: 165 mm
  • Installation Hole: 141 mm
  • Depth: 66 mm

2-way Crossover

  • Crossover Frequency: 3.000 Hz
  • Slope: 12 dB/oct

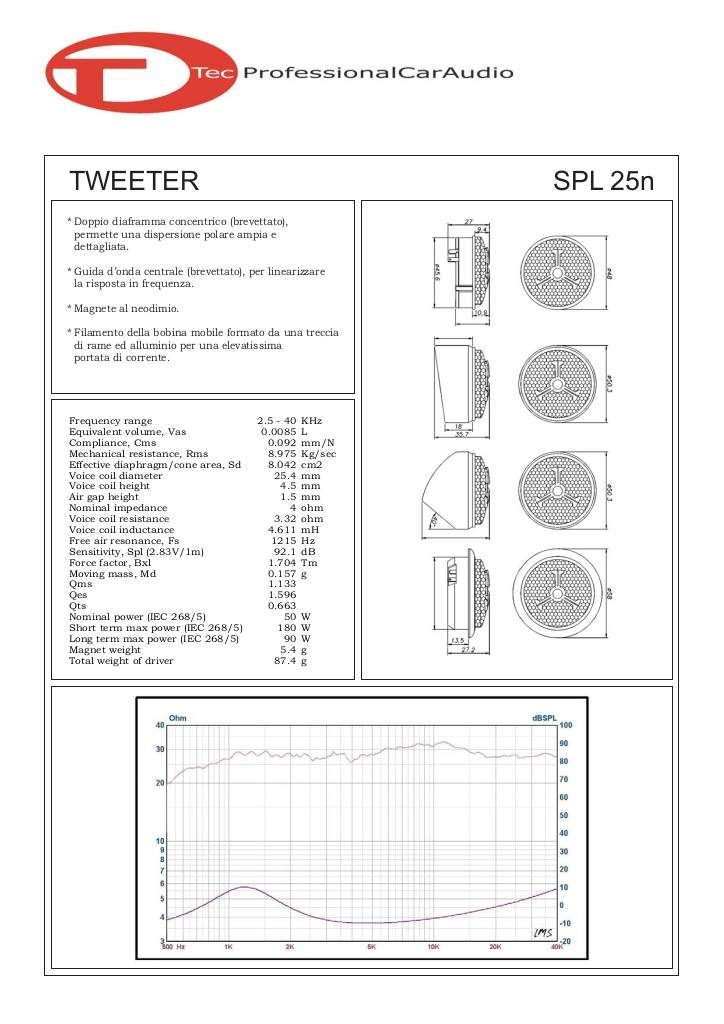

Scheda tecnica tweeter

20120131103250-spl25n.pdf

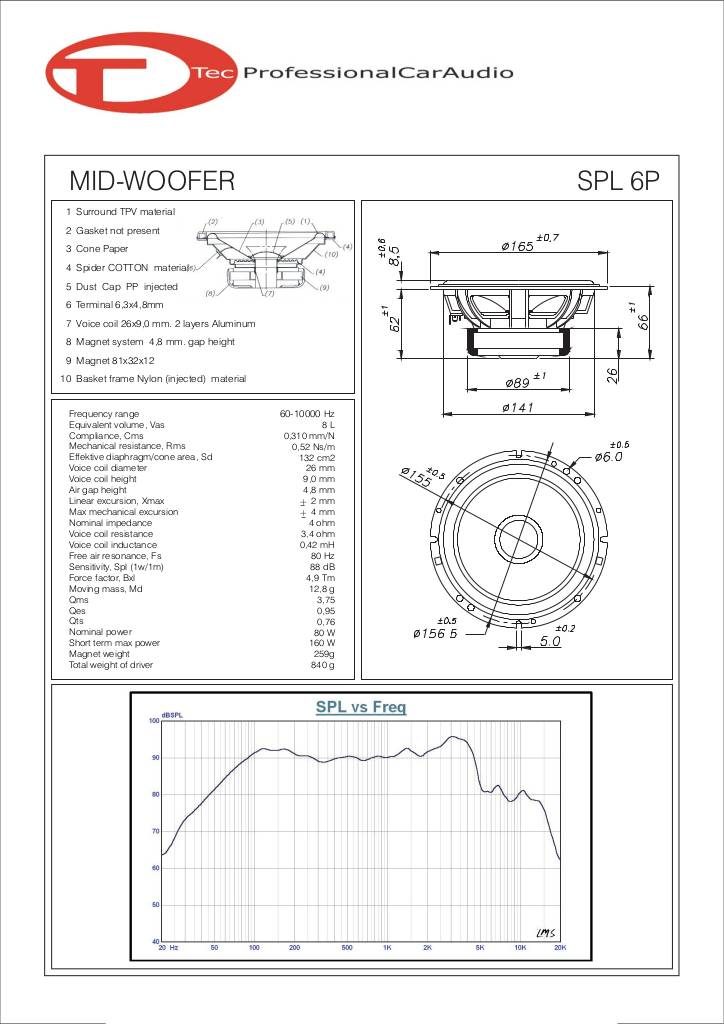

Scheda tecnica woofer

20120131103440-spl6p.pdf

Pair of Woofers Pair of Tweeters Pair of Crossovers
Discontinued
